©2019 Warn Industries, Inc. WARN® and the WARN logo are trademarks of Warn Industries Inc. 4 106532A1

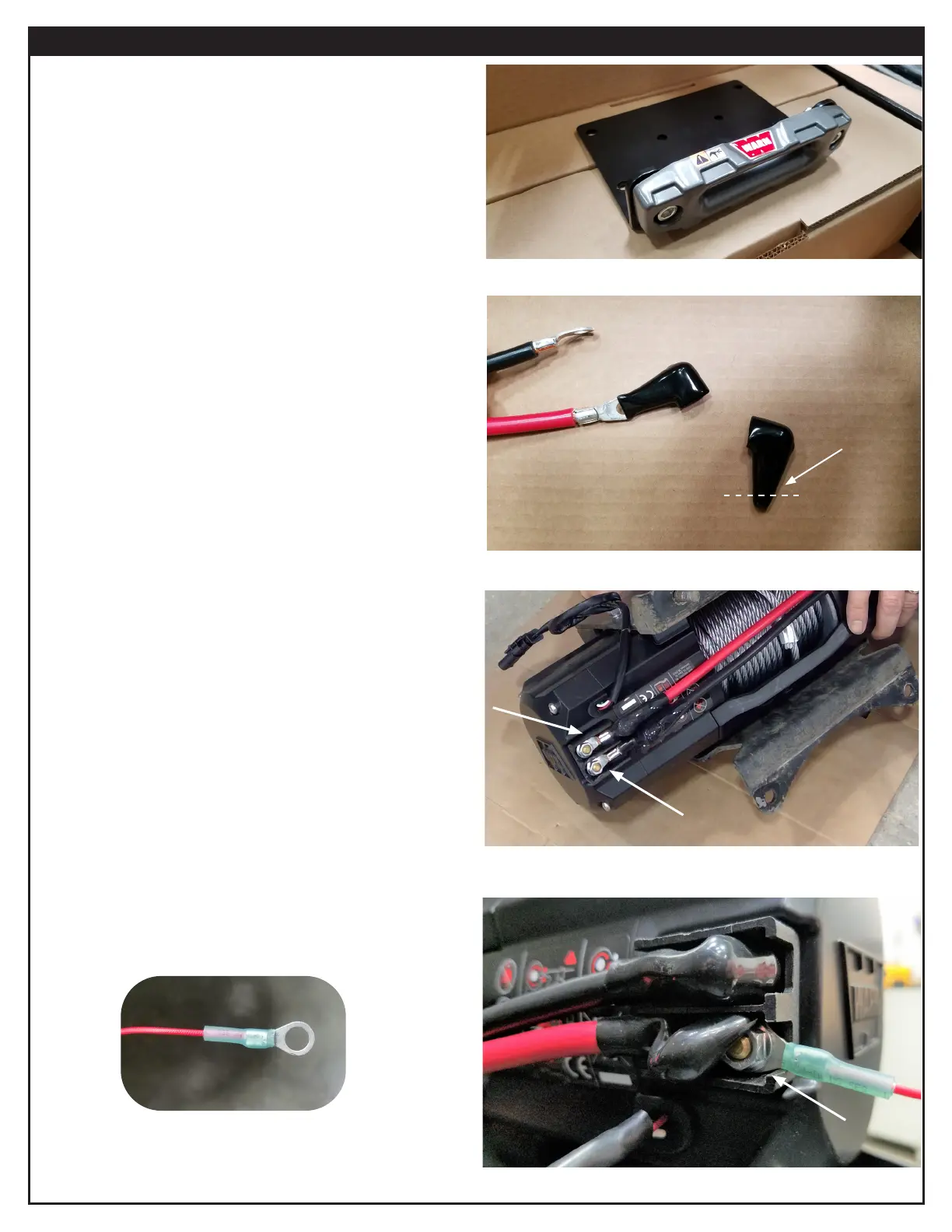

INSTALLATION INSTRUCTIONS
1. Mount the fairlead to the fairlead mounting plate (A2)
using the hardware from the winch kit.
NOTE: Depending on your winch kit, your fairlead may
look different than image shows.
2. Install terminal boots to ends of the red and black power
cables. NOTE: For easier install, you may want to trim a
very small amount o the cable side of the boot (narrow
opening).
3. Using a 10mm socket, attach the booted end of the
red and black power cable to the winch power posts.
NOTE: red cable to the positive (+) and black cable to the
negative (-) post.
4. Locate the stripped red wire on the remote socket
harness from your winch kit.
5. Crimp a ring terminal onto the red wire and attach to the
winch positive (+) terminal.
Figure 1
Figure 2
Figure 3
Figure 4
