©2019 Warn Industries, Inc. WARN® and the WARN logo are trademarks of Warn Industries Inc. 7 106532A1
INSTALLATION INSTRUCTIONS

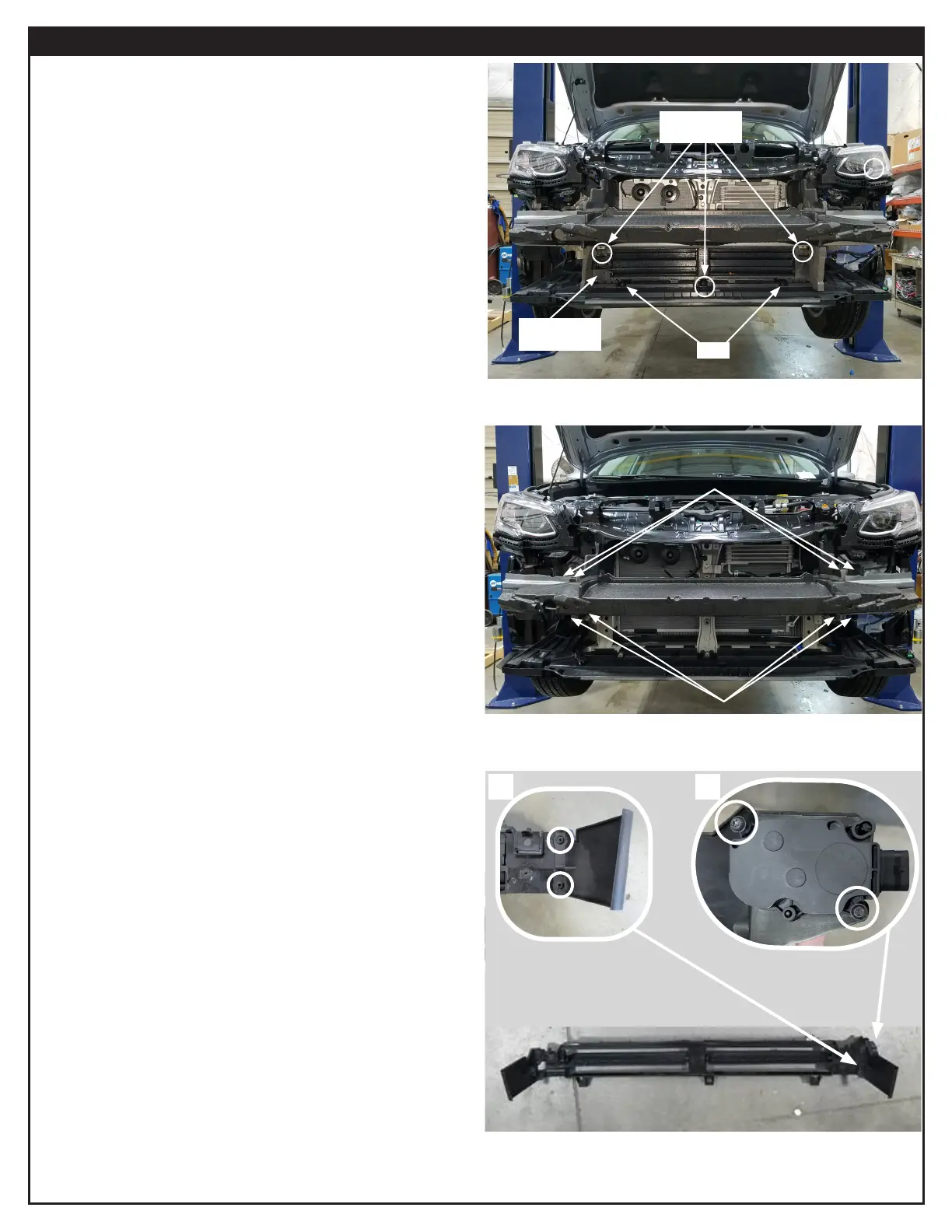

18. Unclip the temperature sensor by squeezing the tabs on
the back.
19. Unplug the shutter motor on the driver side.
20. Remove the three bolts securing the grille shutter with a
10mm socket.
21. Unsnap the two clips at the lower corners of the grille
shutter by rmly pulling out on the ducting.
22. Remove the grille shutter and lay on a at, stable
surface.
23. Using a 12mm socket and extension, remove the 8 bolts
securing the bumper beam to the vehicle.
24. Lift up on beam and remove completely. Save hardware
for later use.
25. With the grille shutter on a at and stable surface:
a. Remove the ap by drilling or breaking the two
plastic rivets.
b. Remove the shutter motor from the assembly by
removing the two screws with a T-20 Torx driver.
NOTE: Do not let shaft rotate after removal.
Figure 12
Figure 14
Temperature
sensor
Clips
Shutter Bolts
a. b.
Figure 13
To Next Page
