INSTALLATION INSTRUCTIONS

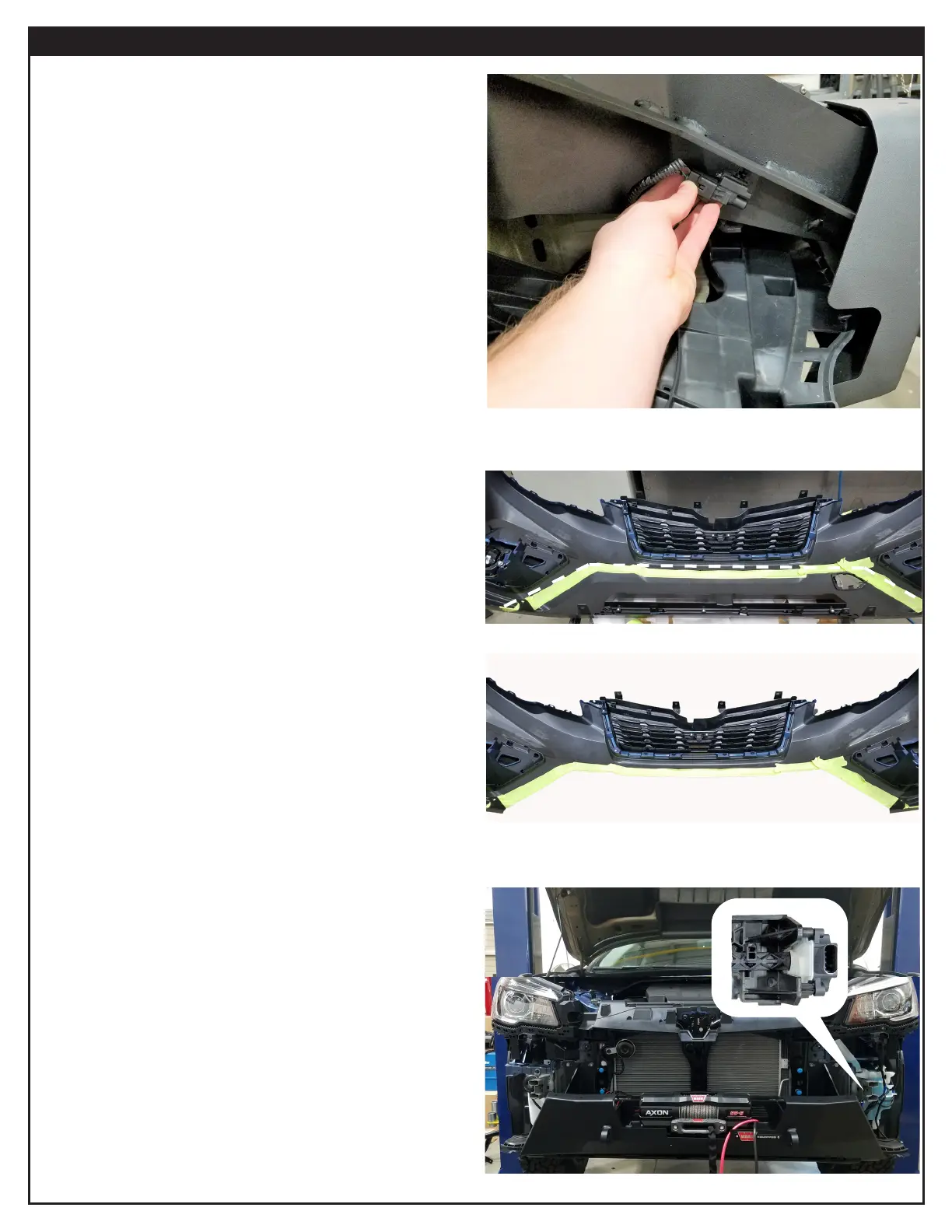

Figure 19
Figure 20
Figure 21
33. Reinstall temperature sensor into the slot provided on
the top passenger side.
34. With the bumper cover on a padded, stable surface and
the inside facing out, use tape to outline the area to be
removed (as shown).
35. Carefully use a pneumatic reciprocating saw or similar to
cut the plastic where marked. NOTE: It can be helpful to
cut a smaller portion out for the rst cut and ne tune the
cut after test tting. The edges can be smoothed with a
le or sanding disc.
36. With the mounting kit installed, plug in the shutter
motor and shaft assembly and secure to vehicle with zip
ties, make sure the shaft is free to rotate.
Figure 18
To Next Page
