Warn 70770 - Anchor Chain Attachment; Securing Chains to the Anchor Plate

PAGE 4 85553 Rev. A0
Using the Portable Anchor Plate Anchors
Anchor Chain Attachment to Plate

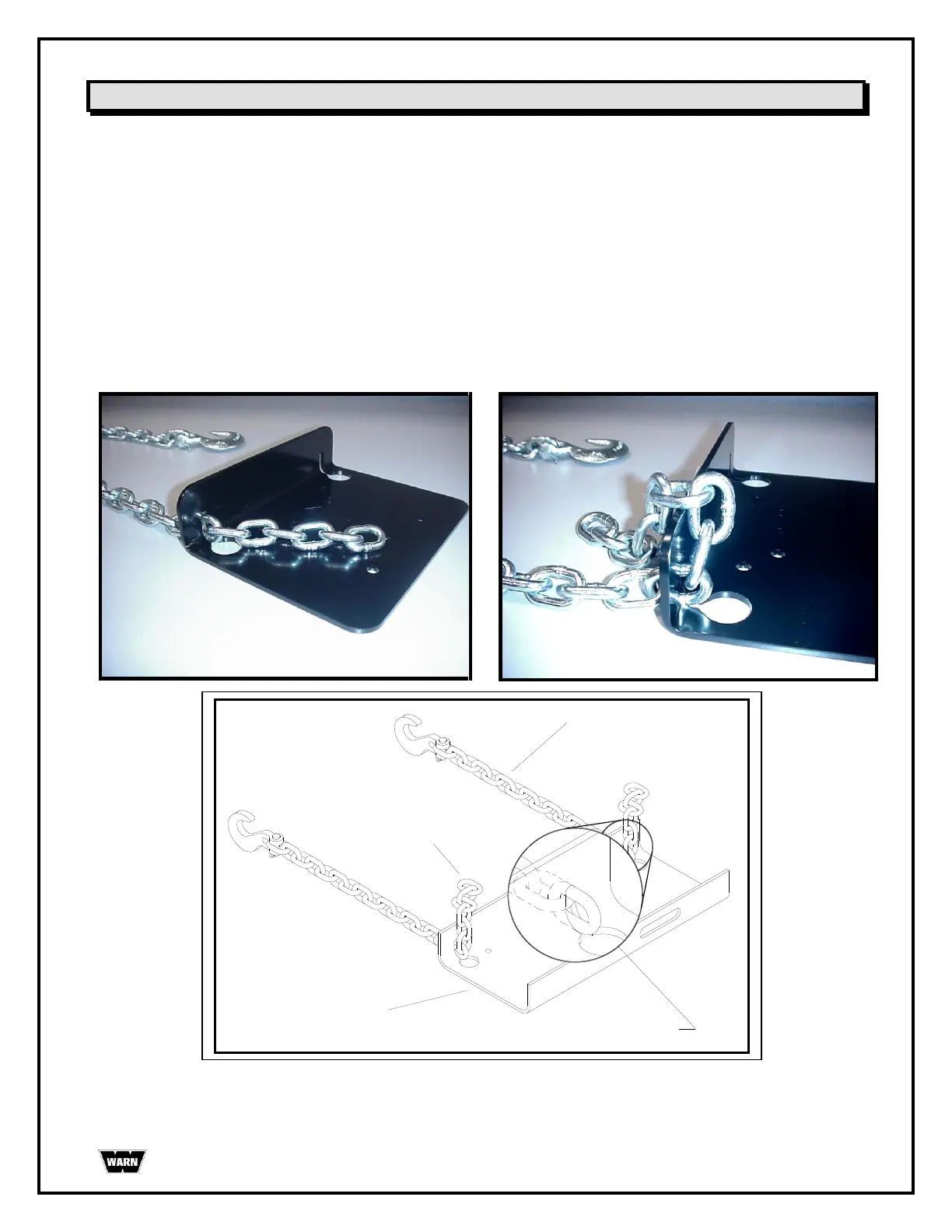

Attach each of the two chains as follows:
 Thread at least six chain links through one of the two large holes in the winch mounting plate. (Fig. A)
 Engage a chain link into the mounting plate key slot. (Fig. A)
 To hold the engaged chain link in place, drape the threaded chain links over the edge of the mounting
plate. During operation, tension will hold the engaged chain link in place. (Fig. B)
Key slot engagement
6 chain links
Mounting plate
High test chain
Fig. A
Fig. B
