WARN® INDUSTRIES PAGE 10 72171 Rev A0

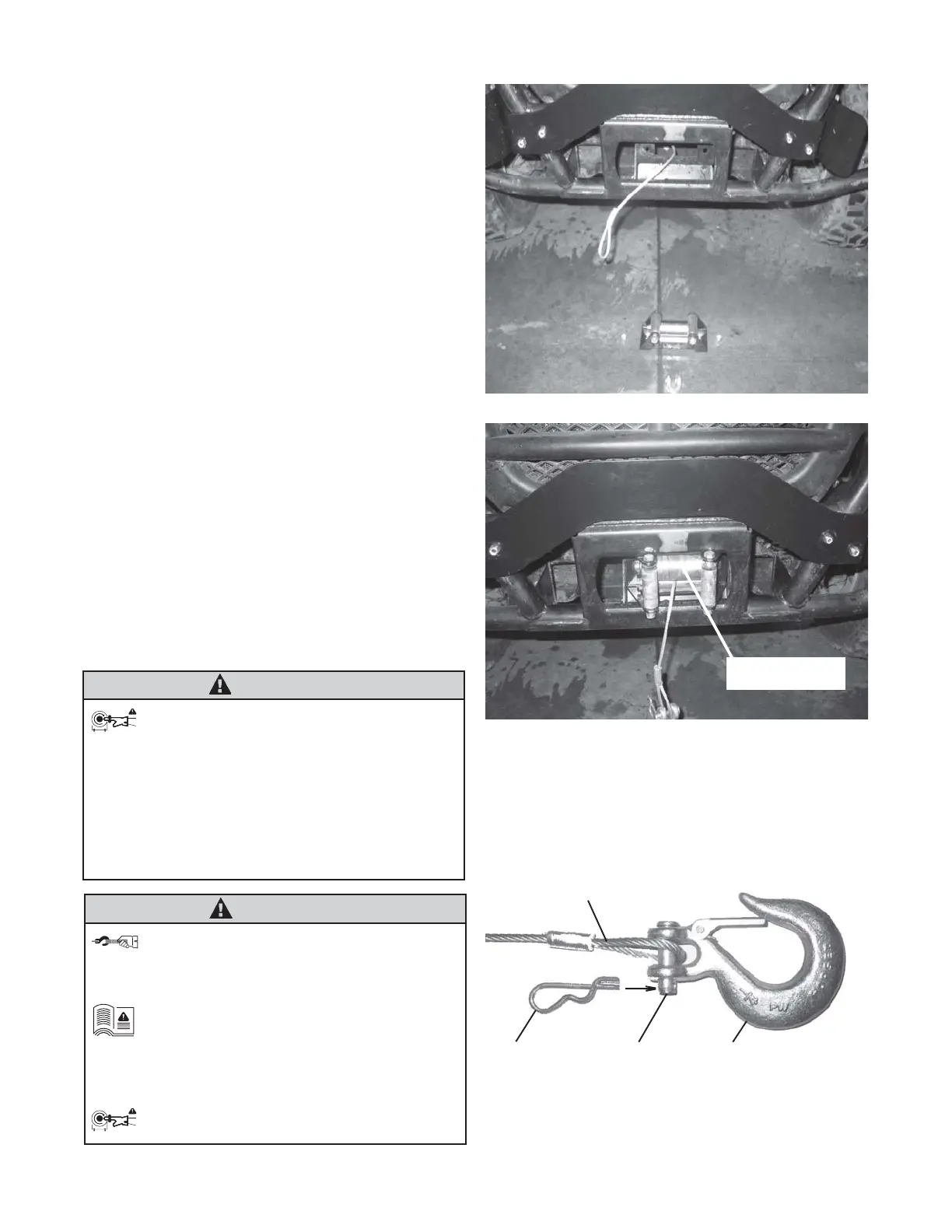

13. If winch fairlead is already installed, remove and
replace with the plow roller fairlead. Removal of
the hook from the cable is necessary for this step.
See Figure 18.
14. Install the plow roller fairlead positioned with the
larger roller on top. Use the 3/8” x 1” long carriage
bolts, thick spacer washers and 3/8” nylon lock
nuts. Spacers to be located between fairlead
assembly and mounting flange on bumper. See
Figure 19.
Figure 18 Replace winch fairlead with plow fairlead.
Figure 19 Plow fairlead installed with large roller up.
Do NOT operate the winch when routing
the cable in or out of the rollerfairlead.
Operating the winch without the hook
and hook strap can cause extreme bodily
injury to the extremities such as the
hands and fingers. The winch needs to
be off and switched to freespool when
handling the winch cable without the
hook.
WARNING
Figure 20 Install grip clip onto winch hook
Grip clip
Winch hook
Winch cable
Clevis pin
WARNING
Do NOT operate the winch without the
winch hook properly installed. ALWAYS
use a hook strap on the end of the hook
when pulling or spooling the winch
cable, and ALWAYS follow the winching
techniques as described in the winch
guide supplied with your winch.
Operating the winch without the hook
and hook strap can cause extreme bodily
injury to the extremities such as the
hands and fingers.
Large Roller Up
