WARN® INDUSTRIES PAGE 17 72171 Rev A0
34. Install retainer plate slot over tab on plow support
and push down to engage tab. Retainer plate
holes should now be in alignment with 1/4” bolts.
See Figure 35.
35. Push bolts back through latch bracket and
retainer plate. See Figure 36.
36. Terminate the ends of the bolts with two 1/4” dia
nylon lock nuts and 1/4” flat washers. See Figure
37. Tighten just snug and then loosen 1/8-1/4
turn. The stand should move freely up and down
on the support. If stand does not move freely
then loosen additional incremental amounts. Until
latch and stand move freely. Repeat from step
29-36 for other side.

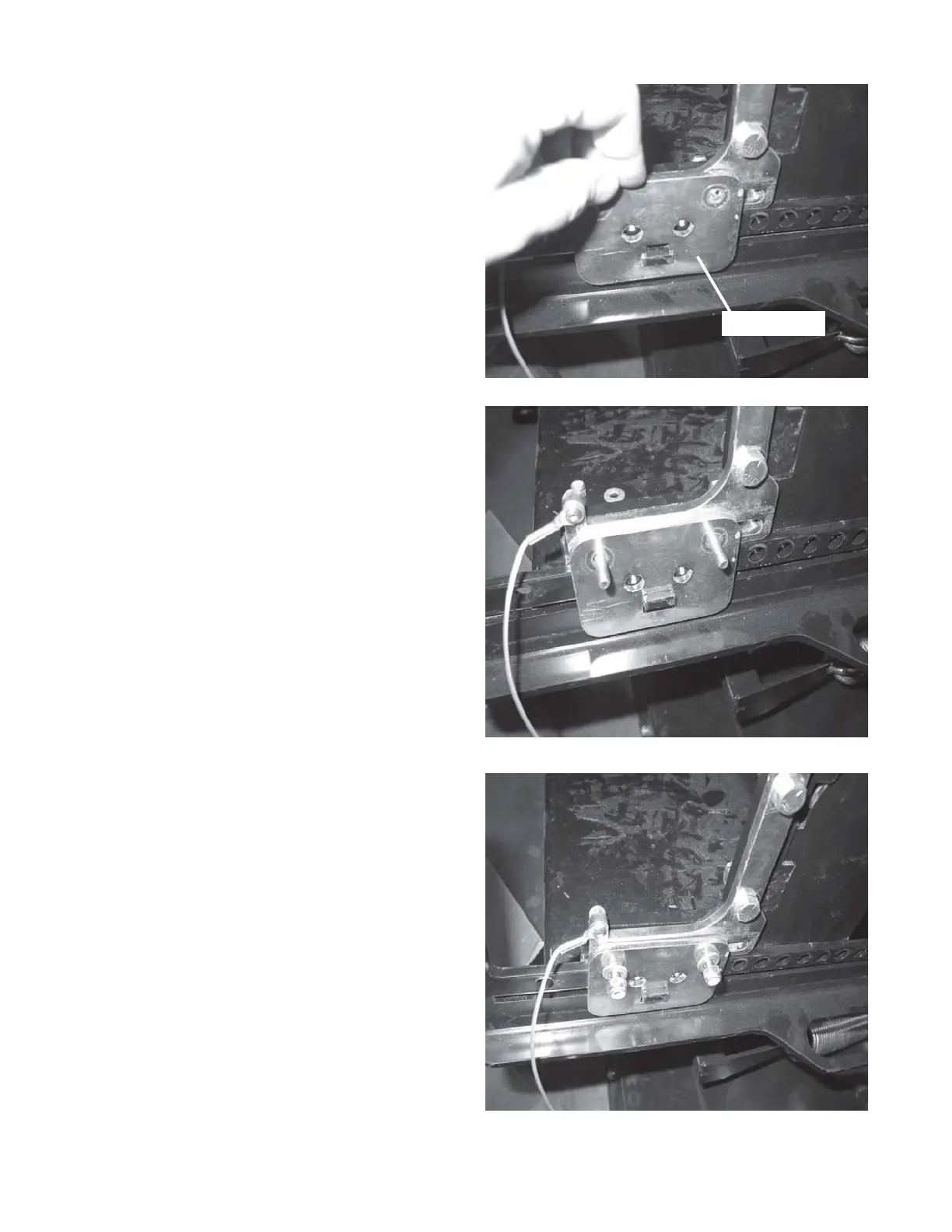

Figure 35 Install retainer plate to plow support tab and engage
Figure 36 Push 1/4” bolts back through
Figure 37 Install 1/4” washers and nuts
Retainer Plate
To Next Page
