WARN® INDUSTRIES PAGE 16 72171 Rev A0
31. Install from the inside two 1/4” dia x 1-1/2”
long bolts through the plow support and latch
assembly. See Figure 32.
32. Install 1/4” inner dia x 1/4” long spacers on
each of the 1/4’ bolts making sure that the
spacers are fully engaged in the slot of the
latch assembly. See Figure 33.
33. Carefully push bolts back through until they
are flush with the latch bracket. See Figure
34.

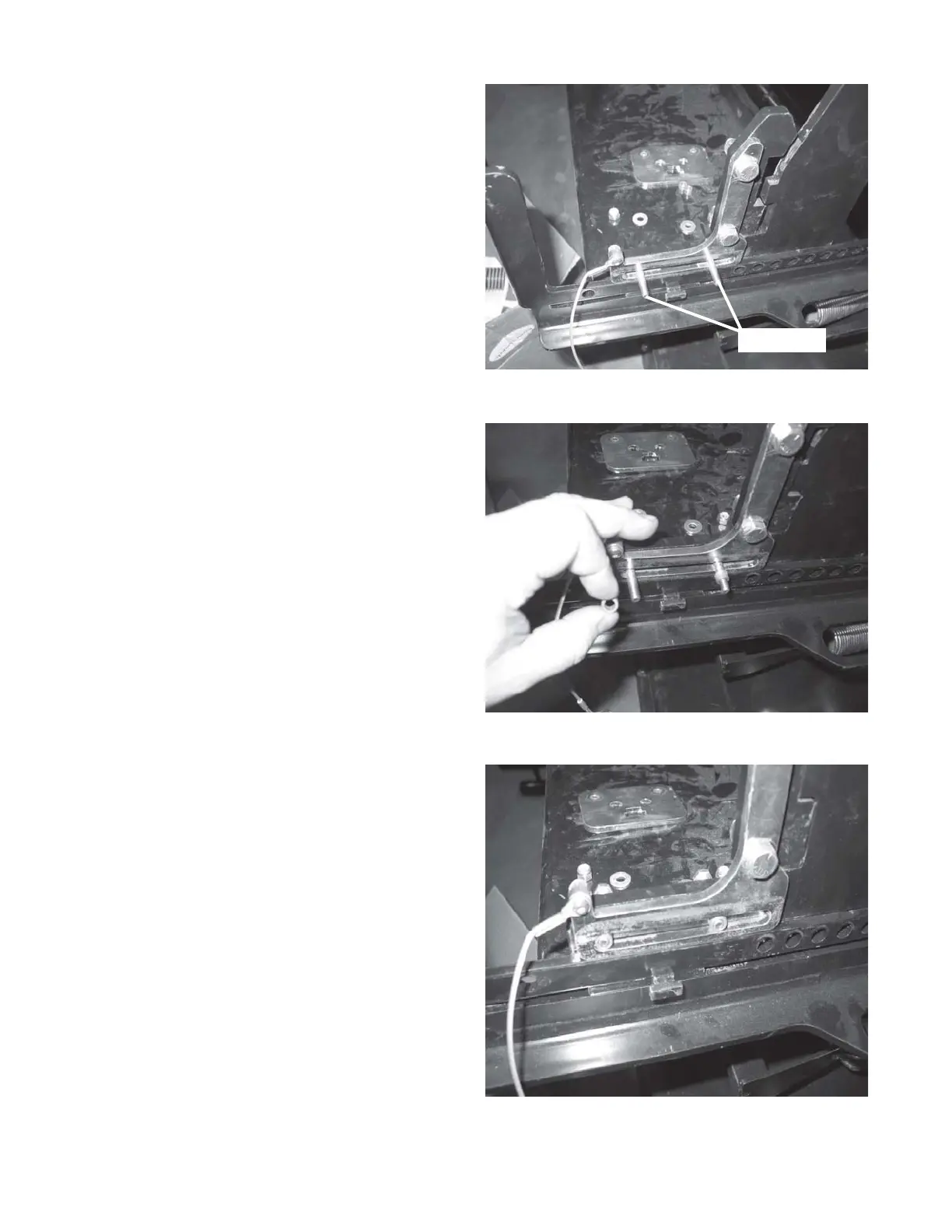

Figure 32 Install 1/4” bolts
Figure 33 Install spacers on 1/4” bolts
Figure 34 Push 1/4’ bolts and spacer back flush
1/4” Bolts
To Next Page
