WARN INDUSTRIES PAGE 10 84855A2
Trim Skid Plate

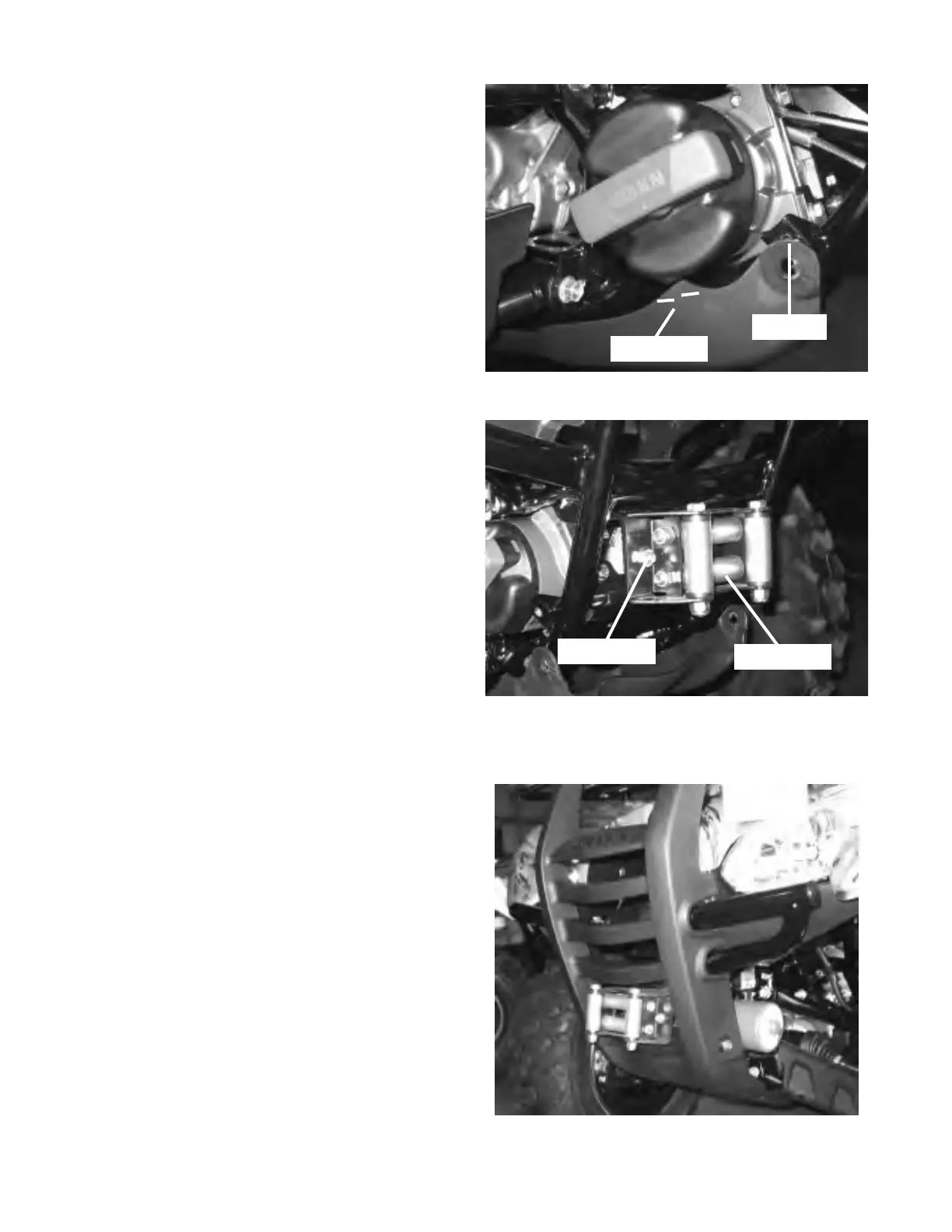

Figure 19 Skid Plate Trim Location
6mm Bolt
Roller Fairlead
10mm Bolts
Figure 20 Roller Fairlead Installation
Figure 21 Front Fascia Reinstalled
19. Trim the plastic skid plate for winch clutch dial
clearance, gure 19. Skid plate should not touch
the dial when the 6mm mount bolt is installed.
20. Install the roller fairlead using the two 10mm bolts,
lock washers, and nuts supplied with the winch,
gure 20.
21. Reinstall the plastic radiator panel removed in step
7. Move the front plastic fascia into position over
the roller fairlead, gure 21. Reinstall the two side
6mm bolts removed in step 2 and the four 6mm
skid plate bolts removed in step 3. Tighten the
6mm bolts to a recommended torque of 12 N-m
(9 ft-lb). Reinstall the two plastic rivets removed in
step 1.
