17. Position the winch on the brackets to maximize
the clearance between the motor terminals and
the adjacent bumper or frame members, gure 16
and gure 17.
18. Tighten the four winch bolts to a recommended
torque of 17 N-m (12 ft-lb), gure 18. Remove
the small tie bolt. This bolt should be retained
for winch service. Reinstall the two 6mm bolts
removed in step 4. Tighten the six 8mm bumper
bolts, and the four 6mm bolts to a recommended
torque of:
6mm bolts - 12 N-m (9 ft-lb)
8mm bolts - 37 N-m (27 ft-lb)
Terminal Boot

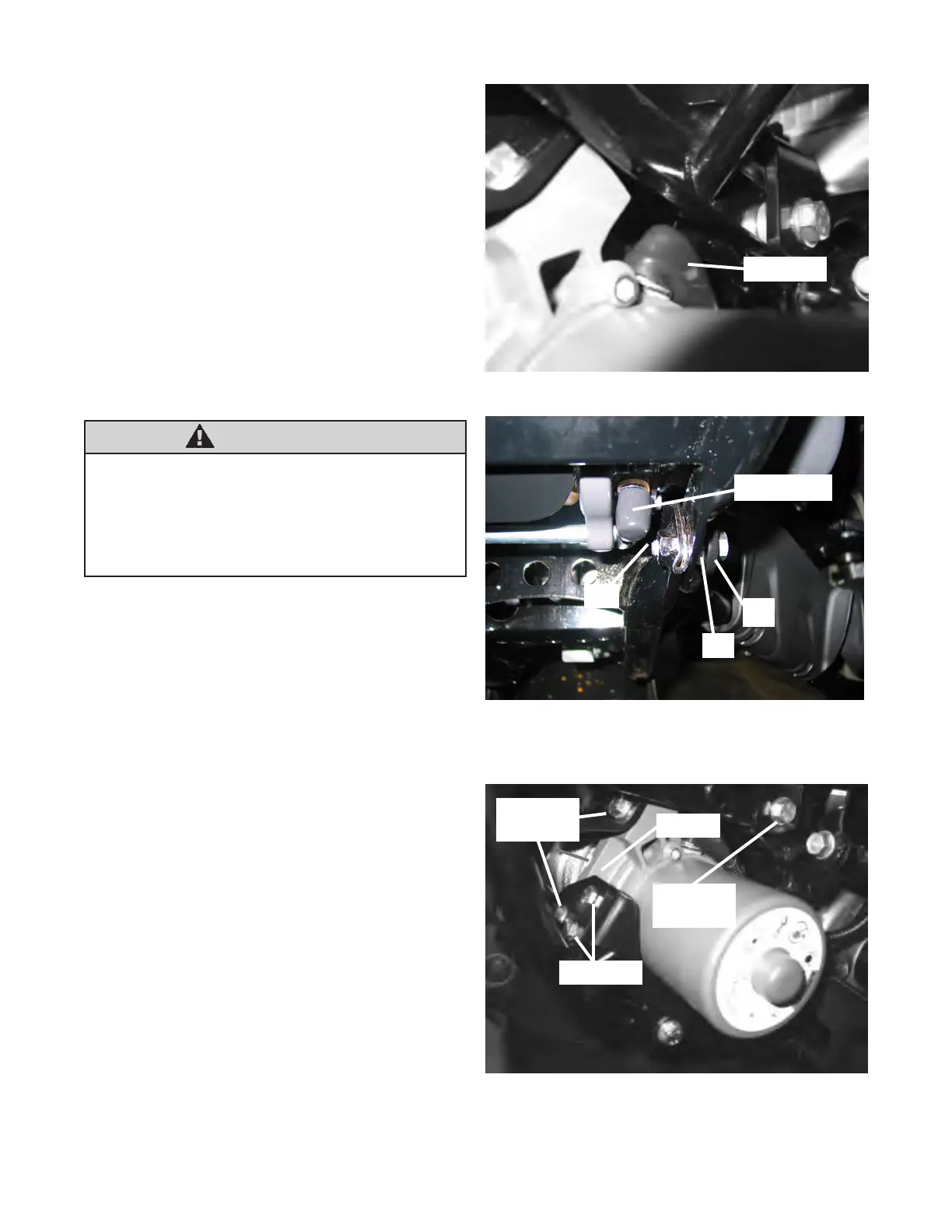

Figure 16 Upper Motor Terminal Clearance
Figure 17 Lower Motor Terminal Clearance
WARNING
Winch must be positioned such that no
fasteners, frame members, or other objects
may come in contact with the motor terminals
and motor terminal boots. Failure to do so can
result in product failure which can lead to vehicle
damage and operator injury or death.
Winch Bolts
(both sides)
8mm Bolts
(both sides)
6mm Bolts
Figure 18 Winch and Mount Bolts
Tie Bolt
B1
B5
A3
Terminal Boot
