©2016 Warn Industries, Inc. WARN® and the WARN logo are trademarks of Warn Industries Inc. 4 98271A1

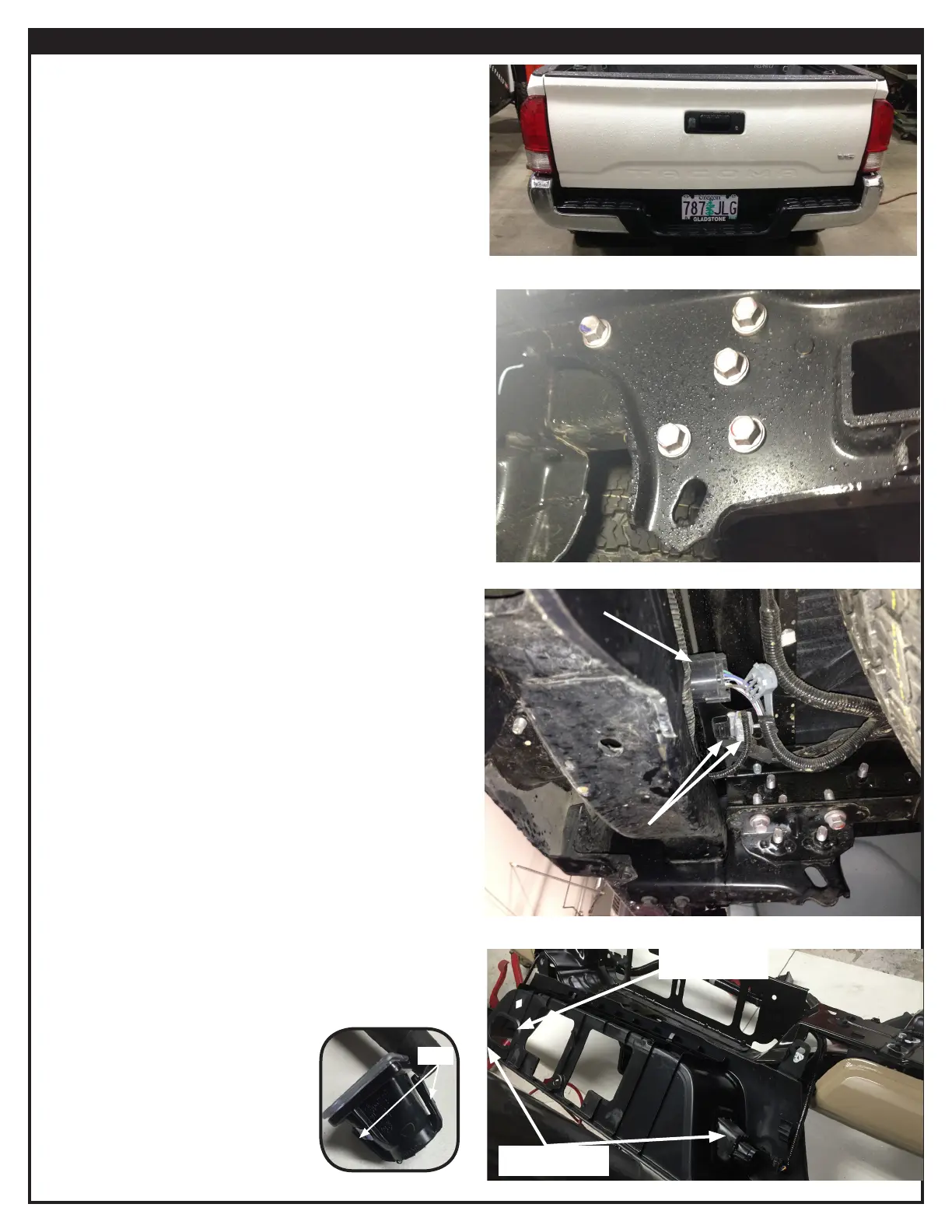

INSTALLATION INSTRUCTIONS
1. Remove license plate.
2. Remove all ve bumper frame bracket bolts on each side of
vehicle. Keep the bolts as you will be reinstalling in a later
step.
3. Unclip the trailer harness receptacle, by squeezing the two
tabs together and push outward.
4. Remove the bumper and place on at surface.
5. Remove the trailer plug receptacle (shown already removed).
6. Remove the license plate lamps by
twisting the bulb holder to unplug
then squeeze the two tabs and remove
the lamp housing from the bumper.
Figure 1
Figure 2
Figure 3
Trailer Plug
License Plate
Lamps
Tabs
Figure 4
To Next Page
