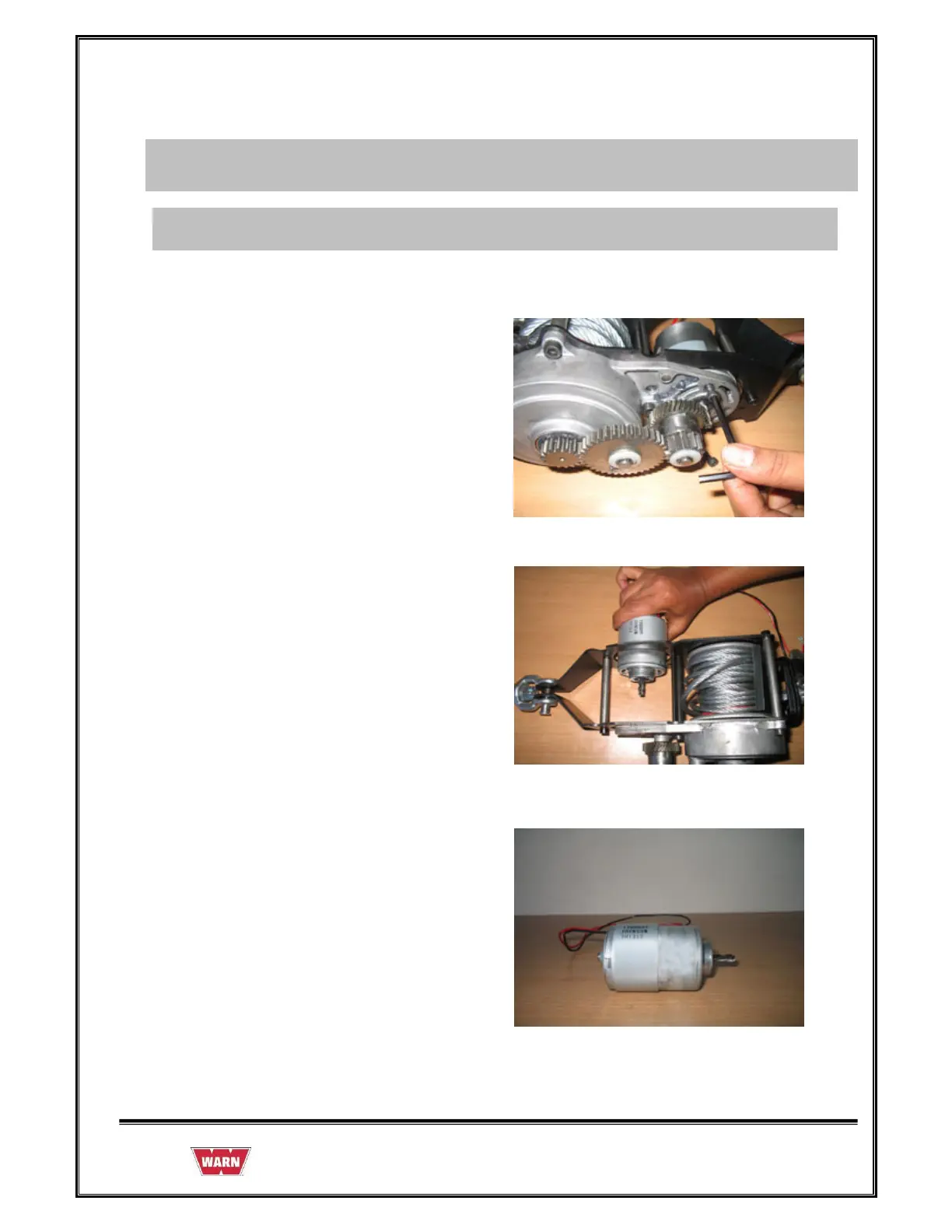

2.4 MOTOR
2.4.1 REMOVAL OF MOTOR
Before removing the Motor follow the below instructions:
1. Remove the Motor Assembly from the
End Housing by removing the 2 screws
(M5 x .8 x 12), Qty 2 from the casting
securing the Motor using a 4mm Allen
Wrench.
2. Tap the motor with dead blow hammer to
remove the Motor Assembly remove
from the Chassis assembly.
3. After removal of the Motor assembly
from the Chassis, keep the Motor
assembly on the work bench.
