18.1.3 Four-engine installations

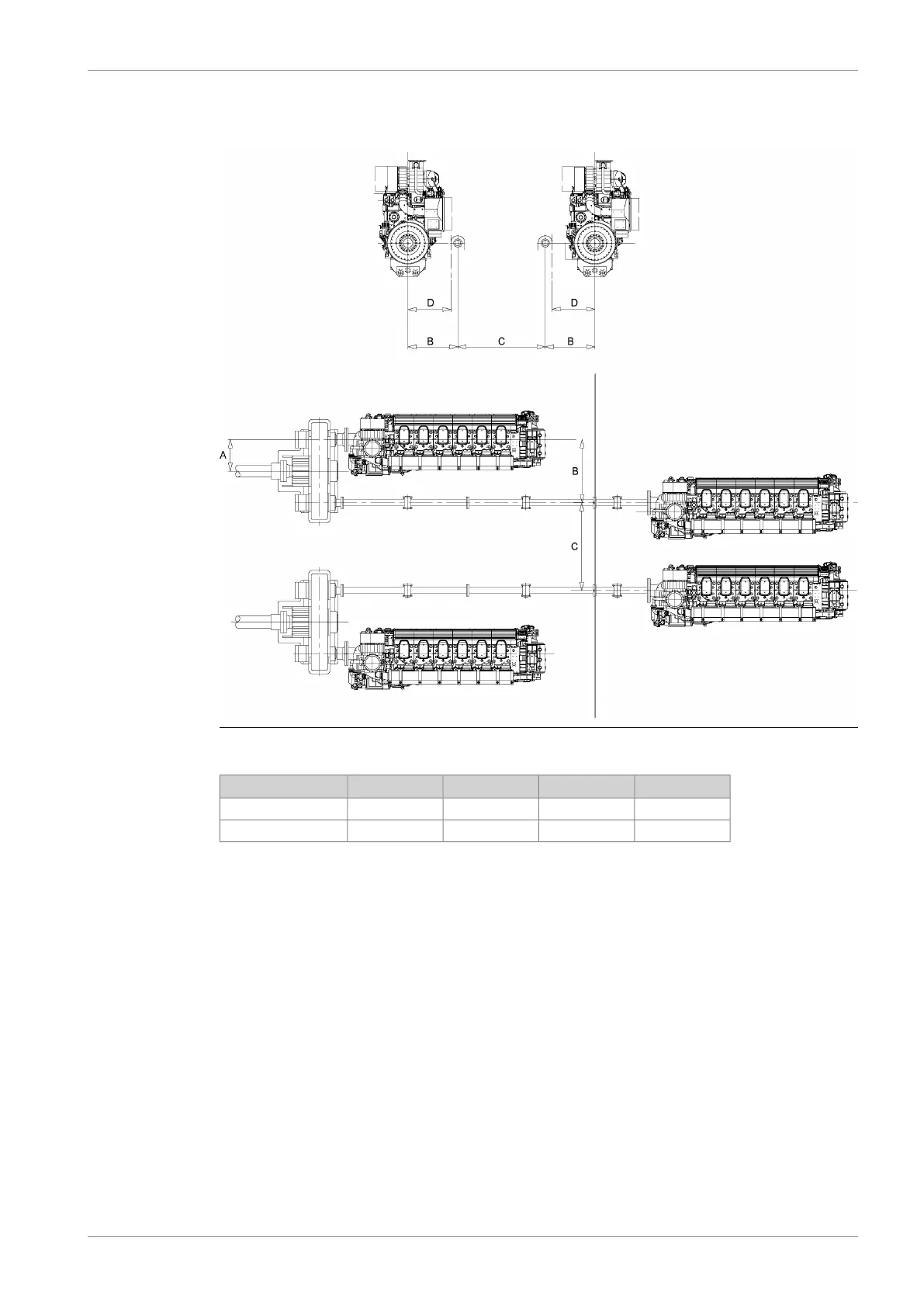

Fig 18-3 Main engine arrangement, 4 x L46F (DAAE045069)
D [mm]
1)
C [mm]B [mm]A [mm]Engine type
18503400210010506L46F
18503700225010507L, 8L, 9L46F
1)
Minimum free space.
Intermediate shaft diameter to be determined case by case.
Dismantling of big end bearing requires 1500 mm on one side and 2300 mm on the other side.
Direction may be freely chosen.
