Wascomat Selecta S28/125 - Page 11

Technical data
4
S28/125 S28/185
mm inches mm inches
A 1196 47 1/16 1315 51 3/4
B 465 18 5/16 540 21 1/4
C 745 29 5/16 829 32 9/16
D 915 36 960 37 13/16
E 205 8 1/16 205 8 1/16
F 160 6 5/16 160 6 5/16
G 1040 40 15/16 1160 45 5/8
H 1035 40 3/4 1155 45 1/2
J 100 3 15/16 100 3 15/16
K 270 10 5/8 260 10 1/4
L - - 295 11 9/16
M - - 1215 47 13/16
N 1135 44 11/16 1255 49 7/16

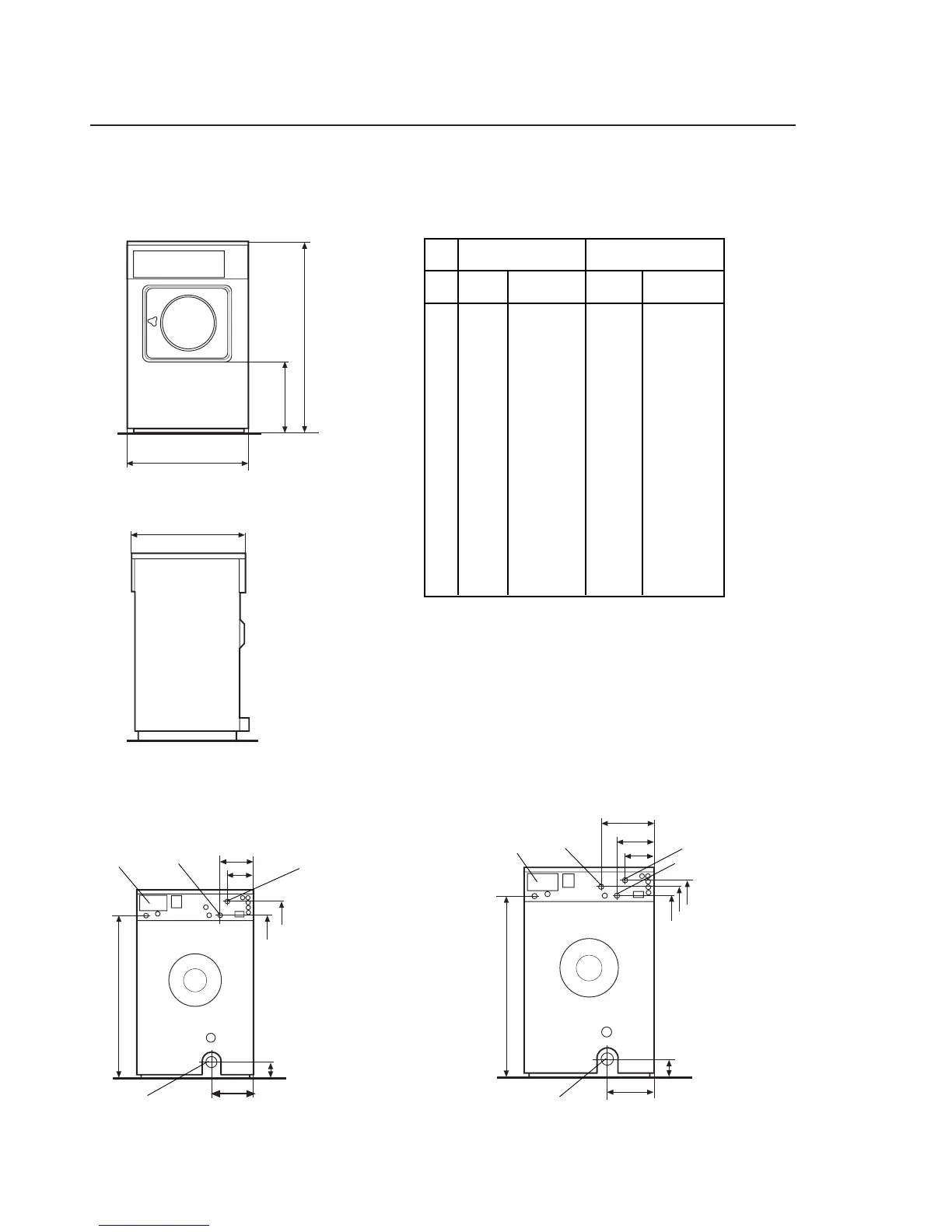

Outline and dimensions
S28/125 S28/185
1852b
1. Drain outlet
2. Electrical connections
3. Cold water inlet
4. Hot water inlet
A
B
C
D
2
4
3
1
K
J
H
N
E
F
G
K
1
J
G
H
M
N
L
E
F
2
4
3
4
