Cut to fit
on tube
2
1
Multi-rubber ring
20
3647
21
3641
3643
21
Fig.
20
Fig.
21

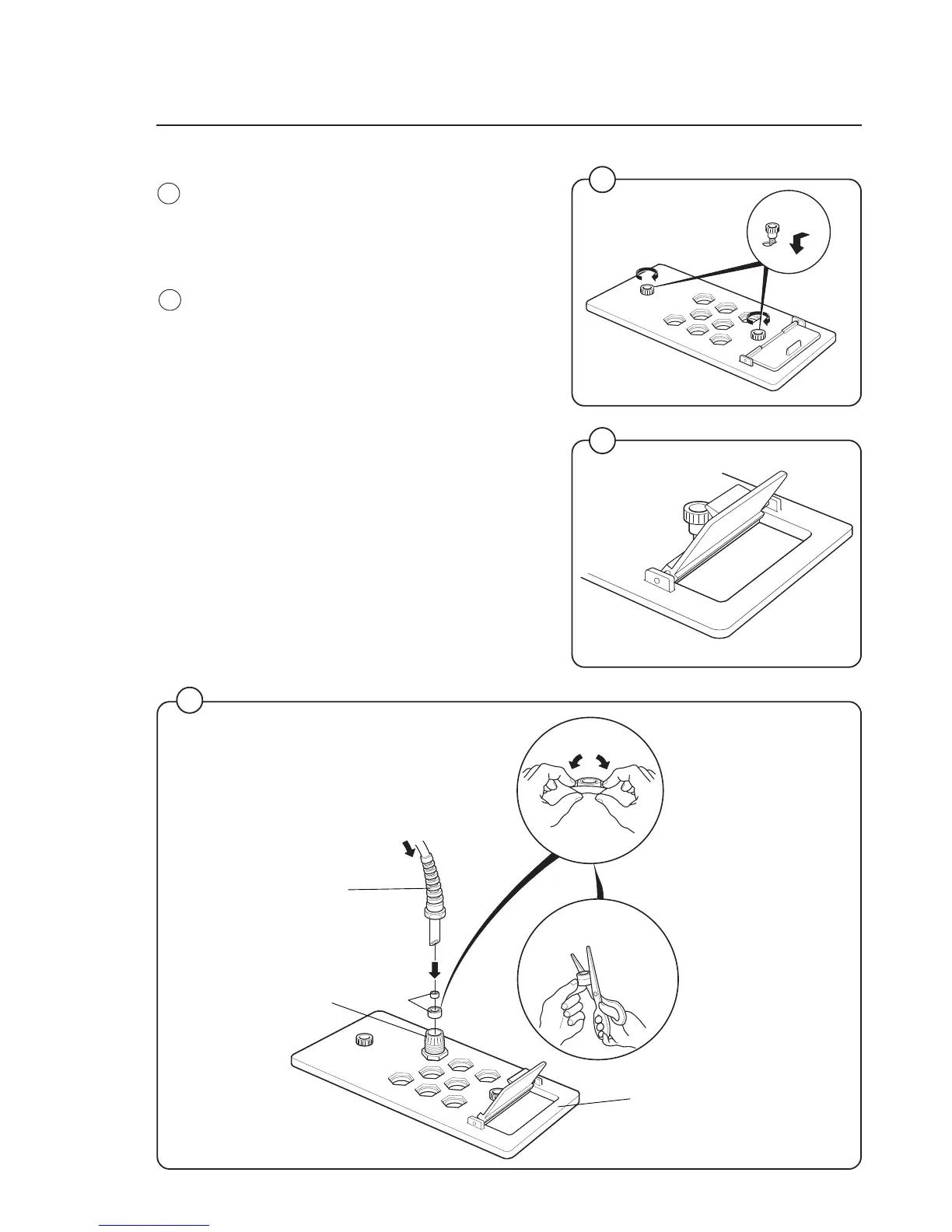

1. Drop the knob into the larger opening in the
supply injector manifold.
2. Tighten securely. Do not overtighten!
Do not use pliers or other tools to tighten the
knobs!
1. Select the correct size rubber ring which will fit
snugly on the chemical tube you are using.
Ring A is used for tubes with Ø 5/16" (8mm).
2. Use scissors or a razor to carefully cut out the
proper size rubber ring. Wrap the rubber ring
around each tube after threading each tube
through the plastic strain relief. Run the tube
through the compression nut to the bottom of
the soap box compartment. Cut the end of the
tube at an angle. Hand tighten the strain relief
on to the compression nut.
This separate lid allows the addition of powder
detergent in compartment 1.
1
Manifold
Compression nut
A
B
Rubber
rings
Strain relief
Installation 11
