Installation
10
1
2
19
3648
18
3649

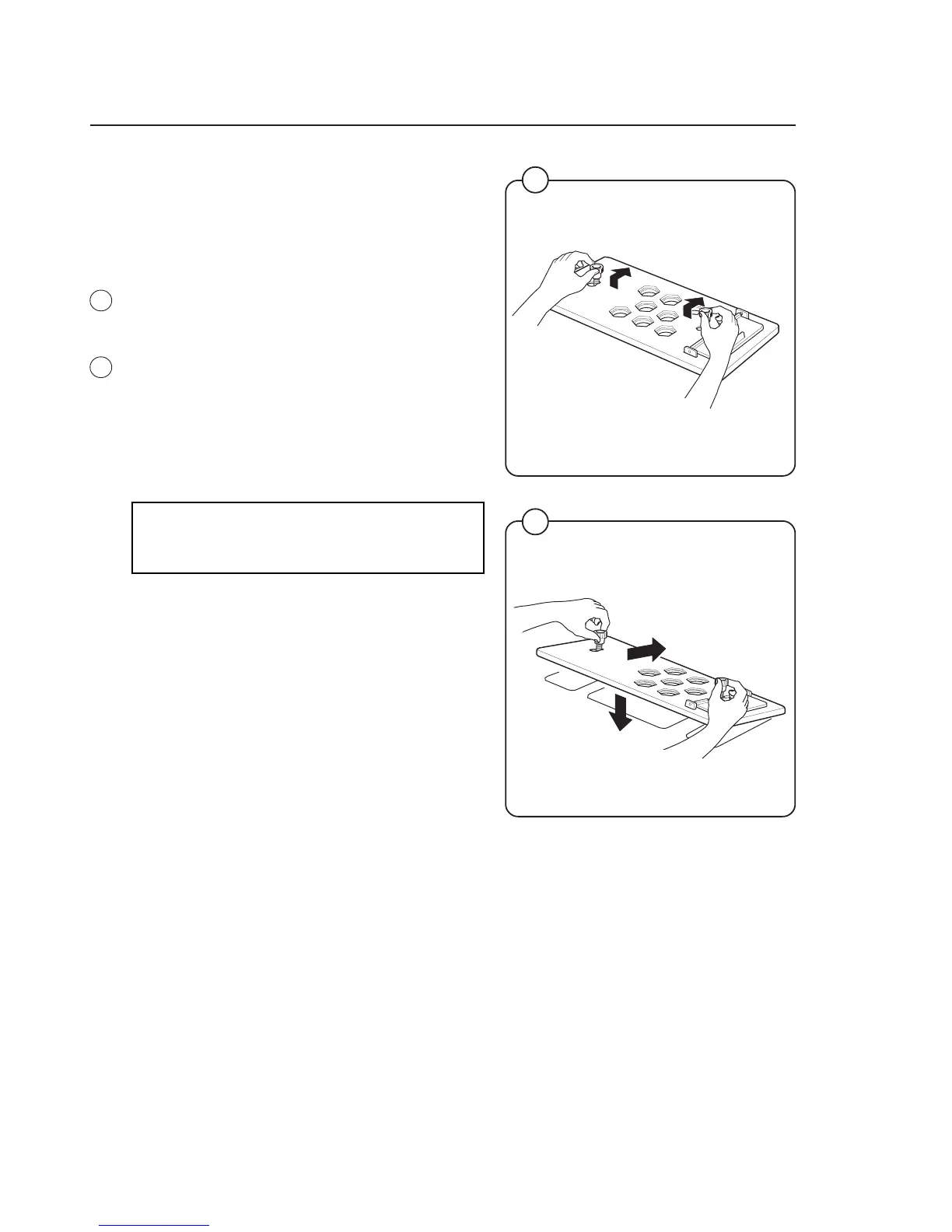

Installing top-mount manifold for
connection of liquid supplies
Remove the lid and lid support from over the
soap box.
Pull the manifold knobs up and forward. The
small hinged lid shall be mounted towards the
front.
1. Loosen both knobs so that one side of the
metal fingers underneath can slide under the
top lid of the machine, within the supply box.
2. Fit the supply injector manifold into the supply
box so that both sides are held securely in
place by the metal fingers, and the small
hinged lid is at the front.
Note:
If the supply injector manifold does not fit turn
it around. You have it in backwards.
Fig.
18
Fig.
19
