Wasp CLAY - Page 41

Ordinary and extraordinary maintenance
41
6
© WASP S.r.l.

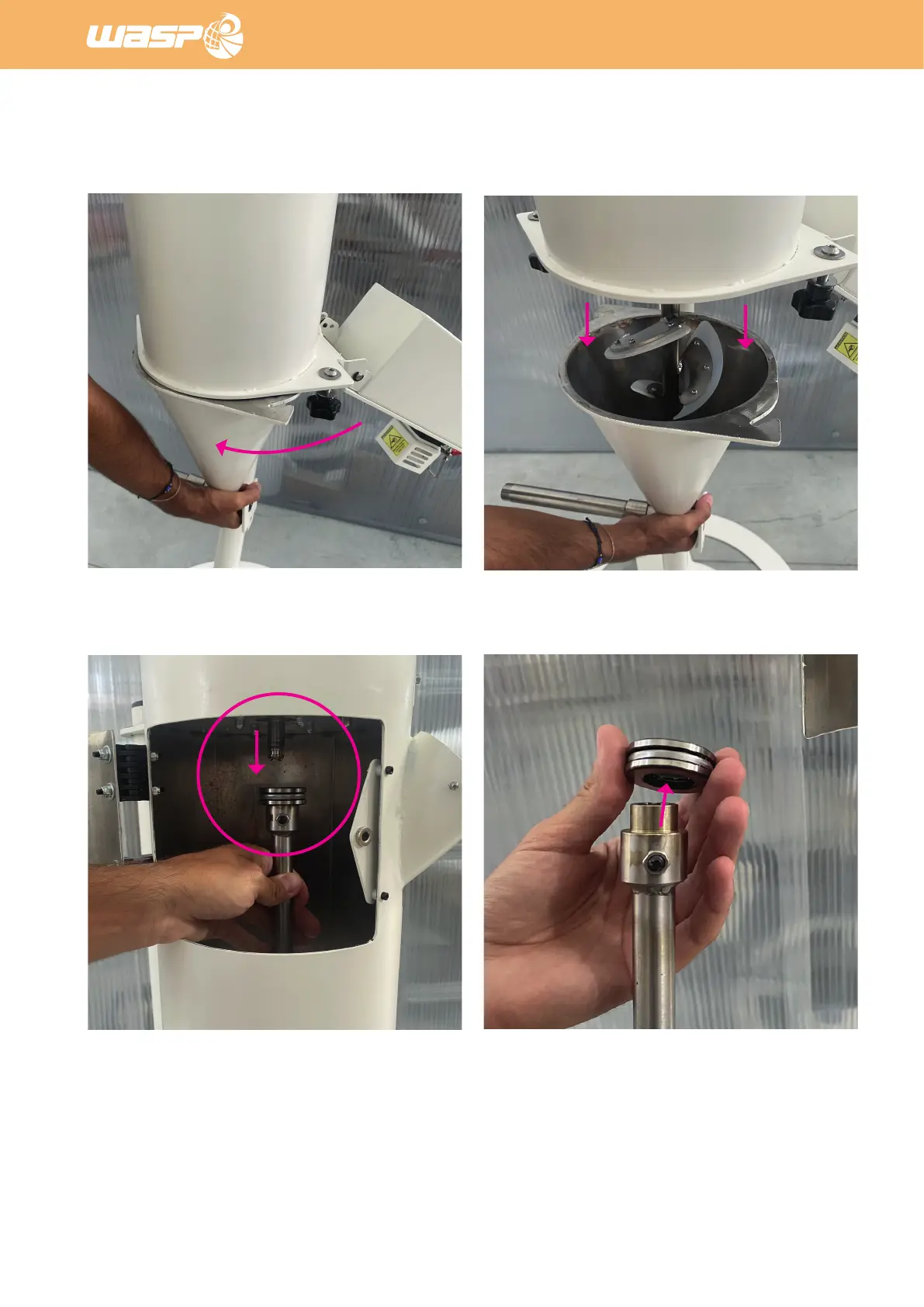

Fig. 7.2.1 f - Secure the extrusion motor
Fig. 7.2.1 h - Loosen the two black knobs
Fig. 7.2.1 l - Pull down the lower component
Fig. 7.2.1 m - Pull down the mixer together with all the bearing
Fig. 7.2.1 n - Separate the bearing from the mixer
Fig. 7.2.1 -Cleaning
Fig. 7.2.1 i - Rotate to unlock the lower component
