WL Max Technical Manual - Version 1 - May 2013

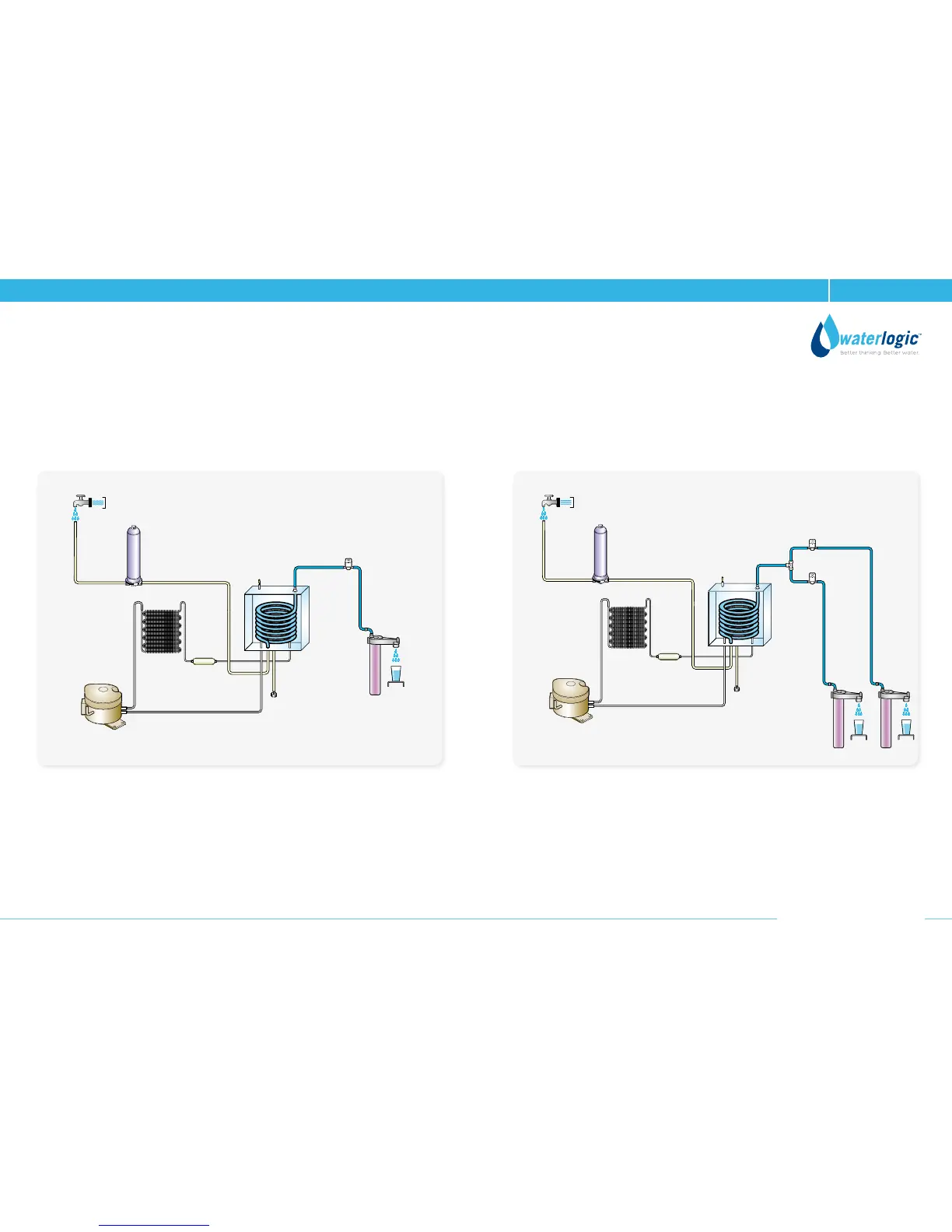

Flow Diagram
Single Faucet
Flow Diagram
Double Faucet
DRAIN
VALVE
FILTER
IN (Water)
COLD WATER OUT
FILTER
DRYER
ICE BANK
COMPRESSOR
CONDENSER
COLD
SENSOR
SOLENOID
VALVE
DRAIN
VALVE
FILTER
IN (Water)
COLD WATER OUT
FILTER
DRYER
ICE BANK
COMPRESSOR
CONDENSER
COLD
SENSOR
SOLENOID
VALVE
SOLENOID
VALVE
