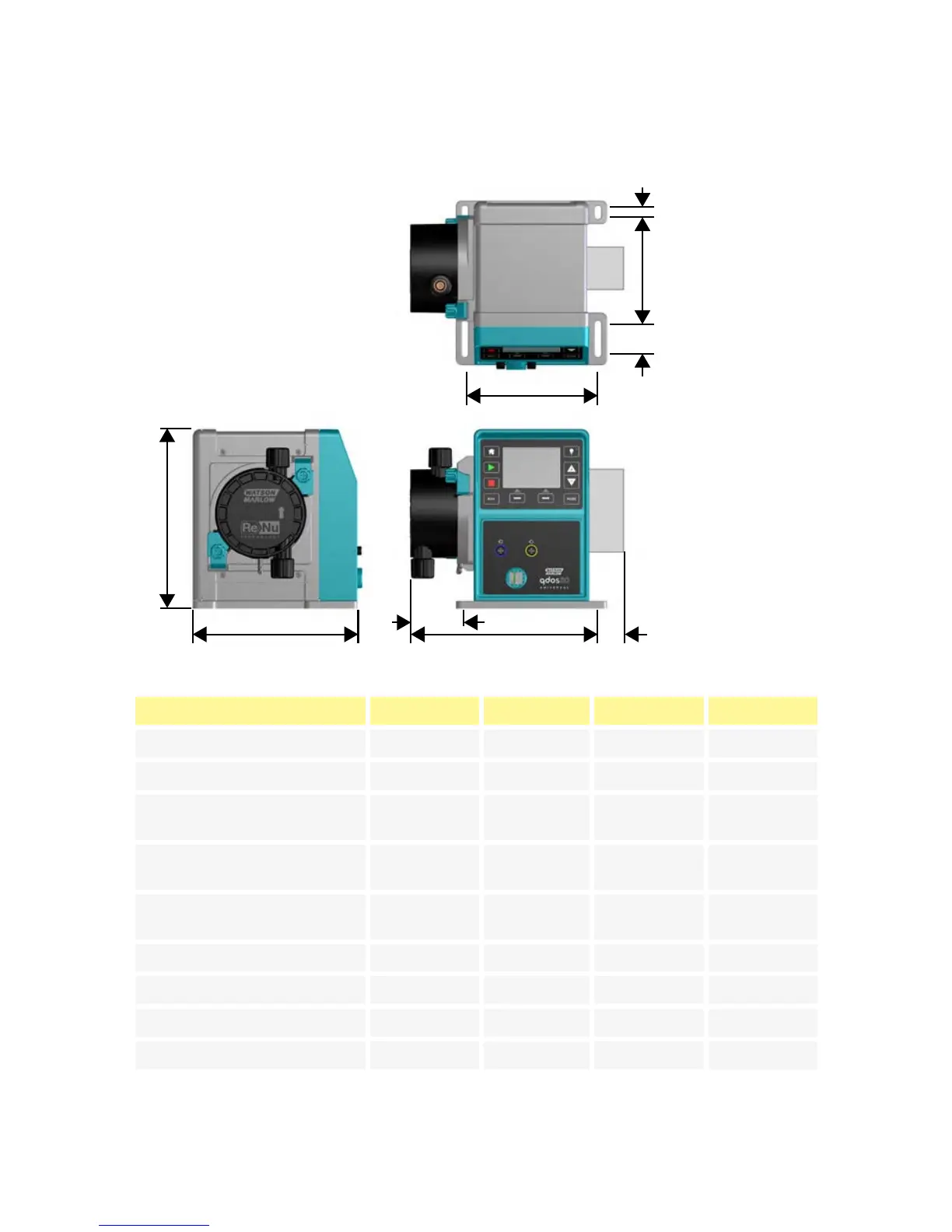

6.4 Dimensions
A
B
C
D
F
G
H
I
E*
Dimension qdos20 qdos30 qdos60 qdos120
A 234mm (9.2”) 234mm (9.2”) 234mm (9.2”) 234mm (9.2”)
B 214mm (8.4”) 214mm (8.4”) 214mm (8.4”) 214mm (8.4”)
C 118mm (4.6”)
82.5mm
(3.2”)
118mm (4.6”) 118mm (4.6”)
D
266mm
(10.5”)
233mm (9.2”)
266mm
(10.5”)
266mm (10.5”)
E*—Optional relay modules (H or
R)
43mm (1.7”) 43mm (1.7”) 43mm (1.7”) 43mm (1.7”)
F 173mm (6.8”) 173mm (6.8”) 173mm (6.8”) 173mm (6.8”)
G 40mm (1.6”) 40mm (1.6”) 40mm (1.6”) 40mm (1.6”)
H 140mm (5.5”) 140mm (5.5”) 140mm (5.5”) 140mm (5.5”)
I 10mm (0.4”) 10mm (0.4”) 10mm (0.4”) 10mm (0.4”)
