18 Flow calibration mode (Manual, PROFIBUS,

Universal and Universal+ only)

This pump displays flow rate in ml/min.

Setting the flow calibration

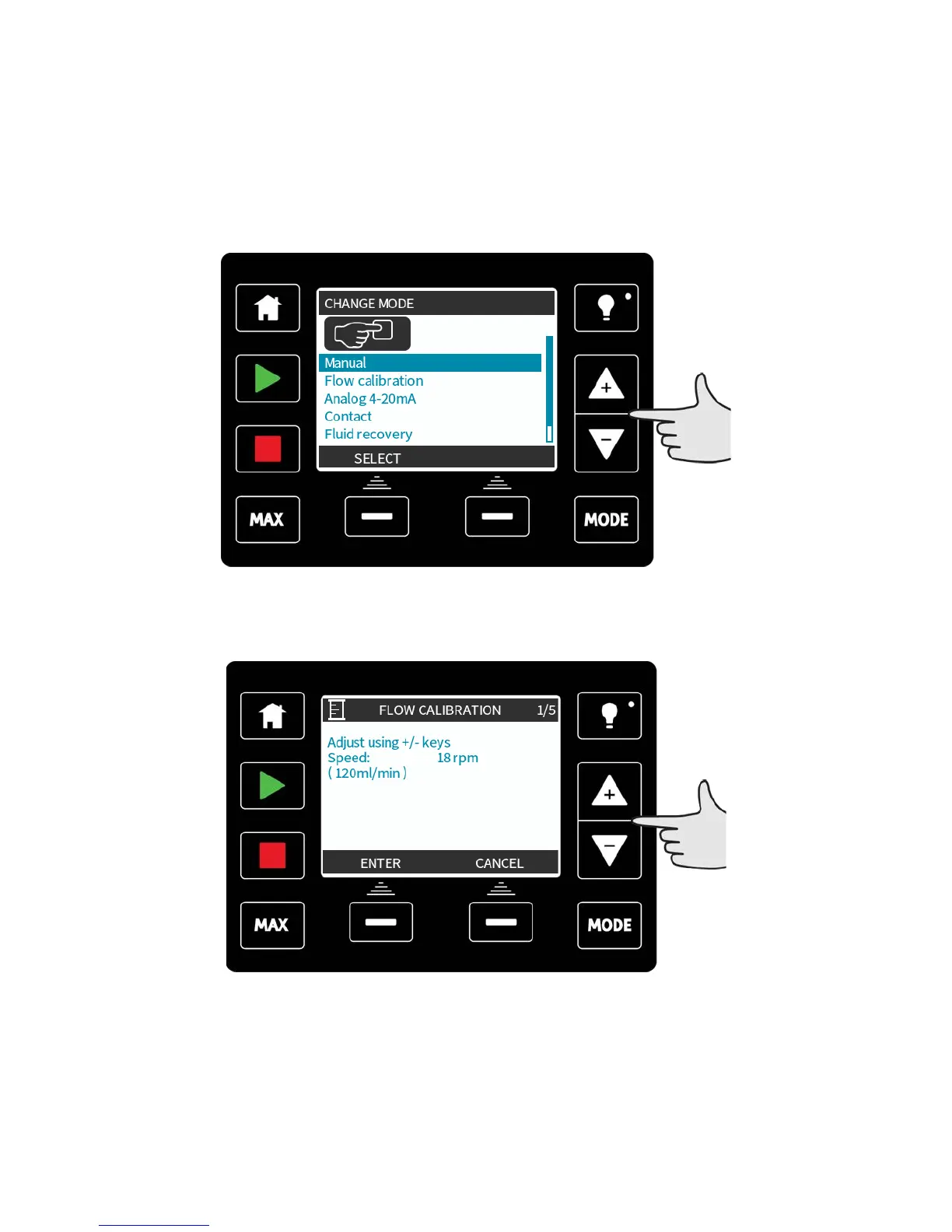

Select MODE

Using the +/- keys, scroll to Flow calibration and press SELECT.

Using the +/- keys enter the maximum flow rate limit and press ENTER.

m-qdos-en-02 64
