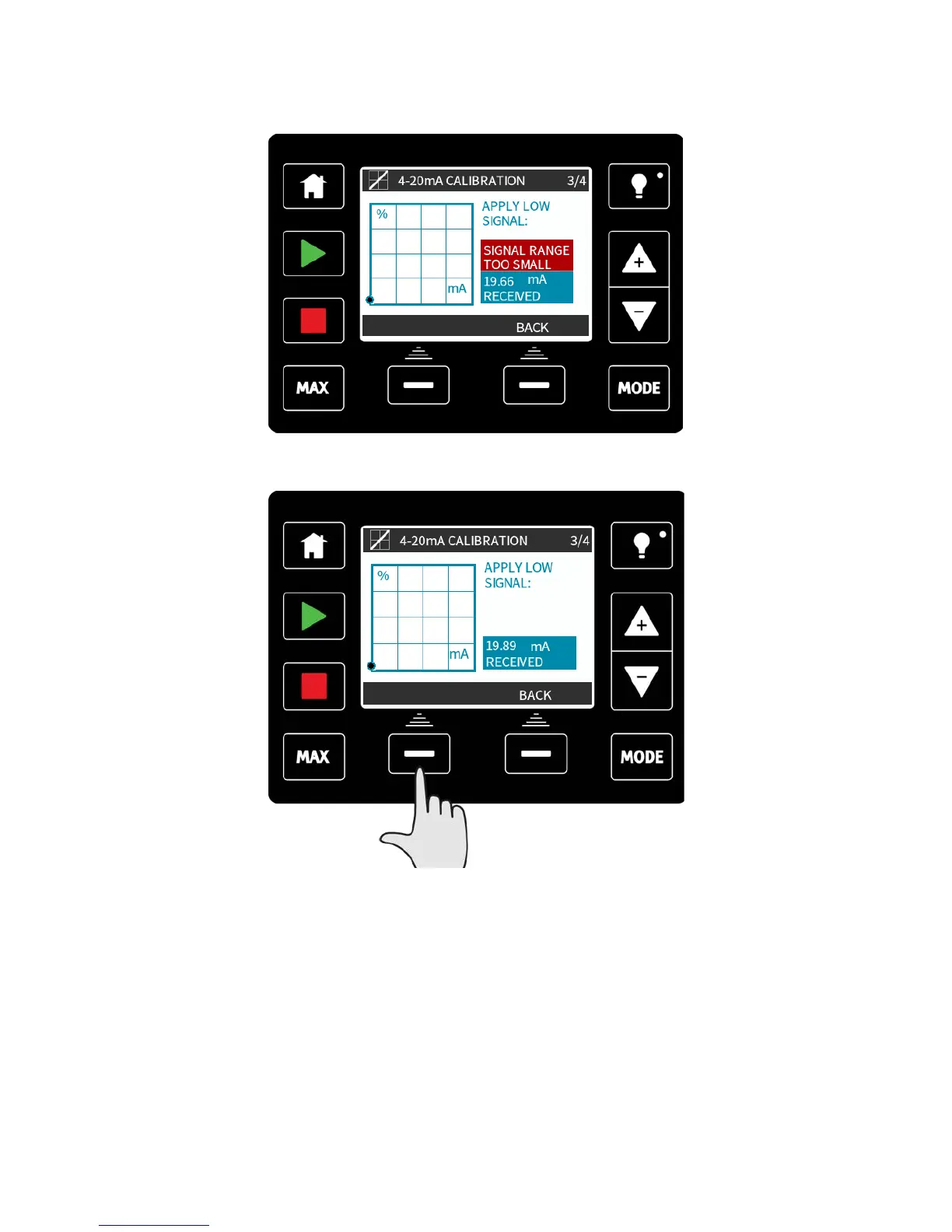

If the range between the low and high signal is less than 1.5mA, the following error

message will be displayed.

ACCEPT appears when low mA signal is within tolerance limits. Press ACCEPT to accept the

low signal input or CANCEL to return to the previous screen.

m-qdos-en-02 75
