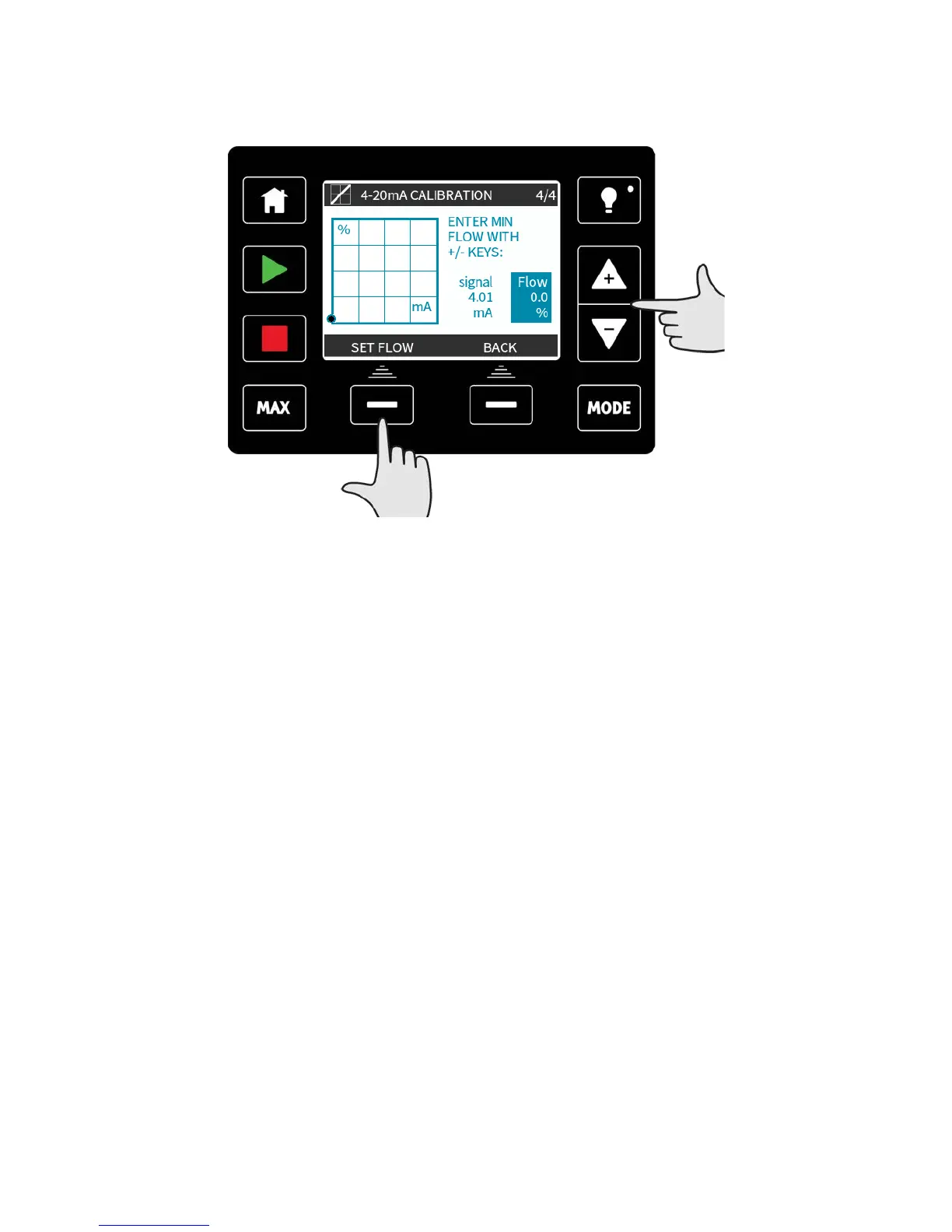

Setting low flow calibration

Using the +/- keys scroll to the desired flow rate. Select SET FLOW.

This proceeds to the screen confirming calibration is complete. Select CONTINUE to start

in proportional mode or MANUAL to continue in manual mode.
