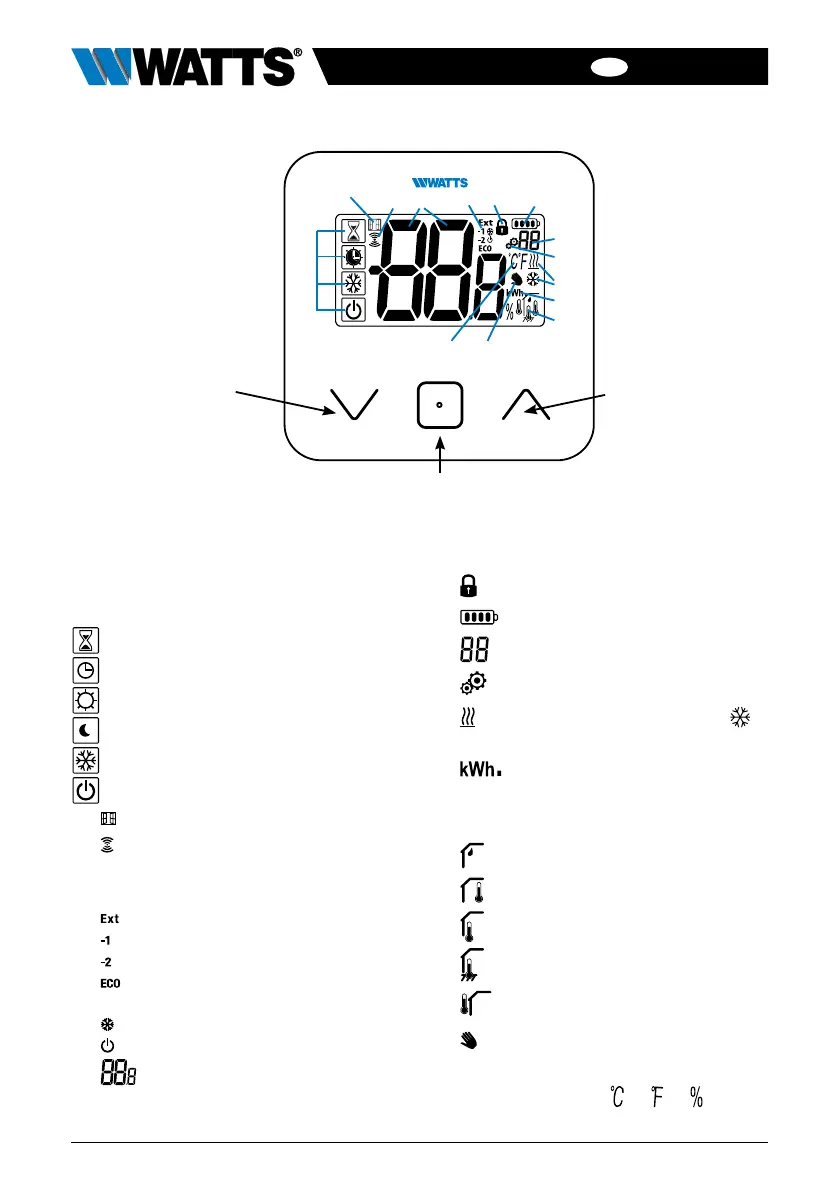

4.1 LCD logo description:
1 Icon showing current operating mode
of thermostat with left to right:
Boost/timer mode
Auto mode
Comfort mode
Reduced / ECO mode
Frost protection mode
Off mode
2
Open window function
3
RF communication
4 Displaying of pilot wired order or
reduced auto mode,
order is applied to heating system
order of comfort minus 1°C
order of comfort minus 2°C
order of reduced set point or Auto
reduced mode
order of anti-freeze set point
order of stop
5
Measured temperature/ tem-
perature set point / remaining time for
boost mode.
6
Locked keyboard.
7
Battery level.
8
Parameter menu number.
9
Parameter menu.
10
Indication of heating & cooling
demand
11
Unit for power consumption.
12 Type of measured data & sensor
used for system regulation:
➤
Humidity measurement & control
➤
Internal temperature sensor
➤
Ambient temperature sensor
➤
Floor temperature sensor
➤
External temperature sensor
13
User derogation or “adaptive start”
during Auto mode application
14 Temperature units
or or
measurement of humidity rate.
1
2
3 4 6 7
8
9
10
11
12
1314
5
Minus button or
down/left button for
menu navigation.
Plus button or up/
right button for
menu navigation.
Validation of temperature set point setting or accessing
to parameter menu or displaying measured
temperature/ temperature set point.
4. PRODUCT
DESCRIPTION

Watts BT-D03 RF Specifications

General

Brand	Watts
Model	BT-D03 RF
Category	Thermostat
Language	English
