JUMPER
WHT--- 0V
BLK--- 120VAC
RED--- 24VDC/VAC
C. ---BLU
N.C. ---YEL
N.O. ---ORG
PAM-1
IRRIGATION CONTROLLER
MV/P COM
WHT
RED
BLU
ORG
ALARM
NC
COM
ALARM
RELAY #1
NONC
COM
NO
+REF
RELAY #2
HOME/AWAY
MODE SEL
IN+
IN-
STANDBY
LED
IN+
IN-
-REF
POWER
5.5 x 2.1mm
9-12VDC
v+
GND
POLD
TEST PB
7-H/A ENA, STBY ENA, POLD ENA
6-H/A DIS, STBY ENA, POLD ENA
5-H/A ENA, STBY DIS, POLD ENA
4-H/A DIS, STBY DIS, POLD ENA
3-H/A ENA, STBY ENA, POLD DIS
2-H/A DIS, STBY ENA, POLD DIS
1-H/A ENA, STBY DIS, POLD DIS
0-H/A DIS, STBY DIS, POLD DIS
Here are the valid MODE SEL combinations
Note: This applies a 12-volt signal across the IN- and
IN+ (below STANDBY) terminals on the API, while
the irrigation system is running. You may be able to
start irrigation manually to test that this connection is
functioning properly.
API INSTALLATIONS

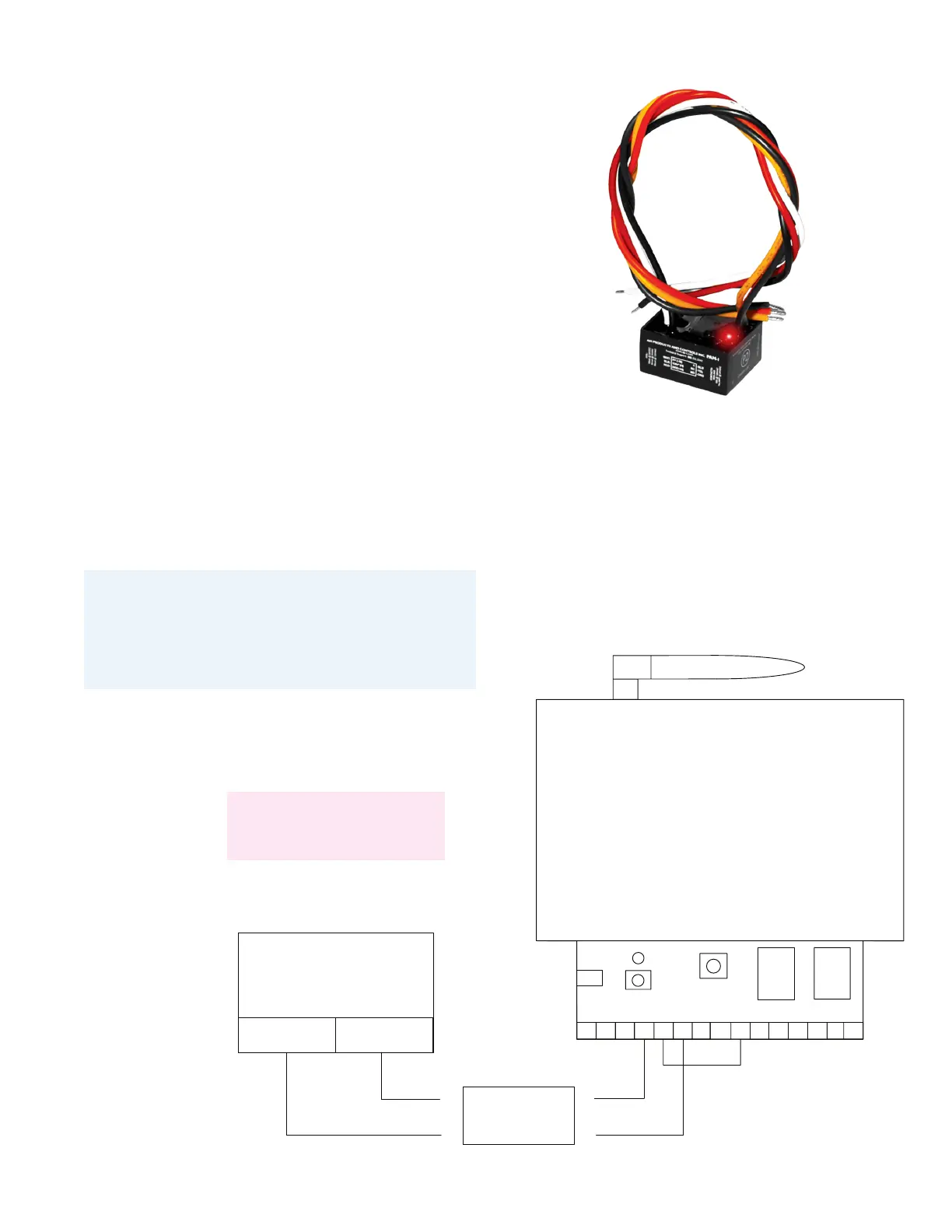

Wiring Instructions for a PAM-1
Relay (Irrigation Control Interface
Wiring)
• Connect the blue wire from the PAM-1 to IN- (below
STANDBY) on the API.
• Connect the orange wire from the PAM-1 to –REF
on the API.
• Place a jumper wire from IN+ (below STANDBY) to +REF
on the API.
• Connect the red wire from the PAM-1 to the MV/P
(master valve/ pump) terminal on the irrigation controller.
• Connect the white wire from the PAM-1 to COM on the
irrigation controller.
• The yellow arrow dial on the API should face F.
• When irrigation starts, you should see the Leak Defense
System control panel switch from Home or Away to
Standby. When irrigation stops, the Leak Defense
System should go back to Home or Away.
SEE FIGURE 6 DIAGRAM
PAGE 24
