Watts SENTINEL LEAK DEFENSE LDS-3-075 User Manual

21
IOM-S-Leak Defense 2211 2022-03-15 © 2022 Sentinel Hydrosolutions, LLC
OFF
Turn
Past
LEAK DEFENSE SYSTEM
HOURS
JUMPER
J
J
R
R
B
B
ALARM
NC
COM
ALARM
RELAY #1
NONC
COM
NO
+REF
RELAY #2
HOME/AWAY
MODE SEL
IN+
IN-
STANDBY
LED
IN+
IN-
-REF
POWER
5.5 x 2.1mm
9-12VDC
v+
GND
POLD
TEST PB
7-H/A ENA, STBY ENA, POLD ENA
6-H/A DIS, STBY ENA, POLD ENA
5-H/A ENA, STBY DIS, POLD ENA
4-H/A DIS, STBY DIS, POLD ENA
3-H/A ENA, STBY ENA, POLD DIS
2-H/A DIS, STBY ENA, POLD DIS
1-H/A ENA, STBY DIS, POLD DIS
0-H/A DIS, STBY DIS, POLD DIS
Here are the valid MODE SEL combinations

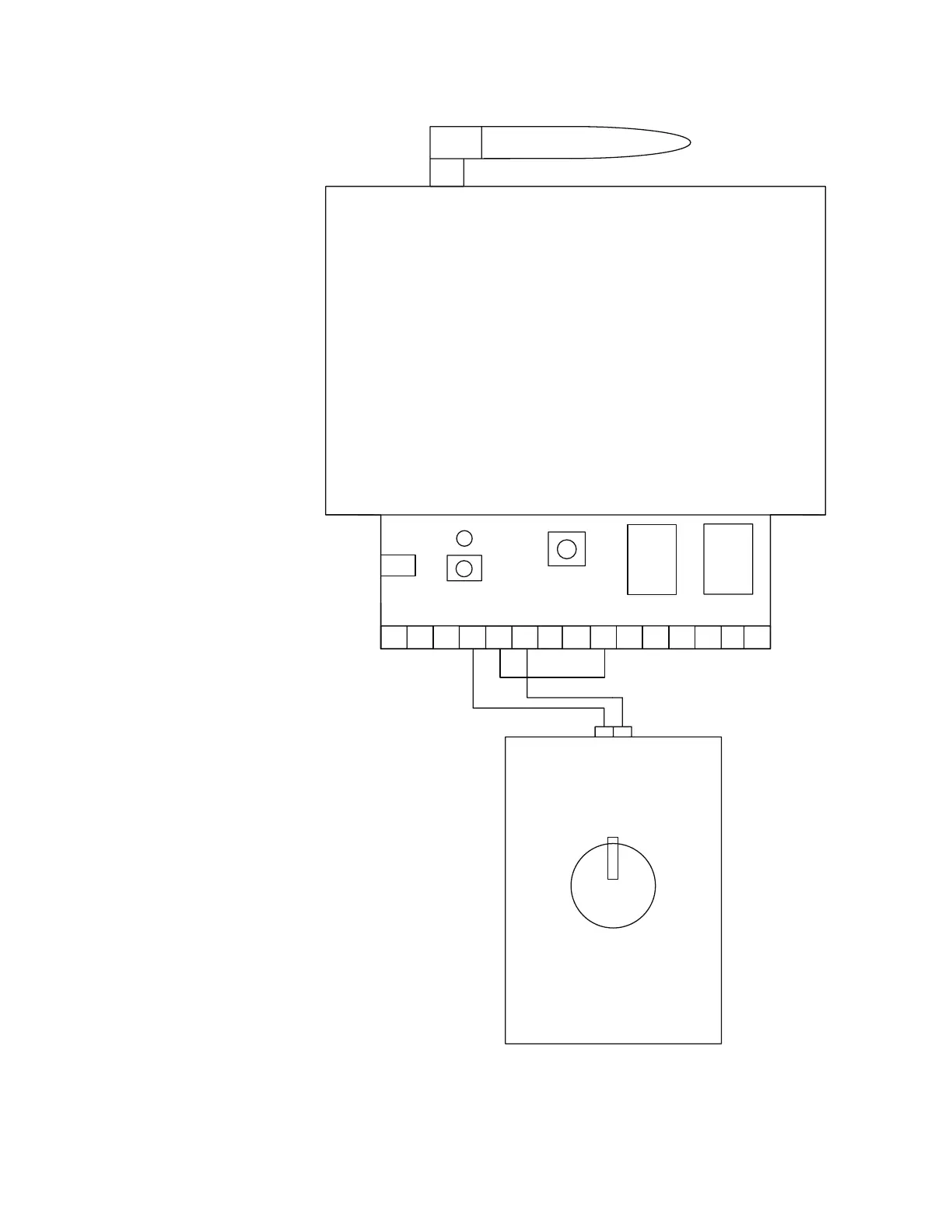

Figure 2
Connecting a
Four-Hour or
Six-Hour Timer
to the LDS API
FOR TECHNICAL SUPPORT:
Please call our office at 1.866.410.1134 – 8:00am to 5:00pm Pacific Time
