Barcode Scanner Module User Manual

8 / 57 Rev1.0 Date:180621

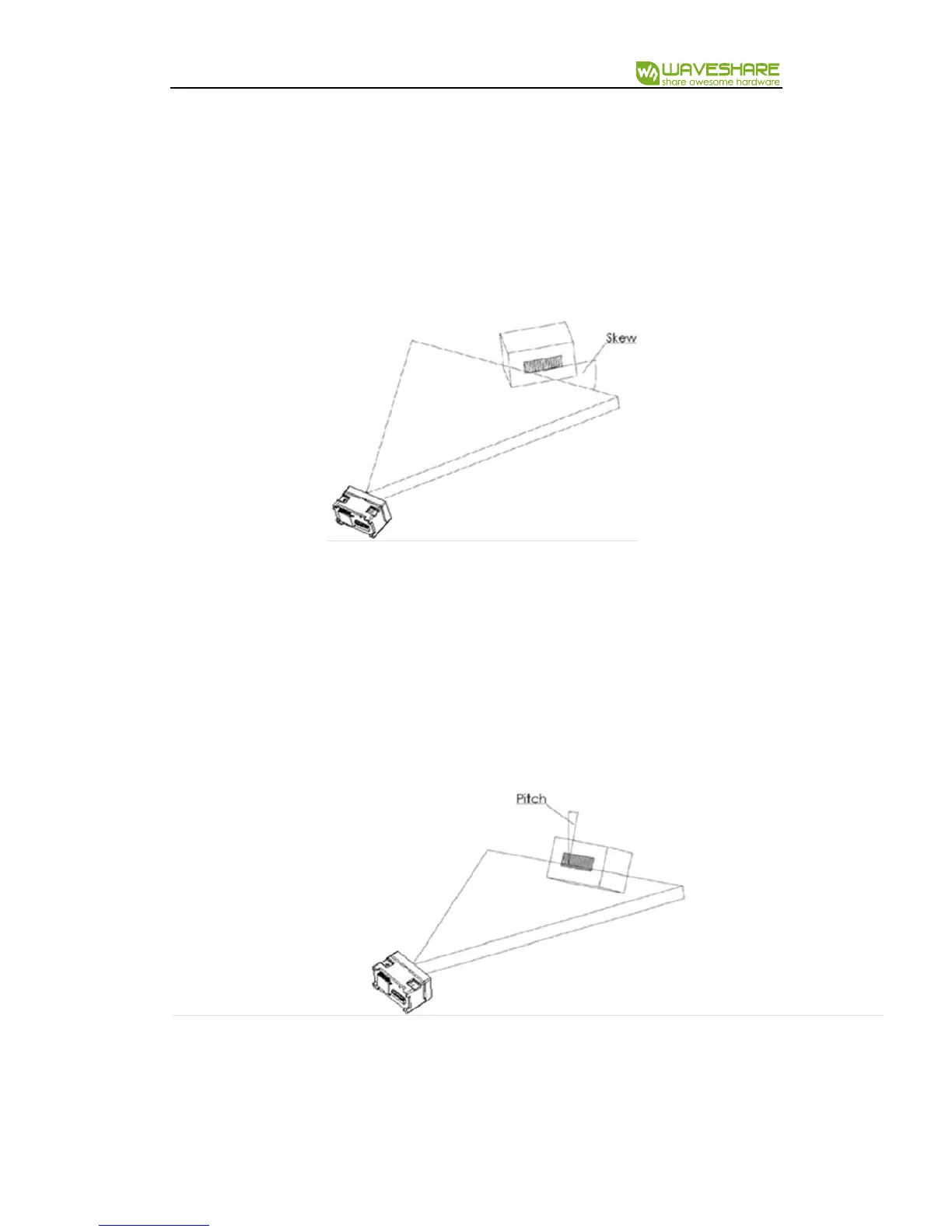

Skew

Skew will reduce the width and space of barcode (scanned), it is the threshold

dimension of high density barcode. It supports up to 65°. However, you’d better

reduce the skew for better and faster scanning.

Pitch

Pitch will decrease the height of barcode. 2° to 3° is the best scanning angle,

which could avoid the direct reflection of barcode. Barcode Scanner Module supports

up to 60° pitch angle. But you should reduce it for better and faster scanning.
