485 TO ETH (B) User Manual
5 / 36 www.waveshare.com

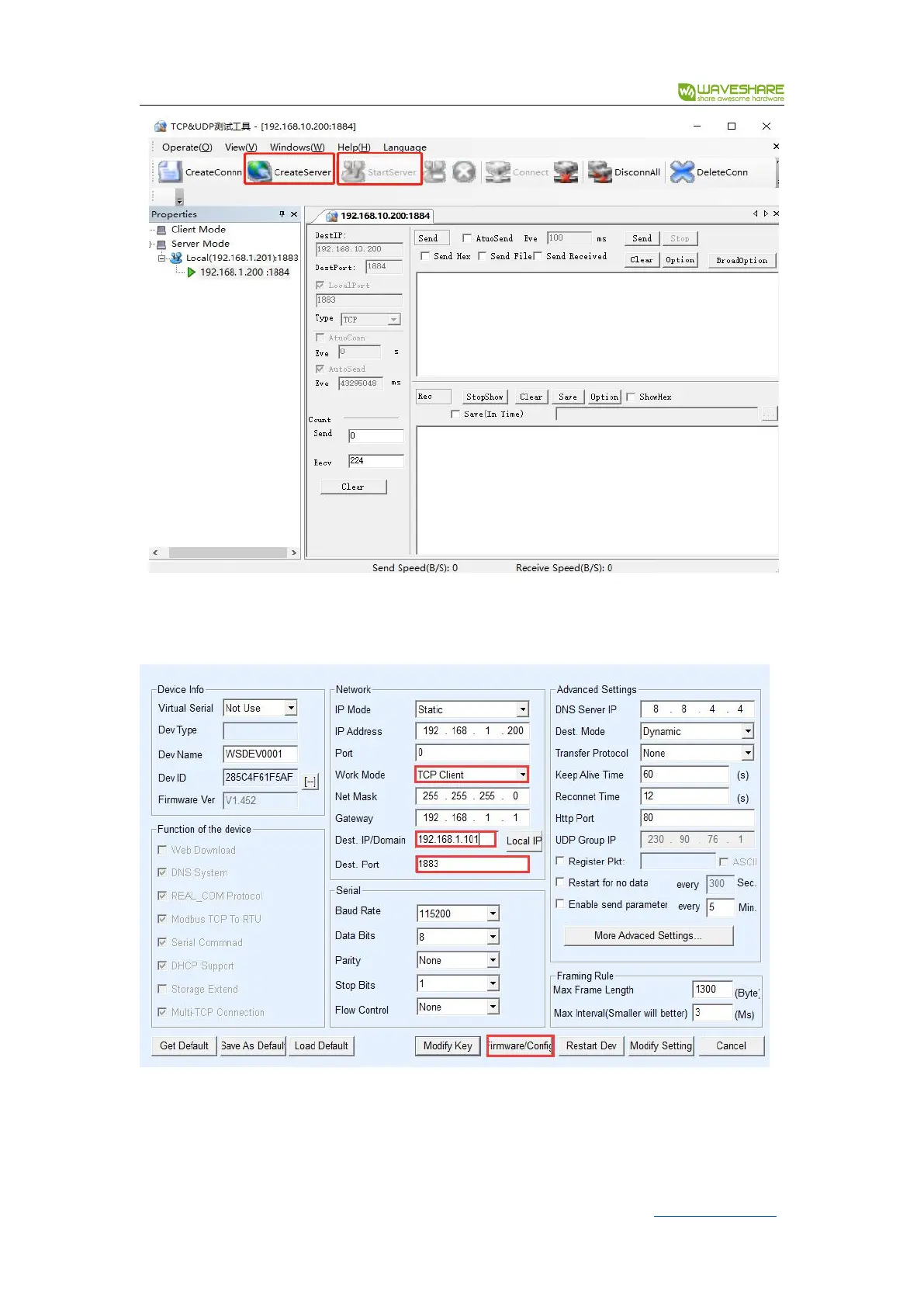

Figure 1 Socket simulated server receiving data
Use Vircom to configure the device.
Figure 2 Device configuration
Click Modify configuration to connect the device to the SocketDlgTest tool. Enter device
editing again dialog box. Click the "Firmware and Configuration" button.
