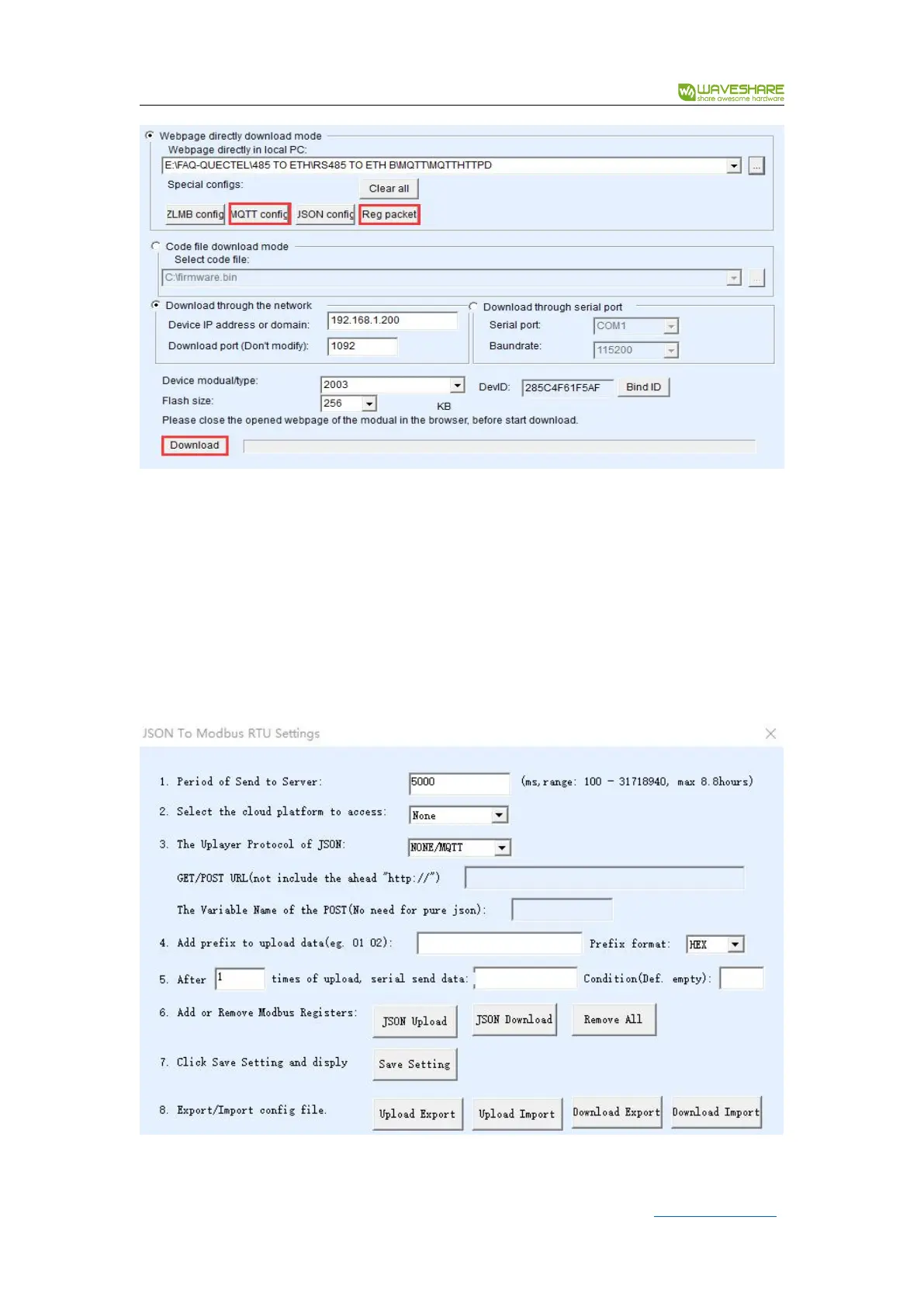

Figure 3 Download interface
First click "Web Directory Download" to enter the configuration download mode. Then
select a new empty directory, such as the MQTTHTTPD directory. To prevent the previous
design from remaining, please click the "Clear All" button first, so that the previous design
content can be cleared. The design file will be saved in this directory and can be downloaded
to the device by clicking the "download" button later.
Click the "JSON Configuration" button.
Figure 4 JSON configuration main interface

Waveshare RS485 TO ETH Specifications

General

Interface	RS485 to Ethernet
Ethernet Port	10/100Mbps
RS485 Port	1 port
Baud Rate	300bps ~ 115200bps
Communication Interface	Ethernet, RS485
Protection	Surge protection
Operating Temperature	-40°C to 85°C
Communication Protocol	TCP/IP, UDP
Storage Temperature	-40℃ ~ 85℃
Humidity	5% ~ 95%
Function	RS485 to Ethernet converter
