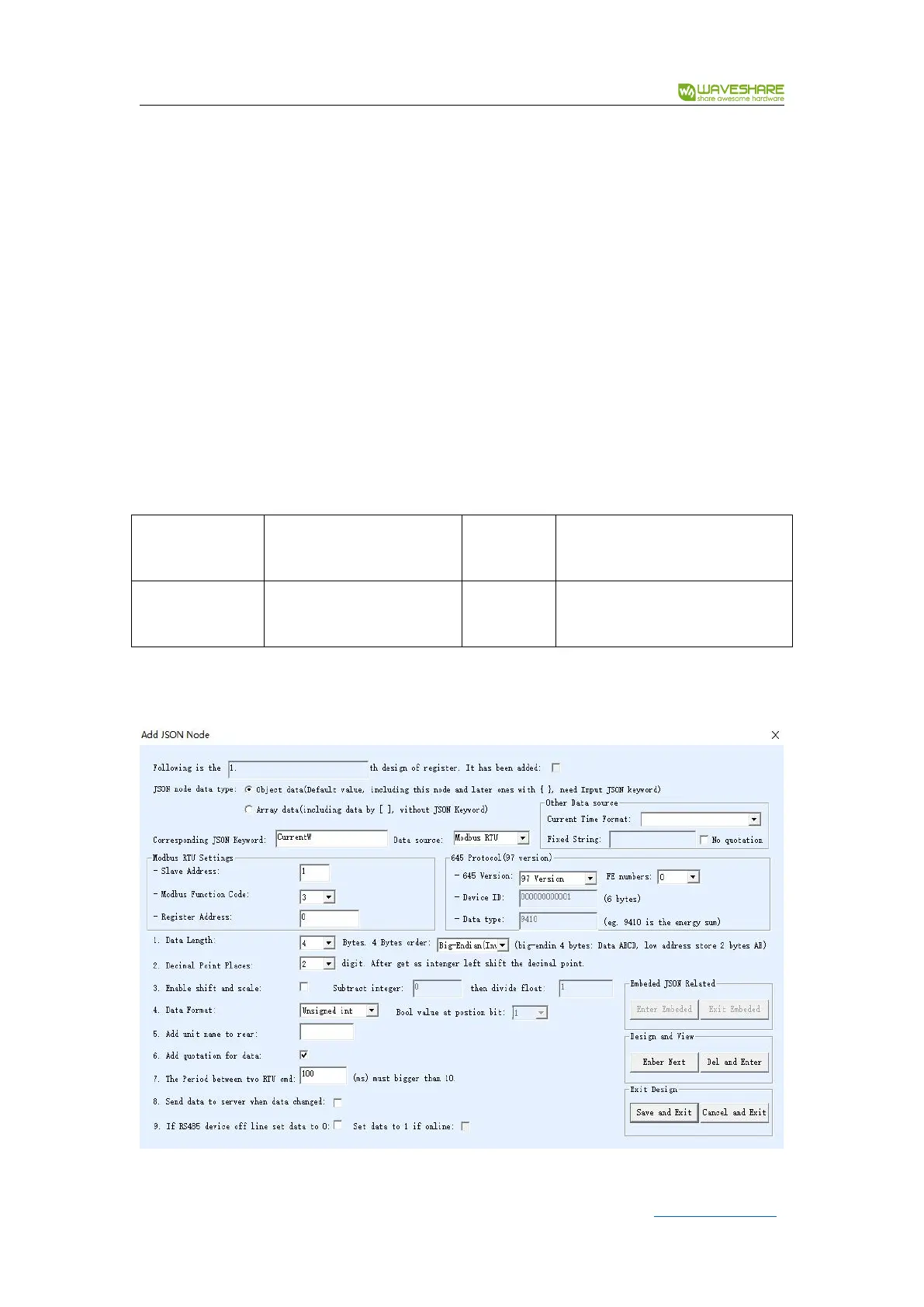

485 TO ETH (B) User Manual

7 / 36 www.waveshare.com

The parameters here are as follows:

1. Server upload time: The default JSON data is sent to the server every time. The server is

the destination IP set in the device configuration interface just now, and the unit is

milliseconds.

2. Add/View: After clicking, you can design every JSON node, or you can view the currently

designed content.

3. Delete all: Delete all Modbus registers designed by the "Add/View" button to facilitate the

restart of the design.

4. Save JSON settings: After the design is completed, only click this button to save the data

to the download directory just now, and then download it to the inside of the device.

Now click the "Add/View" button. For the first row of the previous Modbus table:

address

Parameter name

Byte

length

Remarks

Current total active

energy

Unsigned,keep 2 decimal

places

The corresponding configuration is as follows:

Figure 5 Register settings
