WS-431E 4G Router
www.waveshare.com
41
/
68
www.waveshare.com/wiki

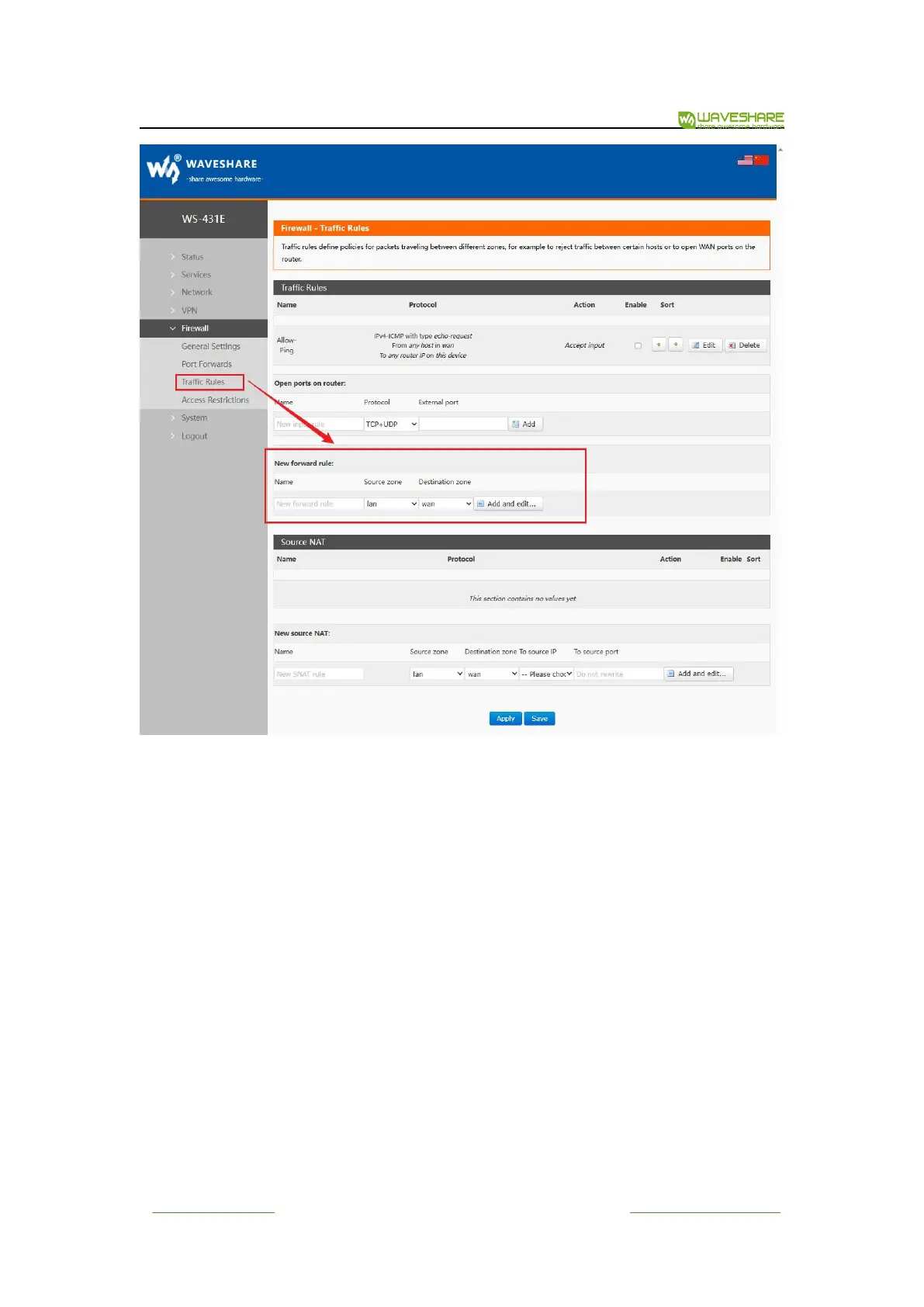

Figure 45 Firewall IP blacklist 1
In the jumped page, select lan” as the source zone, and select any” as the source MAC
addresses and source IP address options (if only the specific IP in the local area network is
restricted from accessing the specific IP of the external network, you need to fill in the IP address
or MAC address here, one of which is "any" or the IP address corresponds to the MAC address,
otherwise it will not take effect), as shown in the following figure.
