118 CHAPTER 10 CLICK 112/114

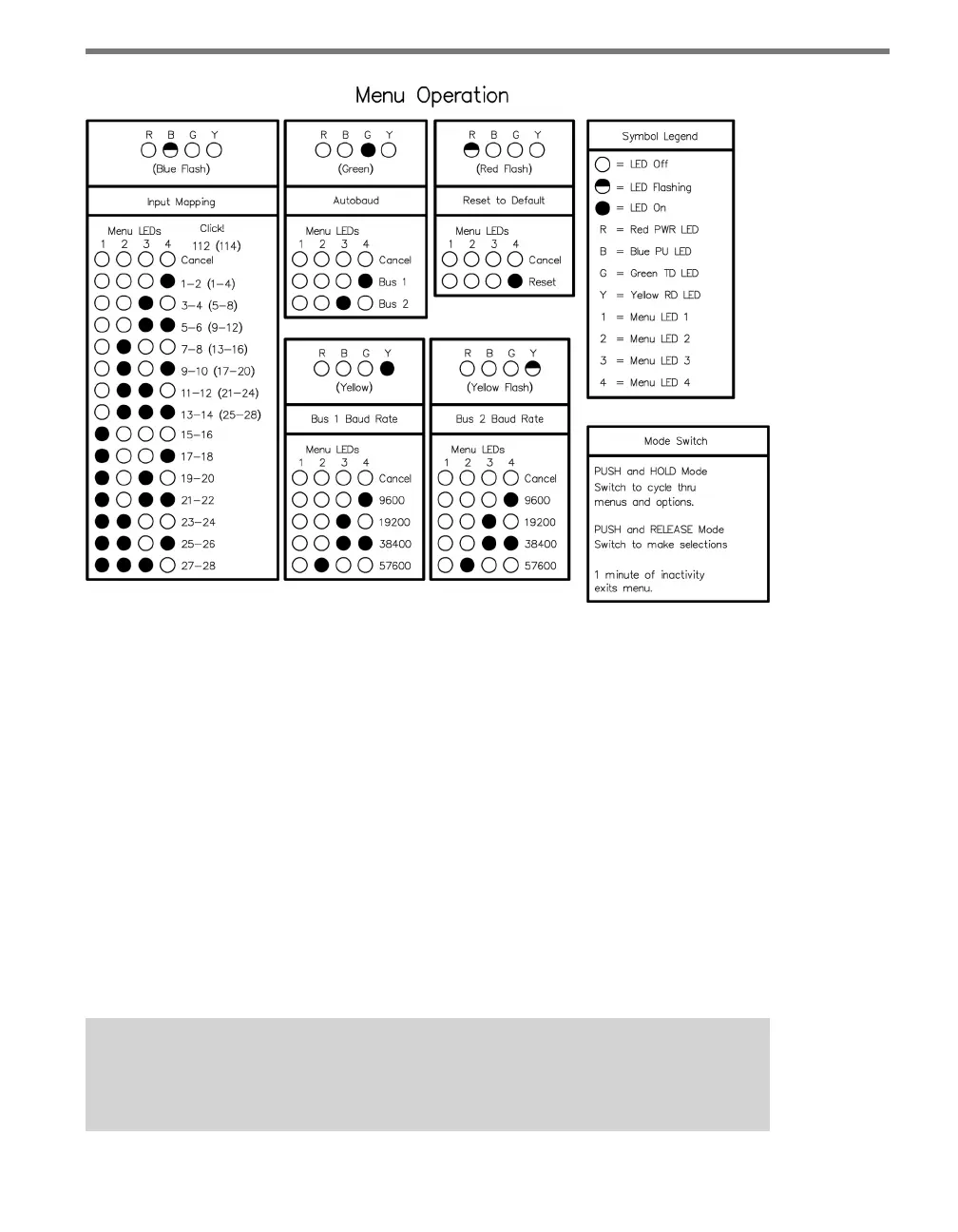

Figure 10.6 – Front Panel Menu Label
As shown above, the menu options are displayed on the Level 1 LEDs (multicolored) and
the conguration parameters are displayed on the Level 2 LEDs (all red).
If a conguration parameter has been set using the DIP switches (meaning that parameter
is currently set to Hardware mode), you cannot change it using the front panel menu. Aer
selecting that particular menu option from the Level 1 LEDs, the Level 2 LEDs will display
the conguration option set in the DIP switches but will not allow you to modify the set-
ting. When you have nished reviewing the setting, press the mode switch once to leave
Menu mode and return to normal operation.
Channel Input Map
e rst conguration parameter that comes up when you’re cycling through the front
panel menu is the channel input map. To select this parameter, release the push-button
when the blue LED ashes.
Note
This parameter can also be changed using the DIP switches or Click Supervisor.
