CHAPTER 10  CLICK 112/114 121
Level 1 LEDs Autobaud
Level 2 LEDs
Cancel and exit menu
Autobaud on bus 1
LED o
LED on
Autobaud on bus 2

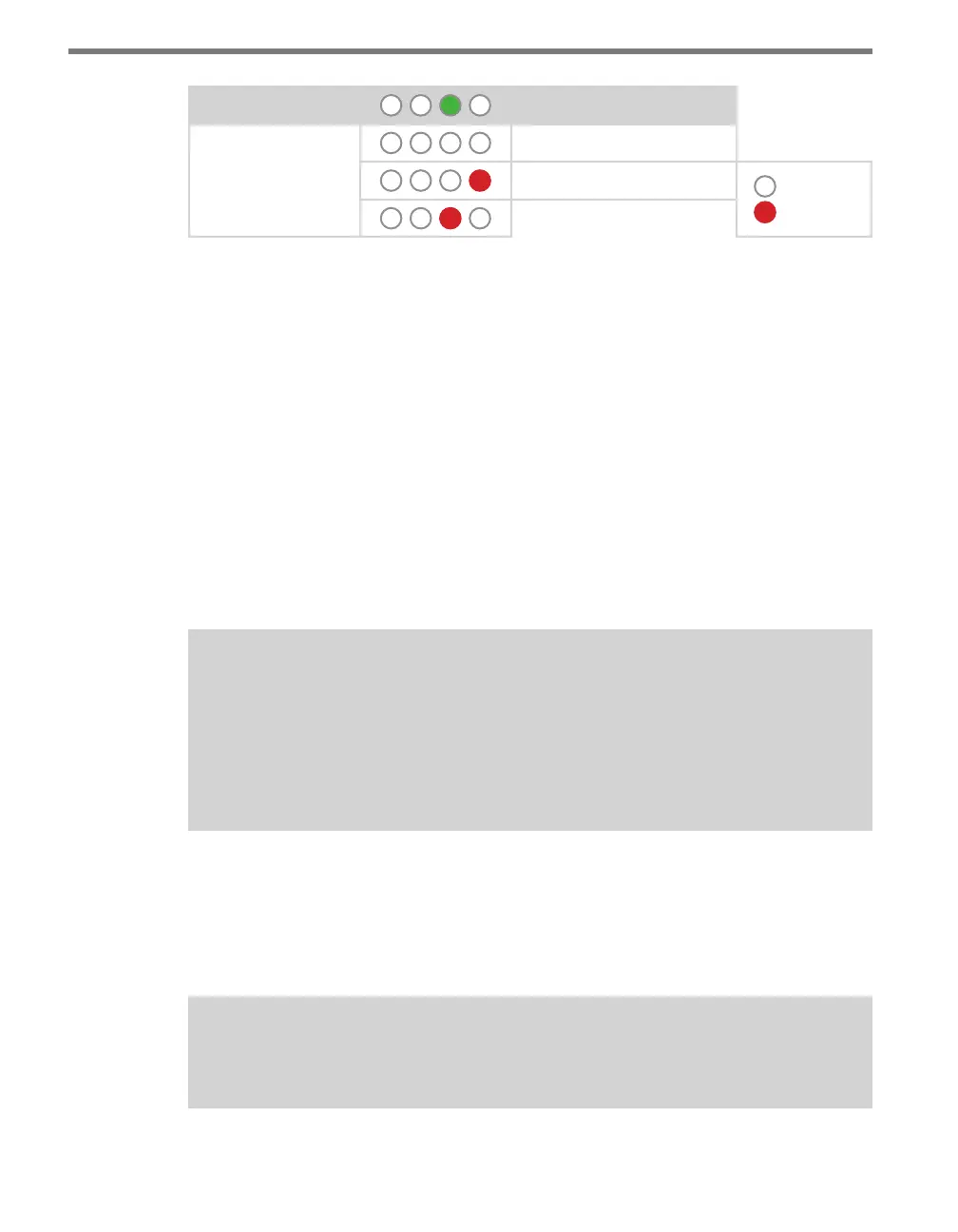

Table 10.9 – Front Panel Menu Autobaud Settings
See the earlier Navigating through the Menu and the Menu Operation Example sections for
how to congure this parameter.
As each baud rate is attempted, the Level 2 LEDs will sequence with a single LED illumi-
nated from LED 1–4.
If the Click 112/114 is successful in communicating with a SmartSensor, it will display
the baud rate found, using the same Level 2 LED pattern used in selecting the baud rate
(covered in the Baud Rate section of this chapter and Table 10.10). Aer a short time of
displaying the autobaud results, the menu will return to normal operation with the baud
rate setting updated (and stored) to the baud rate detected during the autobaud process.
If the autobaud fails, all four Level 2 LEDs will light up for a few seconds, and then the
menu will return to normal operation with the baud rate setting remaining unchanged.
Note
If the baud rate of either of the RS-485 buses was configured using the DIP switches
(so that parameter is set to Hardware mode), the Level 2 LED configuration options
for that bus will not be displayed (the LED option will never come on). If both RS-485
buses are configured using the DIP switches, the Level 1 LED menu option for auto-
baud will not be displayed (the green LED option will never come on).
Baud Rate (Bus 1 and 2)
e next two conguration parameters that come up in the front panel menu allow you to
manually set the baud rate of the two RS-485 buses. Bus 1 comes up rst, with the yellow
LED coming on solid, then bus 2, with the yellow LED ashing.
Note
This parameter can also be changed using the DIP switches or Click Supervisor.
