122 CHAPTER 10  CLICK 112/114
Level 1 LEDs
Baud rate for bus 1
Baud rate for bus 2
Level 2 LEDs
Cancel and exit menu
9600 bps (default)
19200 bps
38400 bps
LED o
LED on
57600 bps

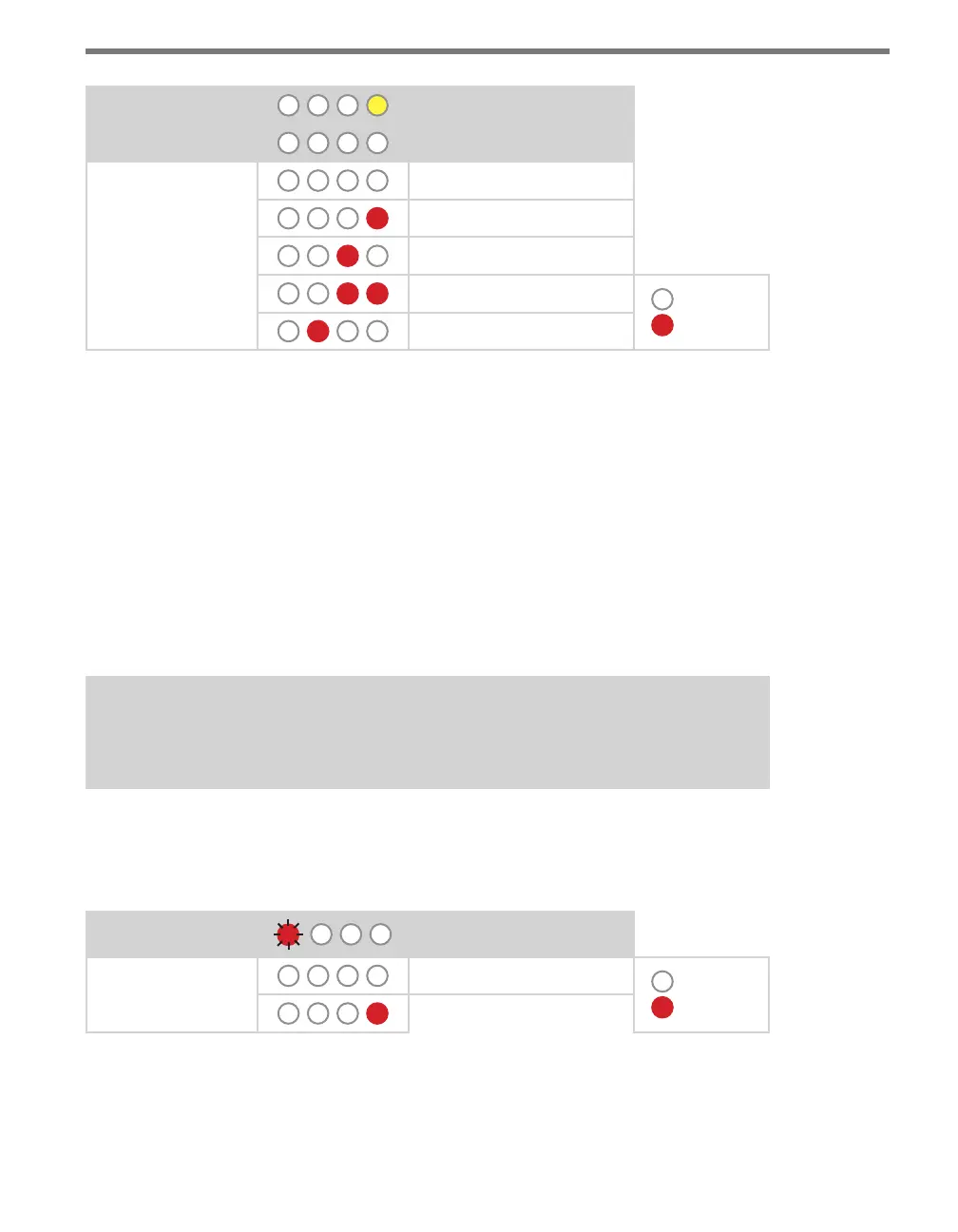

Table 10.10 – Front Panel Menu Baud Rate Settings
See the earlier Navigating through the Menu and the Menu Operation Example sections for
how to congure this parameter.
Because this parameter can also be set by the DIP switches, you may need to ensure that the
DIP switches are set to Soware conguration mode; if they are set to Hardware, the front
panel menu will be able to display but not change these settings.
Reset to Default Settings
e nal option that comes up in the menu is Reset to Default Settings. To select this func-
tion, release the mode switch when the red LED starts ashing.
Note
Resetting to default settings can also be done using Click Supervisor.
is function will restore all conguration settings to factory defaults, even those param-
eters not congured using the front panel menu: baud rate, channel input map, description
eld, location eld, and device ID.
Level 1 LEDs Reset to Default Settings
Level 2 LEDs
Cancel and exit menu
LED o
LED on
Reset to default Settings
Table 10.11 – Front Panel Menu Reset to Default Settings
See the earlier Navigating through the Menu and the Menu Operation Example sections for
how to view this parameter.
