Aer the Click 112/114 has reset to factory defaults, it will check the DIP switches; if any
of them are set to Hardware mode, it will apply those settings to the parameter in question.
If resetting to factory defaults doesn’t change certain settings the way you expected it to,
check the DIP switches to see if they are causing settings to be changed to something other
than the default.
Click Supervisor
Click Supervisor is the only way to congure non-data path type parameters such as the
description, location, and device ID. See Chapters 4 and 5 of this document for instructions
on how to download and install Click Supervisor and how to connect to your device using
the soware.
Note
Some of the parameters mentioned below can only be configured in Click Supervi-
sor. Others can be configured by the front panel menu and/or the DIP switches. In
the case of the DIP switches, if that parameter is set to Hardware mode, it will be
grayed out in Click Supervisor, meaning you can view but not change the setting.
If you would like to set it using Click Supervisor, you will have to turn o all those
switches on the device.
e Click 112/114 can be congured using the Expert driver (see Figure 10.7).

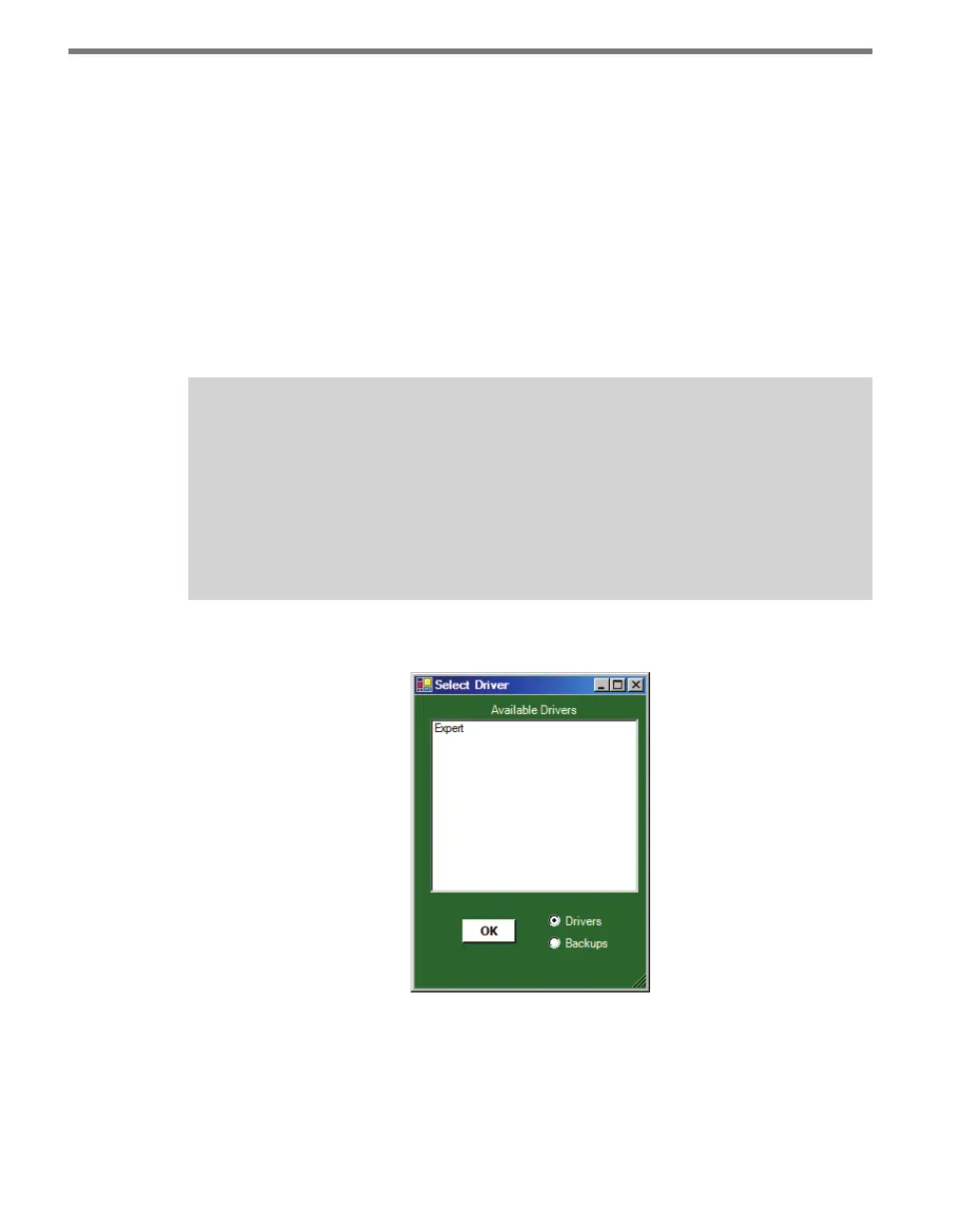

Figure 10.7 – Selecting a Driver
Aer you have made conguration changes on the driver and saved it to the Click device,
the word “current” will appear aer it to indicate the driver is currently loaded onto the
device.
