CHAPTER 23 CLICK 301 205
If a problem is detected, the program will display a red square next to the item in question.
If no problems are detected, a green circle will appear.

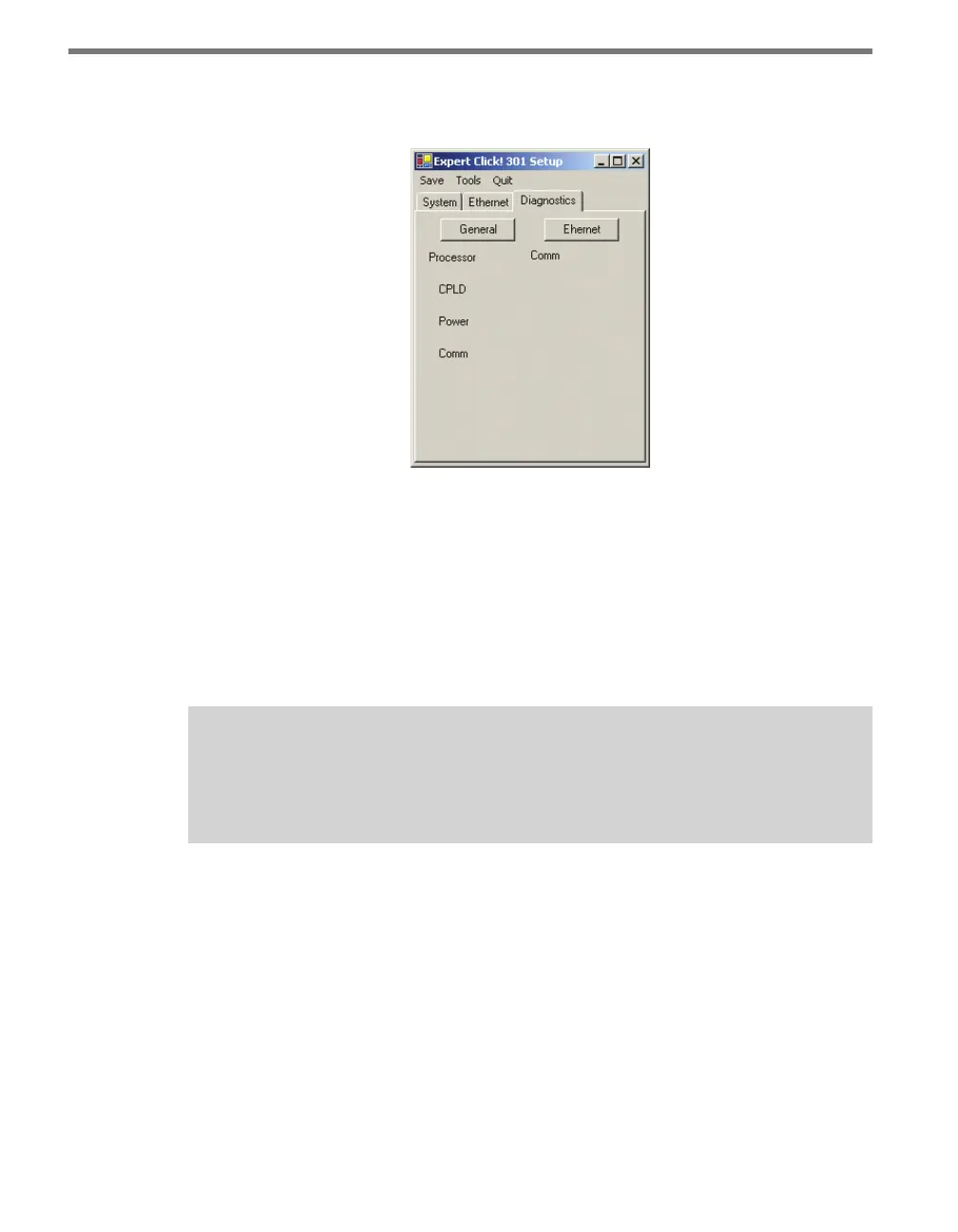

Figure 23.16 – Expert Driver Diagnostics Tab
Once you have nished, use the menu bar at the top of the screen to save your settings,
return to the Select Driver screen, and more.
e Save menu allows you to save your settings. Select Save to File to save your settings
to a le. Selecting this will open a directory box, allowing you to name your settings
le. is le will always be saved in the Wavetronix folder created when you installed
Click Supervisor, under Wavetronix > ClickHome > Drivers > 301 > User. You can also
select Save to Device to save your settings to your Click 301.
Note
If you do not save your settings to your Click 301, they will be lost the next time you
power the device down.
e To ol s menu contains ve options for working with your device. Reset > System
power cycles your device, while Reset > Factory Default restores your device to the
settings with which it was shipped. Restore will restore the driver to the settings cur-
rently saved on the Click 301, erasing any unsaved changes. Upgrade can be used to
manually upgrade to the most current rmware for your device. Hex View changes the
view of certain settings in the driver to hexadecimal.
Clicking the Quit menu exits the driver and returns you to the Click Supervisor main
page.
