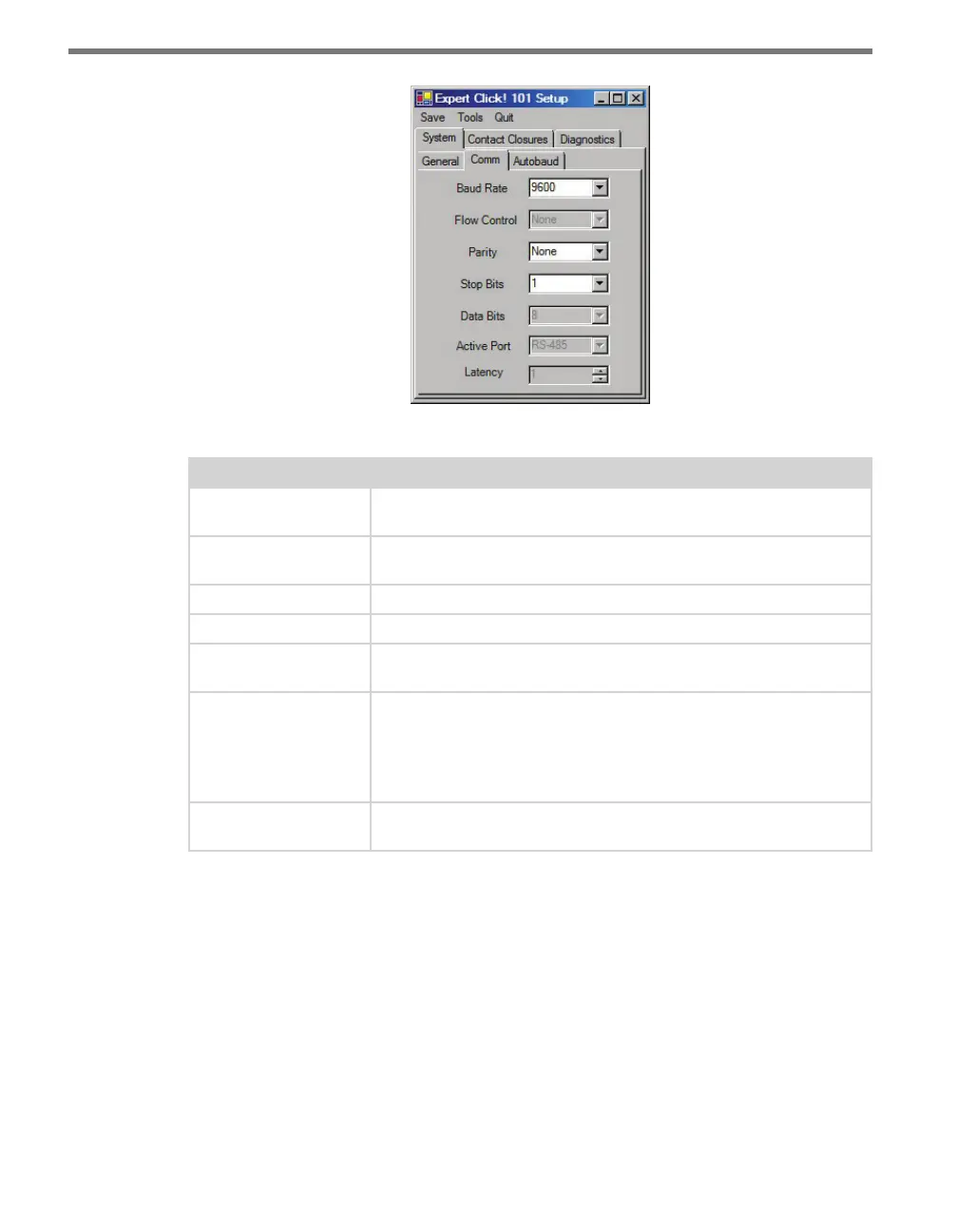

Figure 7.6 – Expert Driver Comm Tab
Setting Description
Baud Rate
Allows you to change the baud rate for both the RS-485 and RS-232
communication ports.
Flow Control
Is used for configuring hardware handshaking. This option is currently
not available.
Parity
Allows you to set parity error checking.
Stop Bits
Allows you to set the number of stop bits.
Data Bits
Shows you the number of data bits being sent. This option currently
cannot be changed.
Active Port
Indicates on which port you are communicating with one of the sen-
sors on the multi-drop RS-485 bus. When you communicate to more
than one sensor, the port may be dierent on each sensor. To change
the connection port, you will have to physically change the connection
of the communications link.
Latency
Indicates the latency between the sensor and the Click device. This
option cannot be changed.
Table 7.3 – Expert Driver Comm Tab
e System > Autobaud tab allows you to congure how the device autobauds (see Figure
7.7 and Table 7.4).
