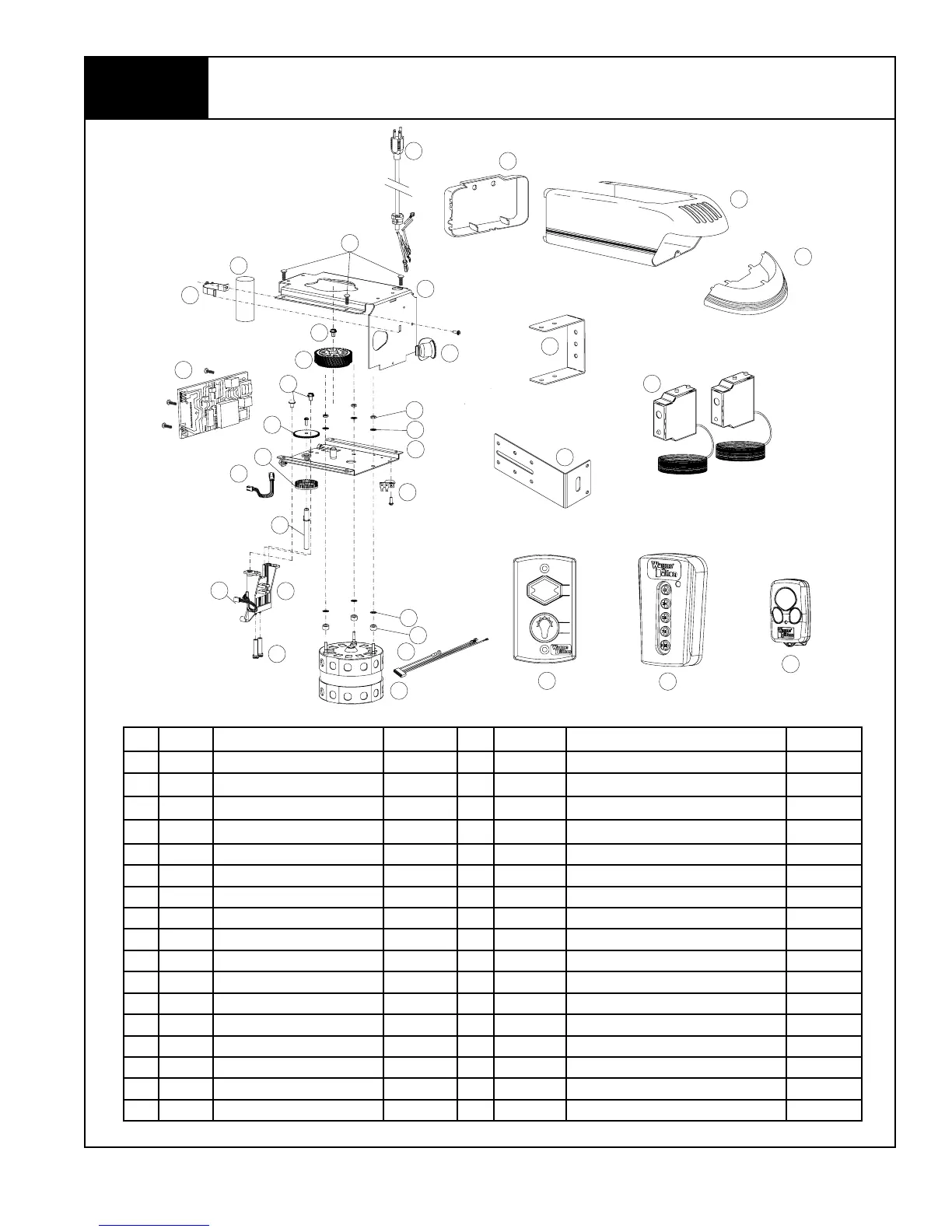

Parts Breakdown Opener Assembly And Accessories - All Models
#. Part # Description # Per Unit #. Part # Description # Per Unit
1. 157167 Frame 1 16. 301675 Capacitor Clamp 1
2. 325017 Motor 1/2 HP 1 17. 157166 Wired Sensor Mounting Bracket 2
3. 306131 Motor Control Board 1 18. 157165 Wired Sensor Sliding Bracket 2
4. 306364 Power Supply Cord 1 19. 318873 Infrared Safety Sensors - Pair 1
5. 260570 Capacitor 1/2 H.P. 1 20. 252092 Limit Assembly (Includes Items #10, 26 & 27) 1
6. 306486 Wiring Harness 1 21. 249321 LED Interrupter 1
7. 269028 Light Socket 1 22. 260556 Limit Driver Gear 1
8. 260552 Lens 1 23. 157039 Interrupter Disk 1
9. 252994 MOV Surge Suppressor 1 24. 260557 Shaft, Limit Driver 1
10. 252993 Limit Switch 1 25. 157055 Limit Adjuster 2
11. 325567 Sub-Frame 1 26. 306134 5 Button Wireless Keyless Entry 1
12. 325067 End Cap (Blue) 1 27. 309961 Wired Deluxe Wall station 1
325093 End Cap (Black) 1 28. 312962 3 Button Mini Transmitter 1 or 2
13. 325066 Housing (Blue) 1 29. 157066 Hex Nut #10-32 3
325092 Housing (Black) 1 30. 157585 Lock Washer # 10 6
14. 325020 Gear Driven 1 31. 157496 Nylon Motor Spacer 3
15. 251248 Screw 1/4”-20x3/8” 7
