weatherstrip up tight against the temporarily attached weatherstrip in the header and 1/8”
to 1/4” inside the jamb edge. Temporarily secure the weatherstrip with equally spaced nails.
Repeat for other side. This will keep the bottom section from falling out of the opening during
installation. Equally space nails approximately 12” to 18” apart.

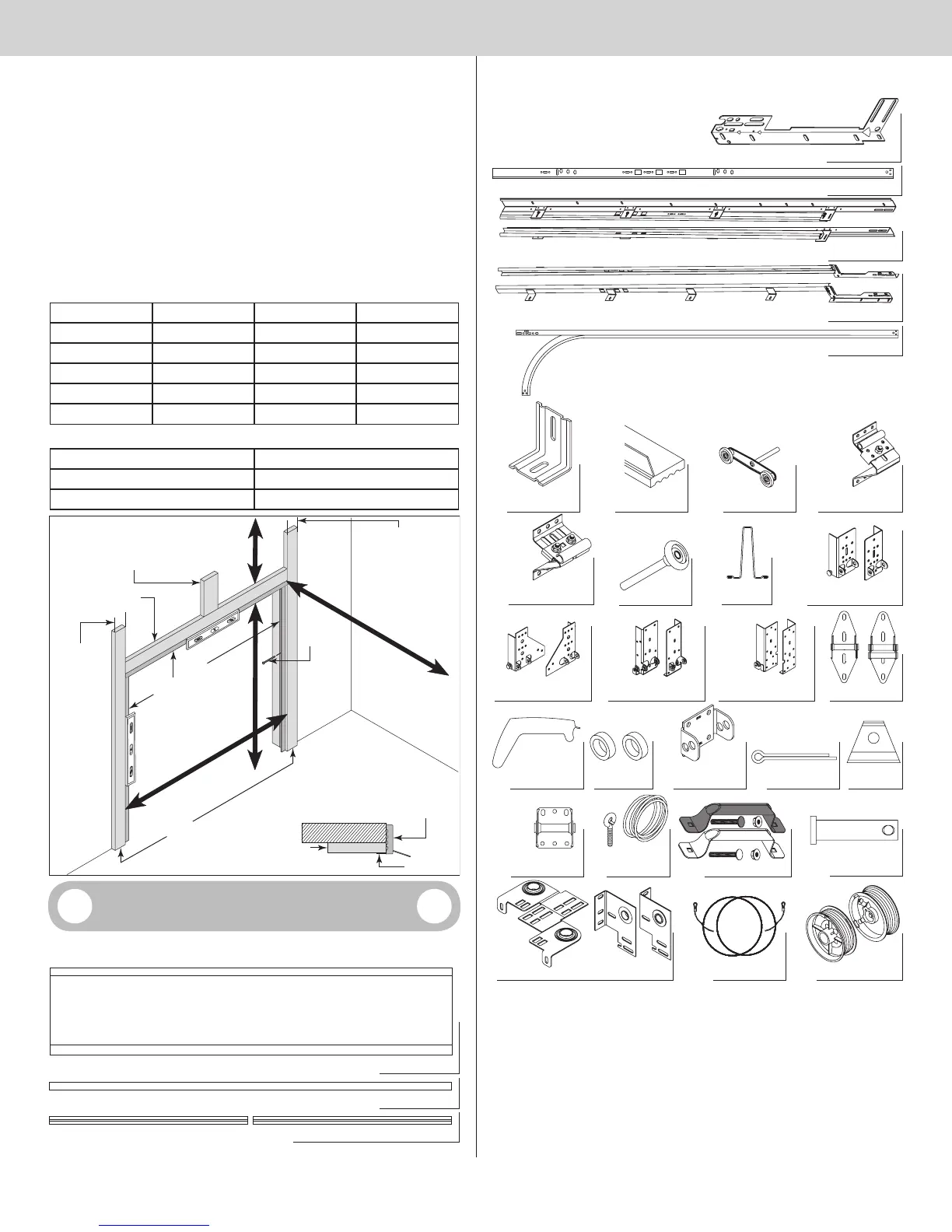

HEADROOM REQUIREMENT: Headroom is defined as the space needed above the top of
the door for tracks, springs, etc. to allow the door to open properly. If the door is to be motor
operated, 2-1/2” (64 mm) of additional headroom is required.
NOTE: 6” low headroom conversion kit is available for 12” radius only. Contact your local
Wayne Dalton dealer.
BACKROOM REQUIREMENT: Backroom is defined as the distance needed from the opening
back into the garage to allow the door to open fully.
*NOTE: For door heights from 10’1” to 14’0”, refer to your operator manufacture installation
instructions for appropriate depth into room.
BACKROOM REQUIREMENTS
Door Height Track Manual Lift Motor Operated
6’0” to 7’0” 12” Or 15” Radius 98” (2489 mm) 125” (3175 mm)
7’1” to 8’0” 12” Or 15” Radius 110” (2794 mm) 137” (3480 mm)
8’1” to 9’0” 12” Or 15” Radius 126” (3200 mm) 168” (4267 mm)
9’1” to 10’0” 12” Or 15” Radius 138” (3505 mm) 168” (4267 mm)
10’1” to 12’0” 12” Or 15” Radius 162” (4115 mm) * See NOTE
HEADROOM REQUIREMENTS
Track Type Space Needed
12” Radius 12-1/2” (318 mm)
15” Radius 14-1/2” (368 mm)
Weatherstrips
Level header
Finished
Door width
Jambs
Backroom
Plumb
jambs
Finished
Door
Height
Nail
Headroom
Header board 2”x 6”
lumber preferred
Suitable mounting surface
2”x 6” lumber minimum
Weatherstrips
(if applicable)
Jamb
1/8” to 1/4”
Min. side
room
clearance for
2” track is
3-1/2” (89
mm). Min.
side room
clearance for
3” track is
4-1/2” (114
mm).
Min. side room
clearance for 2” track
is 3-1/2” (89 mm).
Min. side room
clearance for 3” track
is 4-1/2” (114 mm).
Package Contents
NOTE: Depending on the door model, some parts listed will not be supplied if not required.
Rear Back Hangs may not be included with your door.
Door sections (as required)
Torsion shaft / Torsion keyed shaft (as required)
Torsion keyed shafts (as required)
Vertical tracks RH/LH (as required)
F.A. flag angles RH/LH (as required)
Horizontal tracks RH/LH (as required)
Riveted vertical track assemblies RH/LH (as required
)
Angle mount vertical track assemblies RH/LH (as required)
Track rollers
Strut
(if included)
Tandem track rollers
(if included)
Weather seals & nails
(If included)
F.A. jamb brackets
(as required)
Top fixture assemblies
(as required)
Top fixture assemblie
s
(as required)
Bottom corner
brackets (as required)
(2) Spacers
(as required)
Hinges (as required)
Cotter pin
(as required)
Bottom weather
seal (as required)
Strut clips
(as required)
Track roller carriers
(as required)
Bottom corner
brackets (as required)
Bottom corner
brackets (as required)
Bottom corner
brackets (as required)
Pull down rope
(if included)
Lift handles (as required)
Half Center
hinges (as required)
End bearing bracket RH/LH (as required)
Counterbalance
lift cables
Cable drums RH/LH
5/16” x 1-1/4”
Clevis pin (as required)
3
