Wayne-Dalton 9600 Series User Manual

8
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:

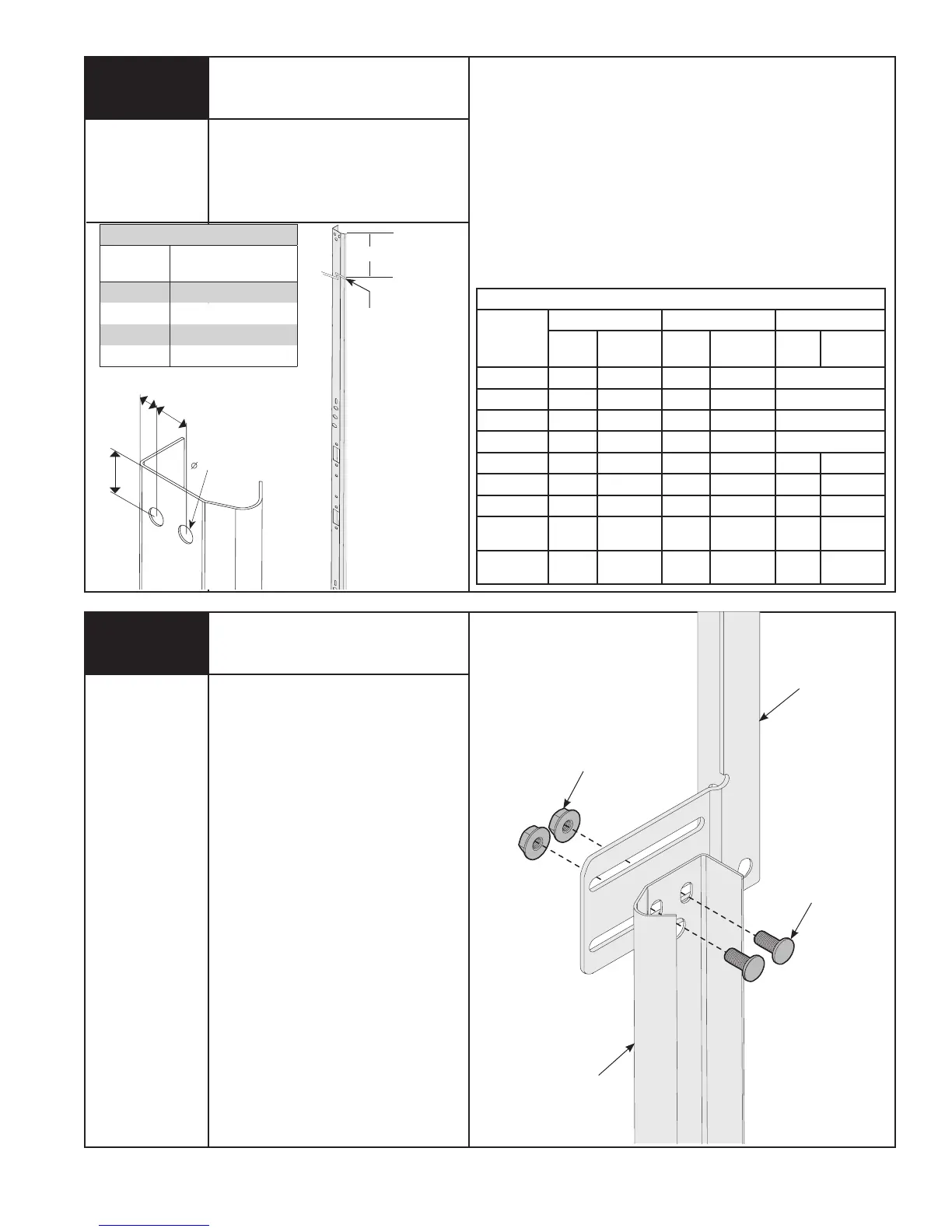

Cutting Vertical Track and
Installing Q.I. Jamb Brackets
Continued
Tape Measure
Hacksaw
Power Drill
5/16” Drill Bit
Horizontal
track
Vertical Track Cutting Chart
Horizontal
Track Radius
Vertical Track Cut Length
10”, 12” Door Height Minus 10”
14” Door Height Minus 8”
3-1/2” LHR Door Height Minus 15”
6-1/2” LHR Door Height Minus 12”
Cut vertical
track here
Vertical Track Cut Length
1/2”
5/8”
5/16”
5/8”
Attaching Fully Adjustable
Flagangle to Vertical Track
None
Hand tighten the flagangle to the
vertical track using (2) 1/4”- 20 x 5/8”
carriage bolts and (2) 1/4”- 20 flange
hex nuts.
Repeat for opposite side.
The flange nuts will be tightened after
flagangle spacing is complete (Step 11).
(2) 1/4”- 20 X 5/8”
CARRIAGE BOLTS
(2) 1/4”- 20
FLANGE HEX NUTS
FULLY
ADJUSTABLE
FLAGANGLE
VERTICAL
TRACK
2
JAMB BRACKET SCHEDULE
DOOR
HEIGHT
1ST SET 2ND SET 3RD SET
JAMB
BKT
POSITION
JAMB
BKT
POSITION
JAMB
BKT
POSITION
6’0” QIJB-3 MIDDLE QIJB-6 TOP NOT APPLICABLE
6’5” QIJB-3 MIDDLE QIJB-5 BOTTOM NOT APPLICABLE
6’8” QIJB-3 MIDDLE QIJB-5 BOTTOM NOT APPLICABLE
7’0” QIJB-3 MIDDLE QIJB-5 BOTTOM NOT APPLICABLE
7’3” QIJB-3 MIDDLE QIJB-5 MIDDLE QIJB-6 MIDDLE
7’6” QIJB-3 MIDDLE QIJB-5 MIDDLE QIJB-6 MIDDLE
7’9” QIJB-3 MIDDLE QIJB-5 MIDDLE QIJB-6 MIDDLE
8’0”
(4 SECTION)
QIJB-3 MIDDLE QIJB-5 MIDDLE QIJB-6 MIDDLE
8’0”
(5 SECTION)
QIJB-3 BOTTOM QIJB-5 BOTTOM QIJB-6 BOTTOM
