Wayne-Dalton 9600 Series User Manual

9
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
INSTALLATION

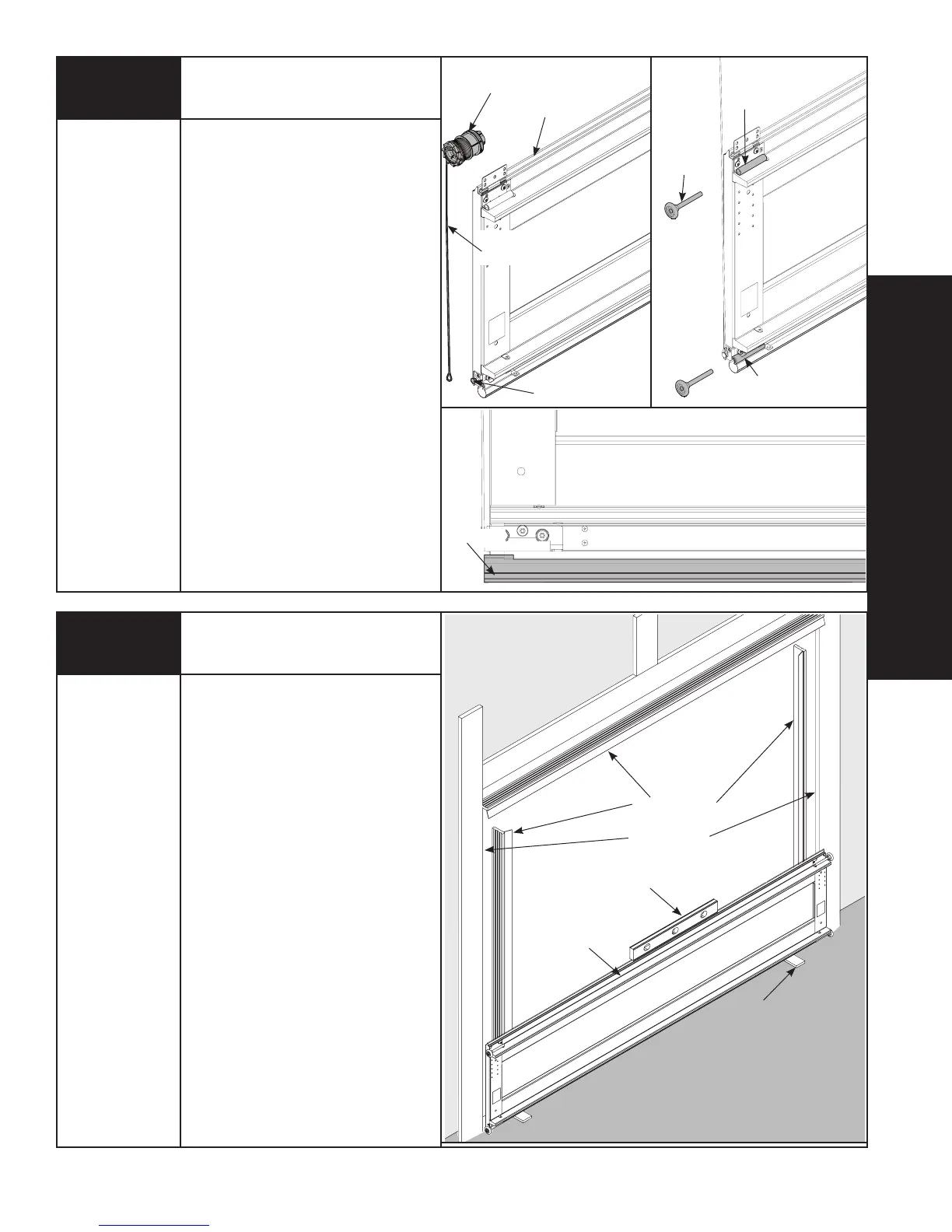

Counterbalance Drums
IMPORTANT: RIGHT AND LEFT HAND
IS ALWAYS DETERMINED FROM INSIDE
THE BUILDING LOOKING OUT.
NOTE: For door section identification
see page 4.
TorqueMaster
®
Plus counterbalance
drums are marked right and left hand.
Uncoil the counterbalance cables and
make sure you place the right hand
cable loop on the right hand milford
pin and place the left hand cable loop
on the left hand milford pin. Insert a
roller into bottom bracket of the bottom
section and insert another roller at
#1 end hinge at the top of the bottom
section. Repeat for other side.
None
ROLLERS
#1 END HINGE
(HINGE TUBE)
BOTTOM BRACKET
BOTTOM
SECTION
ASTRAGAL
4
BOTTOM SECTION
MILFORD PIN
LEFT HAND TORQUEMASTER
®
PLUS COUNTER BALANCE DRUM
COUNTERBALANCE
CABLE
3
Bottom Section
Center the bottom section in the door
opening. Level section using wooden
shims under the bottom astragal if
necessary.
Level
BOTTOM
SECTION
DOOR OPENING
WEATHER SEAL
WOODEN SHIMS
(IF NECESSARY)
LEVEL
