3

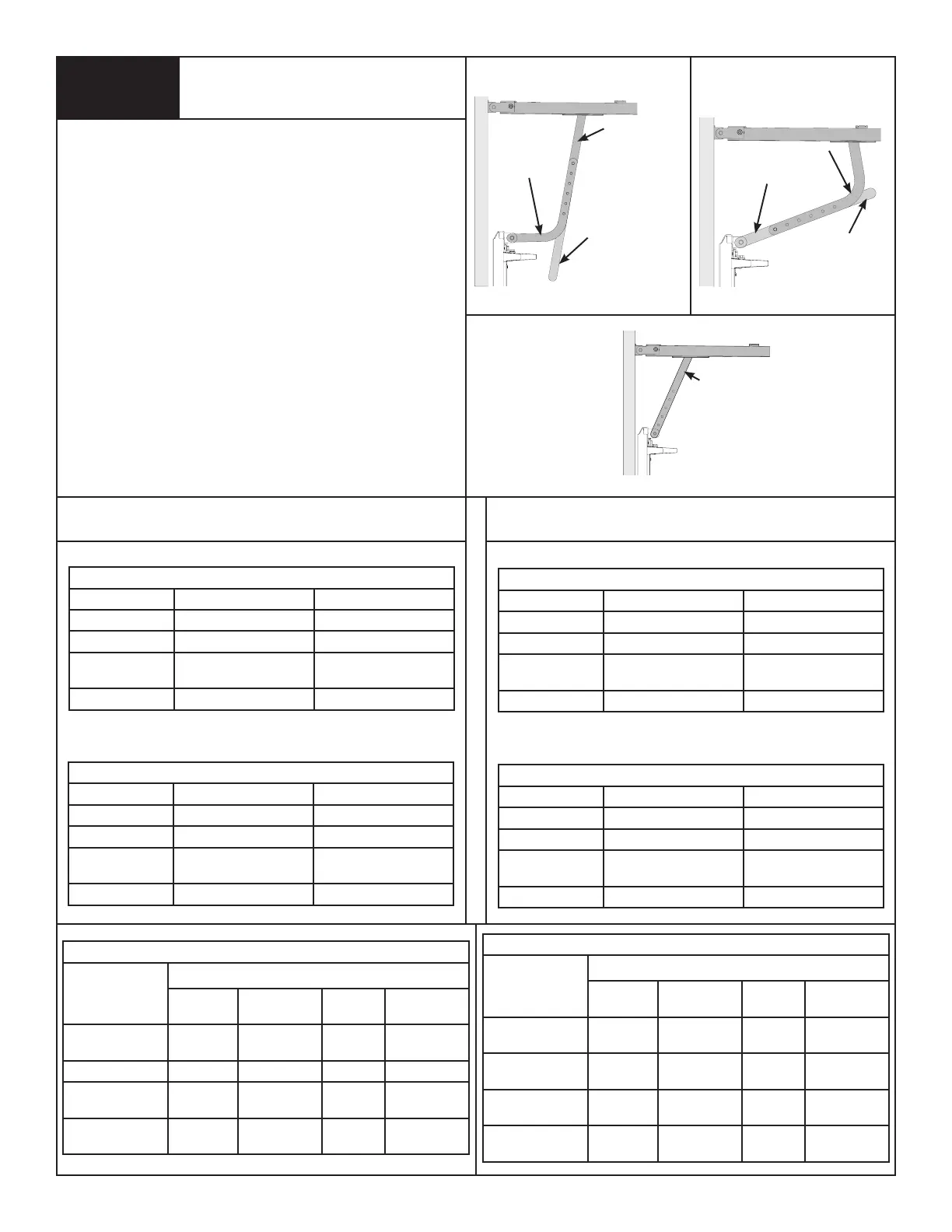

Using the OPERATOR HOOK-UP CHARTS, refer to referenced
illustrations in FIG. 4.1 through FIG. 4.3 for correct arm hook-up
from trolley to operator bracket.
NOTE: Refer to your operator manual for specific details on how
to assembly the curved and straight arm, as shown in FIG. 4.1
through FIG. 4.3.
NOTE: Depending on your setup, you may have to cut straight arm
to accomplish trolley settings, as shown in FIG. 4.1 through FIG.
4.3.
FIG. 4.2
STRAIGHT ARM
CURVED ARM
CUT STRAIGHT ARM
TO ACCOMPLISH
TROLLEY SETTING
FIG. 4.1
CUT STRAIGHT ARM
TO ACCOMPLISH
TROLLEY SETTING
CURVED
ARM
STRAIGHT ARM
FIG. 4.3
STRAIGHT
ARM
OPERATOR HOOK-UP CHART FOR LOW HEADROOM
OPERATOR MODELS
TYPE OF ARM BEING USED
PREFERRED
HOOKUP
REF. ILLUSTRA-
TIONS ABOVE
OPTIONAL
HOOKUP
REF. ILLUSTRA-
TIONS ABOVE
QUANTUM/CLASSIC
CURVED /
STRAIGHT
FIG. 4.2 STRAIGHT FIG. 4.3
LINEAR STRAIGHT FIG. 4.3 N/A N/A
LIFTMASTER
(SEARS)
CURVED /
STRAIGHT
FIG. 4.2 STRAIGHT FIG. 4.3
GENIE
CURVED /
STRAIGHT
FIG. 4.2 STRAIGHT FIG. 4.3
OPERATOR HOOK-UP CHART FOR LOW HEADROOM
OPERATOR MODELS
TYPE OF ARM BEING USED
PREFERRED
HOOKUP
REF. ILLUSTRA-
TIONS ABOVE
OPTIONAL
HOOKUP
REF. ILLUSTRA-
TIONS ABOVE
QUANTUM/CLASSIC
CURVED /
STRAIGHT
FIG. 4.2 STRAIGHT FIG. 4.3
LINEAR
CURVED /
STRAIGHT
FIG. 4.2 STRAIGHT FIG. 4.3
LIFTMASTER
(SEARS)
CURVED /
STRAIGHT
FIG. 4.2 STRAIGHT FIG. 4.3
GENIE
CURVED /
STRAIGHT
FIG. 4.2 STRAIGHT FIG. 4.3
OPERATOR HOOK-UP CHART STANDARD LIFT FOR 14” AND 15” RADIUS
OPERATOR MODELS TYPE OF ARM BEING USED REF. ILLUSTRATIONS ABOVE
QUANTUM/CLASSIC CURVED / STRAIGHT FIG. 4.2
LINEAR STRAIGHT / CURVED FIG. 4.1
LIFTMASTER
(SEARS)
CURVED / STRAIGHT FIG. 4.2
GENIE CURVED / STRAIGHT FIG. 4.2
TORQUEMASTER
®
AND EXTENSION SPRINGS
OPERATOR HOOK-UP CHART STANDARD LIFT FOR 10” AND 12” RADIUS
OPERATOR MODELS TYPE OF ARM BEING USED REF. ILLUSTRATIONS ABOVE
QUANTUM/CLASSIC STRAIGHT / CURVED FIG. 4.1
LINEAR STRAIGHT / CURVED FIG. 4.1
LIFTMASTER
(SEARS)
CURVED / STRAIGHT FIG. 4.2
GENIE STRAIGHT FIG. 4.3
OPERATOR HOOK-UP CHART STANDARD LIFT FOR 14” AND 15” RADIUS
OPERATOR MODELS TYPE OF ARM BEING USED REF. ILLUSTRATIONS ABOVE
QUANTUM/CLASSIC STRAIGHT / CURVED FIG. 4.1
LINEAR STRAIGHT / CURVED FIG. 4.1
LIFTMASTER
(SEARS)
CURVED / STRAIGHT FIG. 4.2
GENIE CURVED / STRAIGHT FIG. 4.2
TORSION SPRINGS
OPERATOR HOOK-UP CHART STANDARD LIFT FOR 10” AND 12” RADIUS
OPERATOR MODELS TYPE OF ARM BEING USED REF. ILLUSTRATIONS ABOVE
QUANTUM/CLASSIC CURVED / STRAIGHT FIG. 4.2
LINEAR STRAIGHT / CURVED FIG. 4.1
LIFTMASTER
(SEARS)
CURVED / STRAIGHT FIG. 4.2
GENIE CURVED / STRAIGHT FIG. 4.2
OPERATOR HOOK-UP
4
