16
WIRING DIAGRAMS

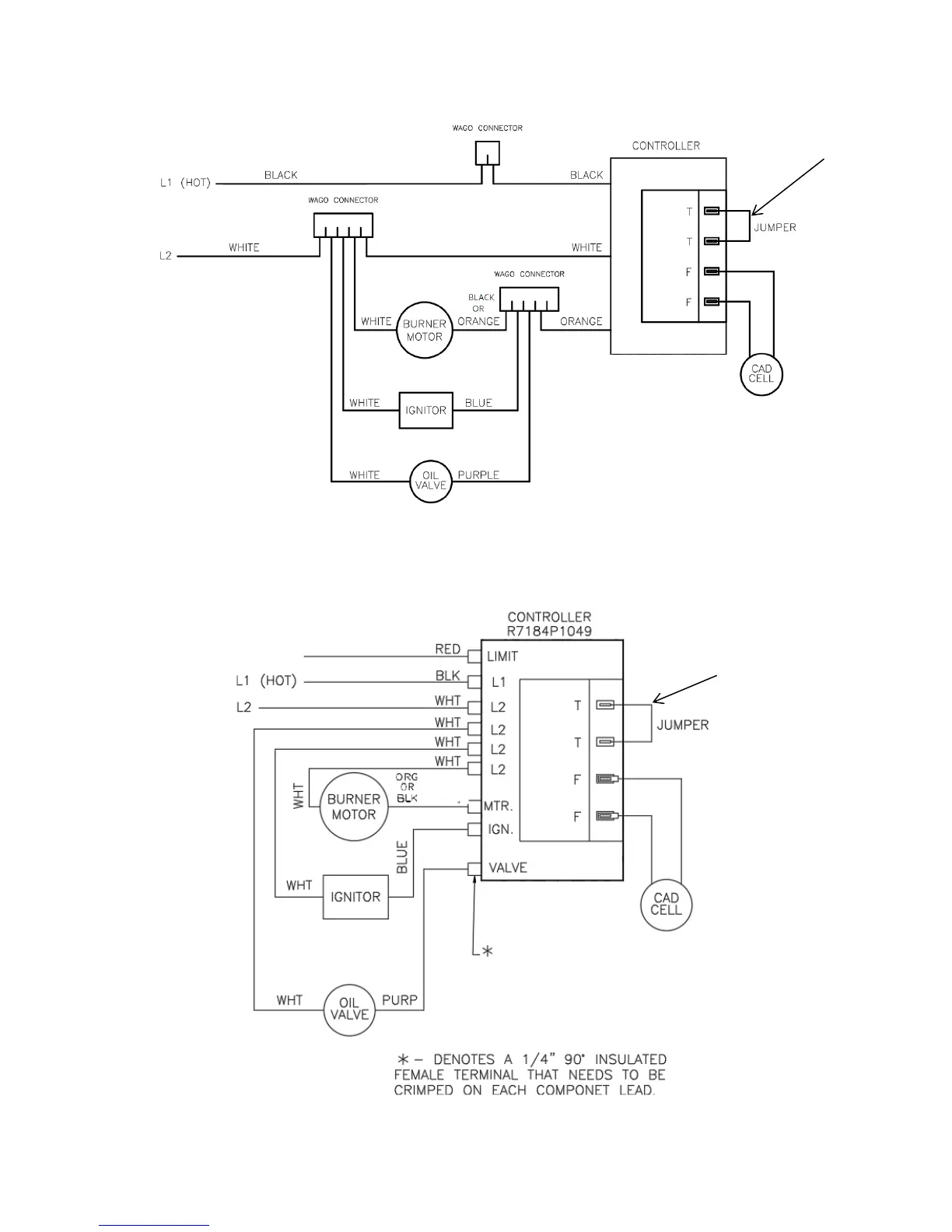

Figure 3- Wiring Diagram for 120V Honeywell R7284G & 230V Honeywell R8184G Controls
Figure 4- Wiring Diagram for 120V Honeywell R7284P Control
REMOVE JUMPER
TO USE
THERMOSTAT
TERMINALS
REMOVE JUMPER
TO USE
THERMOSTAT
TERMINALS
