7. Thread the nozzle into the nozzle adaptor finger tight, then tighten the nozzle securely with a 5/8” wrench, while using
a 3/4" backing wrench to hold the nozzle adapter. Do not over tighten. There is a brass stamp that reads “TOP” on the
nozzle adapter that should be orientated up (Figure 13).

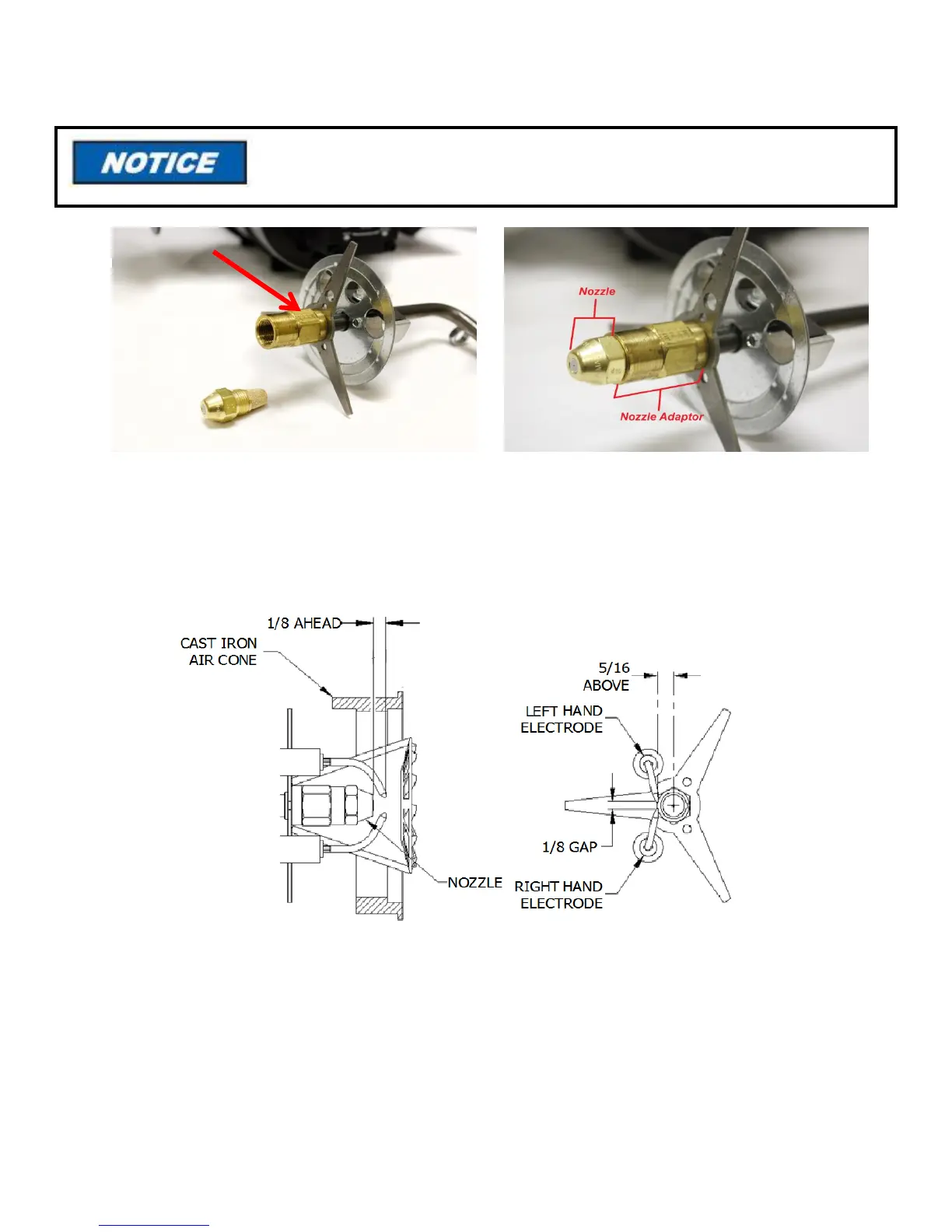

Figure 13 EH/EHASR Oil Gun Nozzle Installation (Flamelock and electrodes removed for
clarity).
8. Identify which burner model you have, then measure and verify that the electrode spacing is per Figure 14 or Figure
15 on page 27, if not correct to factory settings.
Figure 14–EH Electrode Positions, Factory settings
DO NOT touch the new nozzle’s filter or touch the face of the nozzle. Oil from
your fingers on either surface can adversely affect nozzle performance
