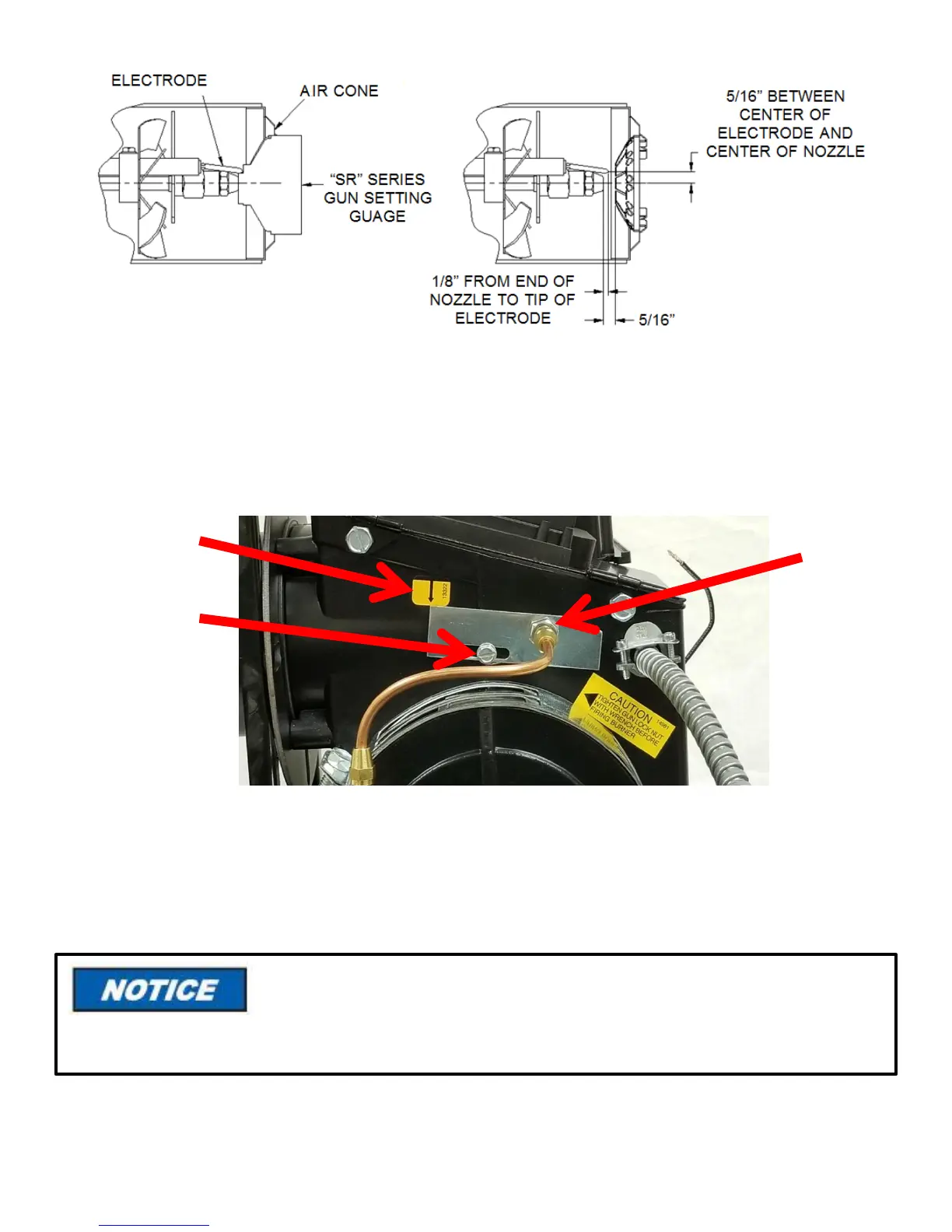

Figure 17– EHASR Gun Depth Settings
1. Identify which E burner model you have and set the gun depth accordingly.
2. To position the gun assembly forward or backwards, loosen the gun assembly 3/8-24 hex lock nut with a 9/16
inch wrench and the 5/16 inch hex slotted slot cover screw as shown in Figure 18.
Figure 18– Oil Gun Depth Adjustment
3. Once in the required position per Figure 16 and Figure 17, retighten the hex lock nut and slot cover screw,
move and align arrow decal with slot plate cover.
Close the ignition transformer and assure there is a positive spring contact with the brass
buss bars. Take care not to pinch the ignition transformer lead wires between the housing and cover plate. Reinstall
the igniter plate hold down clip and tighten the 5/16-18 hex slotted screw securely.
5/16 inch
Hex slotted screw
