WBOX Technologies 0E-HD4C1TB User Manual

Digital Video Recorder(DVR)
User Manual
2 Hard Disk
Issue V1.0 (2018-06-04)
5

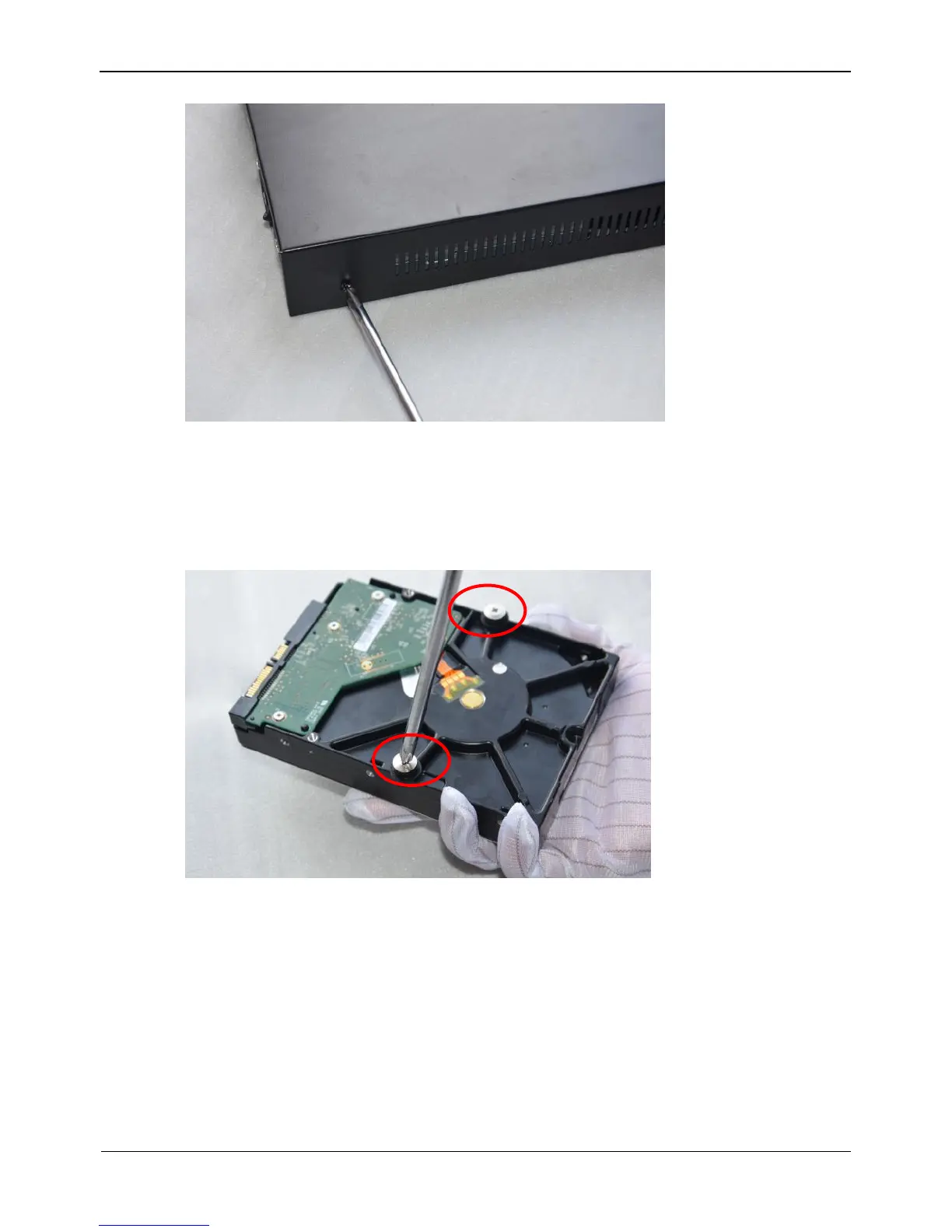

Figure 2-1 Removing the upper cover
Step 2 Take out the hard disk fixing screws and silicone cushion included in the accessory
package, route the fixing screw through the silicone cushion, and install it to the screw
holes, as shown in Figure 2-2.
Figure 2-2 Installing the hard disk fixing screw
Step 3 Route the hard disk fixing screws through the holes on the base, push the hard disk to
the appropriate position according to the direction of arrow, as shown in Figure 2-3.

WBOX Technologies 0E-HD4C1TB Specifications

General

Brand	WBOX Technologies
Model	0E-HD4C1TB
Category	DVR
Language	English
