WBOX Technologies 0E-HD4C1TB User Manual

Digital Video Recorder(DVR)
User Manual
3 Operation Instruction
Issue V1.0 (2018-06-04)
9

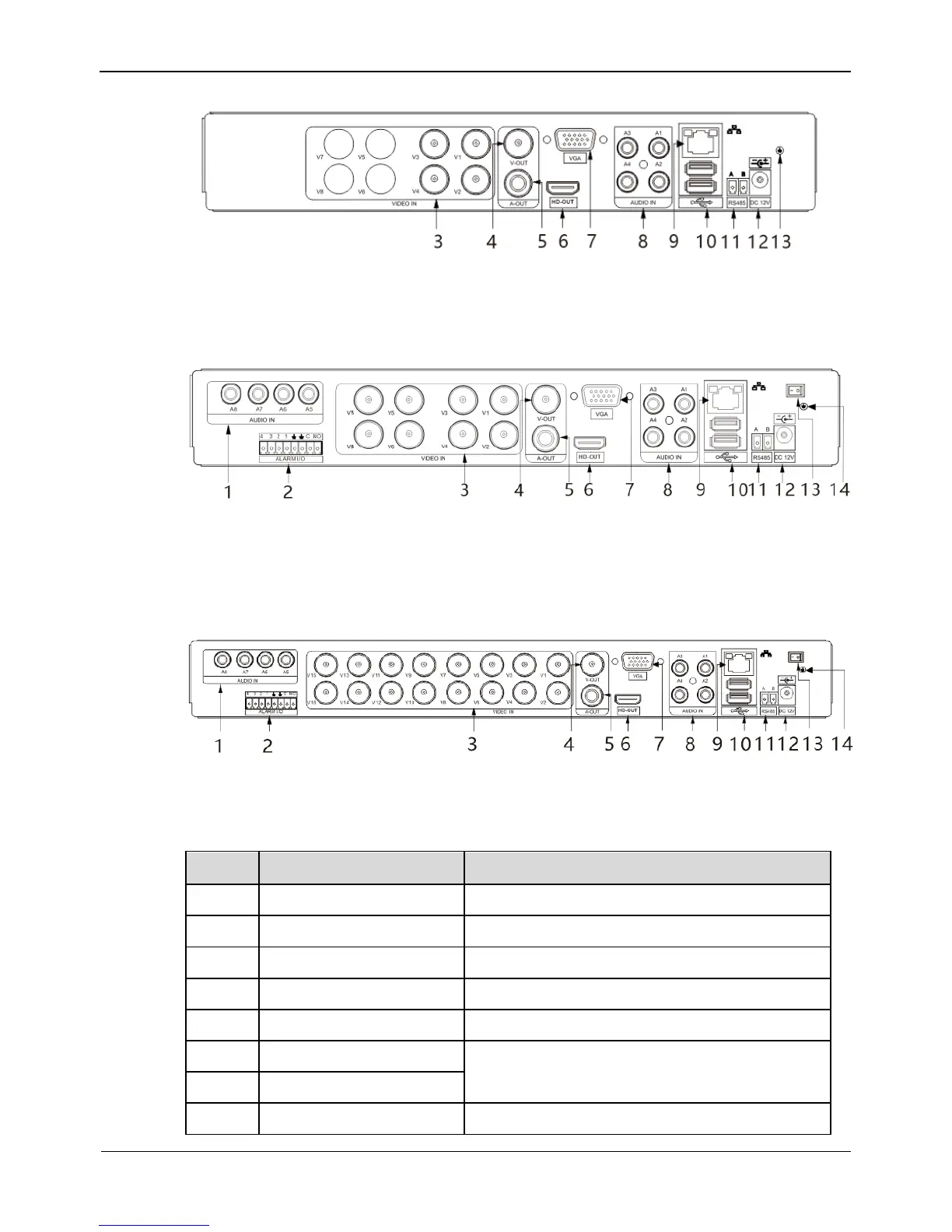

Figure 3-2 Rear panel of 0E-HD4C1TB
Figure 3-3 shows the rear panel of 0E-HD8C2TB and the interfaces on it.
Figure 3-3 Rear panel of 0E-HD8C2TB
Figure 3-3 shows the rear panel of 0E-HD16C2TB and the interfaces on it.
Figure 3-4 Rear panel of 0E-HD16C2TB
Table 3-2 shows the description of rear panel
Table 3-2 Elements of the real panel
NO.
Name
Description
1
AUDIO IN
Audio Input
2
ALARM I/O
Alarm Input/Output
3
VIDEO IN
Video input
4
CVBS
CVBS output interface
5
A-OUT
Audio output
6
HD-OUT
Video output interface
7
VGA
8
AUDIO IN
Audio Input
