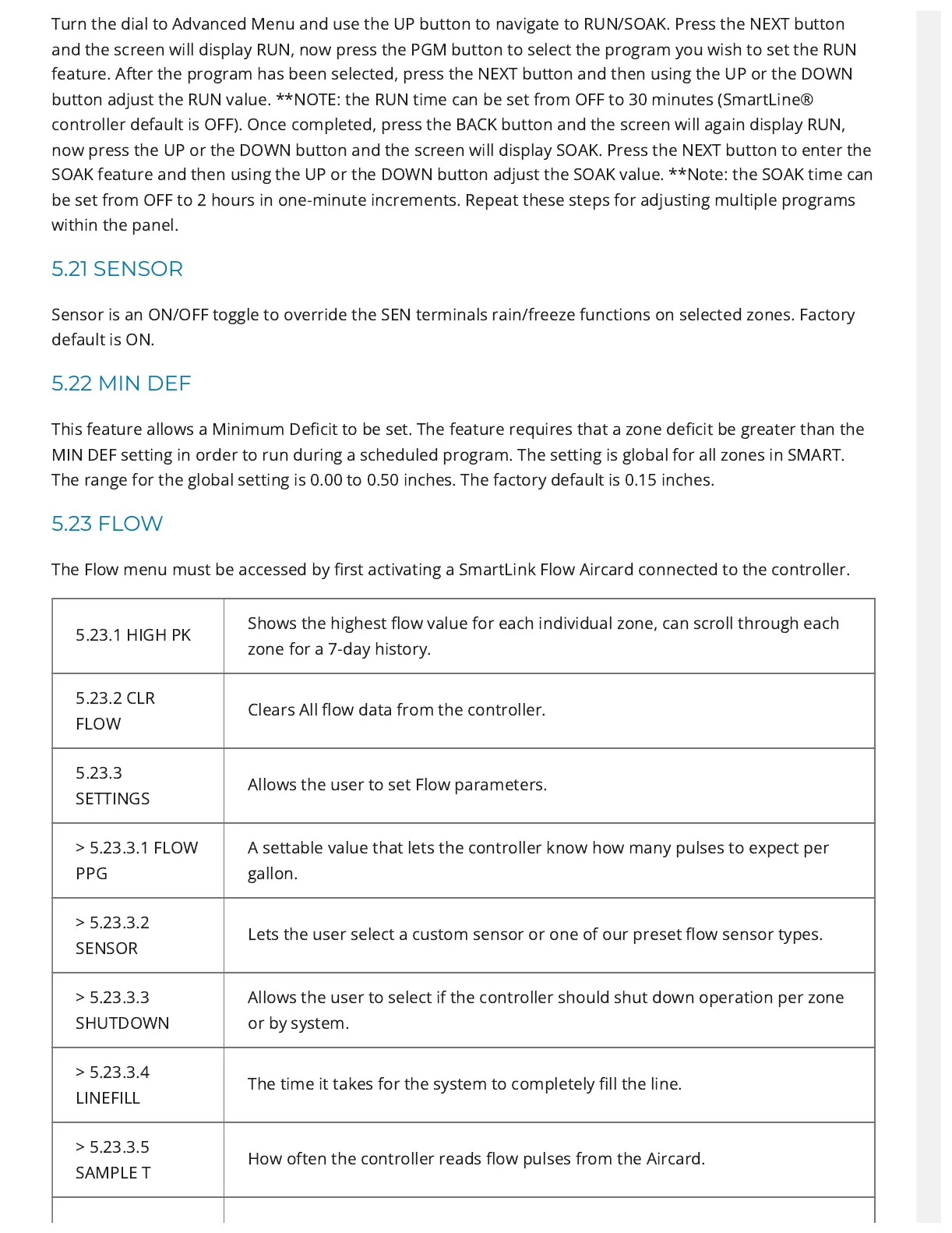

Turn the dial to Advanced Menu and use the UP button to navigate to RUN/SOAK. Press the NEXT button
and the screen will display RUN, now press the PGM button to select the program you wish to set the RUN
feature. After the program has been selected, press the NEXT button and then using the UP or the DOWN
button adjust the RUN value. **NOTE: the RUN time can be set from OFF to 30 minutes (SmartLine®
controller default is OFF). Once completed, press the BACK button and the screen will again display RUN,
now press the UP or the DOWN button and the screen will display SOAK. Press the NEXT button to enter the
SOAK feature and then using the UP or the DOWN button adjust the SOAK value. **Note: the SOAK time can
be set from OFF to 2 hours in one-minute increments. Repeat these steps for adjusting multiple programs
within the panel.
5.21 SENSOR
Sensor is an ON/OFF toggle to override the SEN terminals rain/freeze functions on selected zones. Factory
default is ON.
5.22 MIN DEF
This feature allows a Minimum Decit to be set. The feature requires that a zone decit be greater than the
MIN DEF setting in order to run during a scheduled program. The setting is global for all zones in SMART.
The range for the global setting is 0.00 to 0.50 inches. The factory default is 0.15 inches.
5.23 FLOW
The Flow menu must be accessed by rst activating a SmartLink Flow Aircard connected to the controller.
5.23.1 HIGH PK
Shows the highest ow value for each individual zone, can scroll through each
zone for a 7-day history.
5.23.2 CLR
FLOW
Clears All ow data from the controller.
5.23.3
SETTINGS
Allows the user to set Flow parameters.
> 5.23.3.1 FLOW
PPG
A settable value that lets the controller know how many pulses to expect per
gallon.
> 5.23.3.2
SENSOR
Lets the user select a custom sensor or one of our preset ow sensor types.
> 5.23.3.3
SHUTDOWN
Allows the user to select if the controller should shut down operation per zone
or by system.
> 5.23.3.4
LINEFILL
The time it takes for the system to completely ll the line.
> 5.23.3.5
SAMPLE T
How often the controller reads ow pulses from the Aircard.
