Kiev Mercedes Sprinter
NOTE: Due to vehicle build variations, this
image may not be representative.

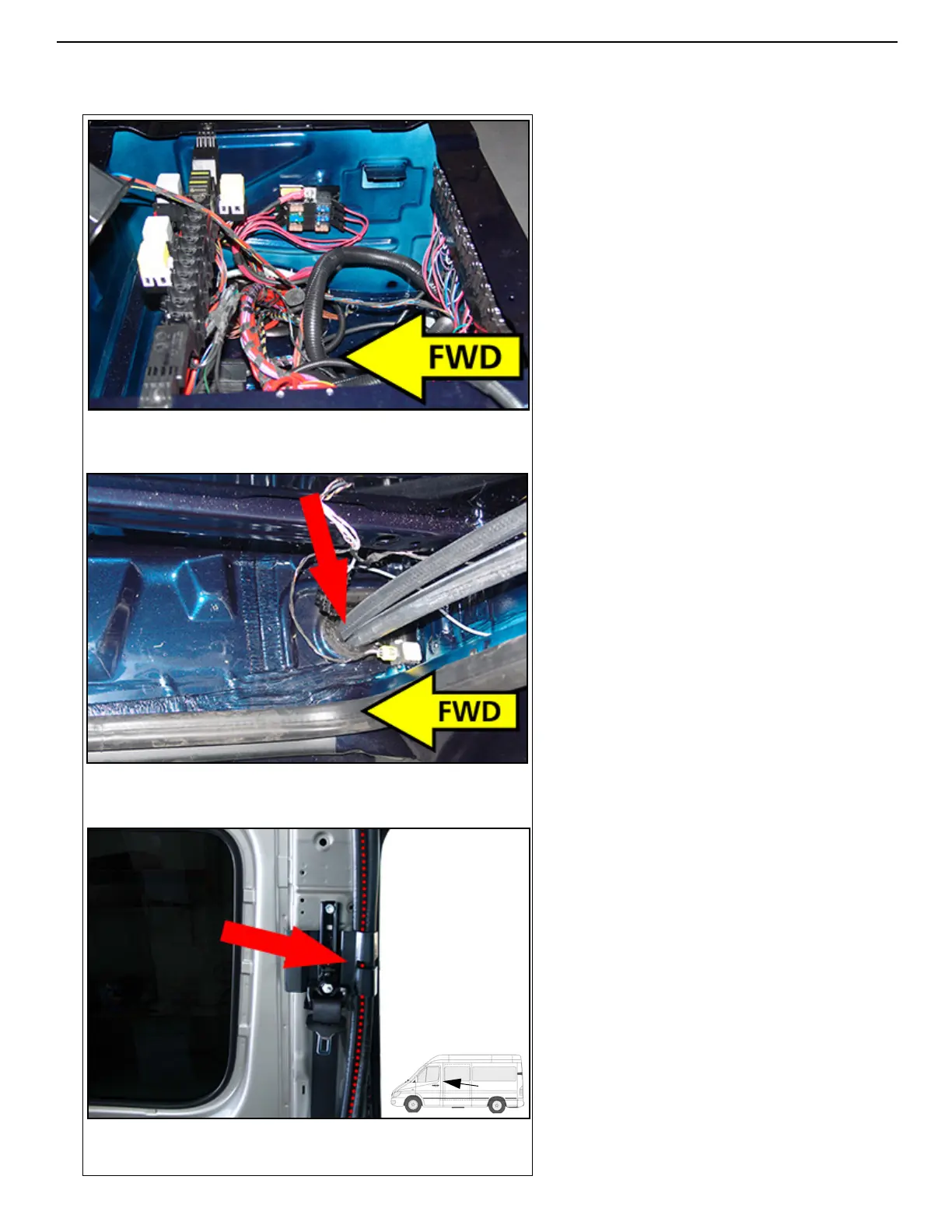

36. Using the supplied 7.5 amp fuse and fuse
holder, connect the pink wire to an ignition-
switched circuit under the driver’s seat.
37. Pass the following harness legs through the
hole drilled in the driver’s step well:
• Coolant pump
• A/C compressor
• Condenser fans
• High-pressure switch
38. Route the rest of the wiring up the b-pillar,
securing as necessary.
