Webasto 5011764 - A;C Hose Installation

18
Kiev Mercedes Sprinter
A/C Hose Installation

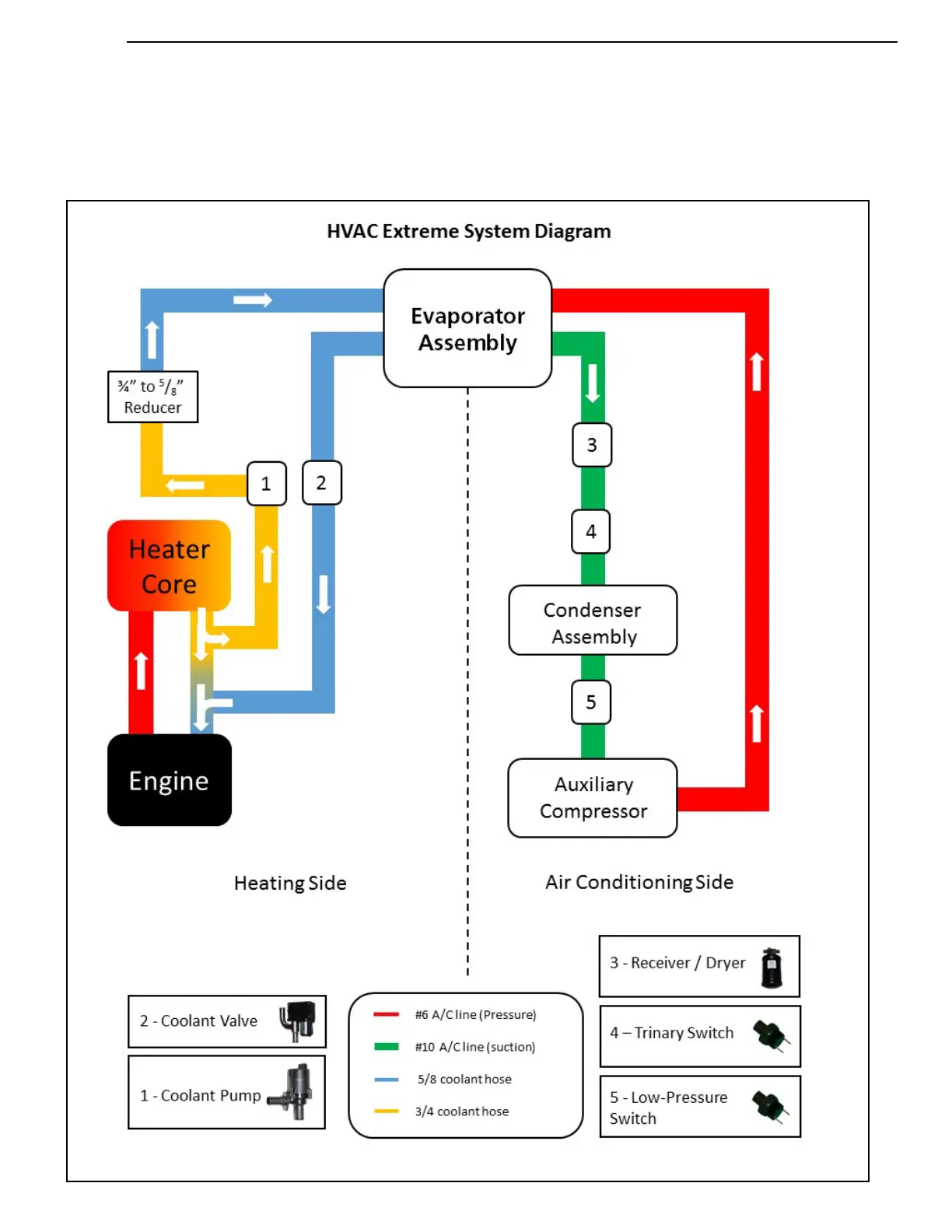

NOTE: The following diagram is intended to show hose sizes and basic connections only.
Refer to the individual steps for additional information.
NOTE: Route hoses in a location/manner that protects them from heat, moving parts, pinch-points, etc.
