22
Kiev Mercedes Sprinter

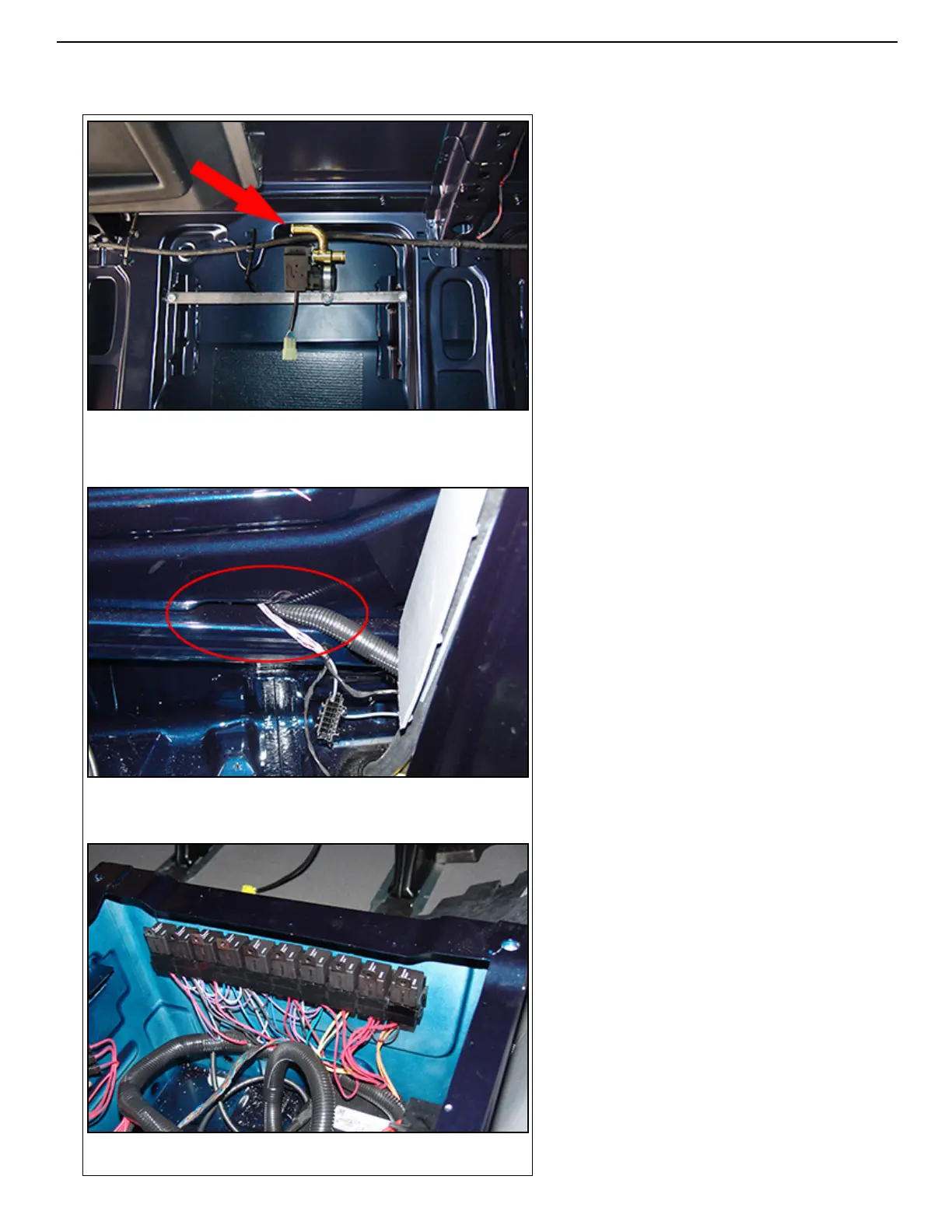

30. Route the 5/8 in. coolant hose from the inlet
side of the coolant valve to the area where
the Kiev unit will be located. Leave enough
hose to connect to the Kiev unit.
Wiring Installation
31. Unbolt the driver’s seat base from the vehicle
and raise the seat enough to pass the
following harness legs into the area under the
driver’s seat:
• Relay bar
• Fuse block
• Positive cable
• Negative cable
• Engine ON signal wire
Re-install the driver’s seat base.
32. Attach the relay bar under the driver’s seat.
