11
Mercedes Sprinter Kiev

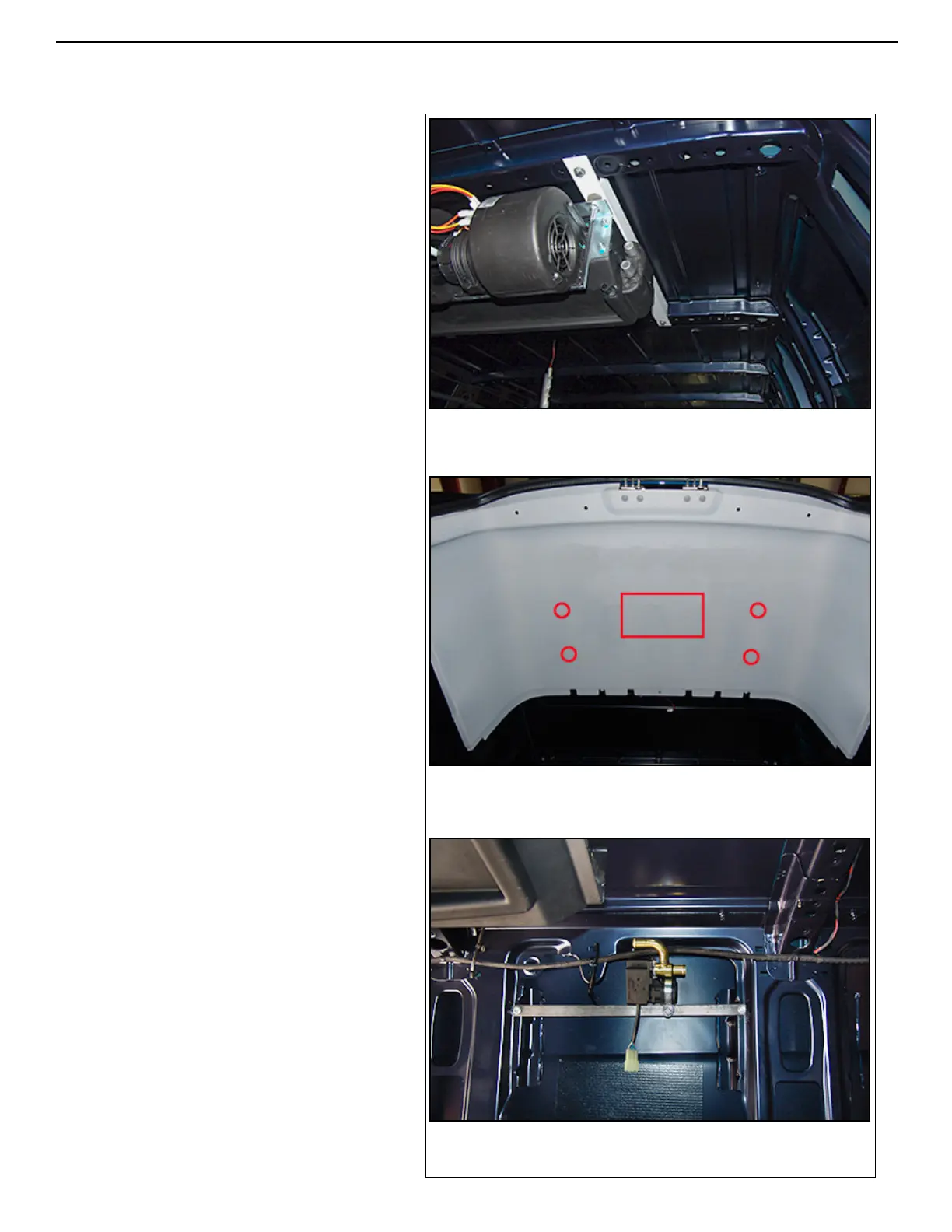

7. Install the Kiev evaporator assembly. After
verifying the positioning, remove the Kiev
evaporator, leaving the brackets and spacers
in place.
8. After temporarily installing the headliner,
mark and cut the holes for the evaporator
assembly mounts (X4) and the hose and
harness pass-through (X1). The hose and
harness pass-through hole should be above
the Kiev unit so it is concealed by the trim
panel that may be used. Remove the
headliner.
Kit Components
9. Fabricate a bracket and install the coolant
valve in the upper left corner of the vehicle.
